3RQ305 Series
Manufacturer: Siemens
Beta
⌘K
RELAY GEN PURPOSE SPST 5A 24V
| Part | Termination Style | Approval Agency | Features | Coil Type | Load - Max Switching | Relay Type | Mounting Type | Release Time | Contact Rating (Current) | Contact Form | Coil Voltage | Switching Voltage [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Coil Voltage [Max] | Coil Voltage [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

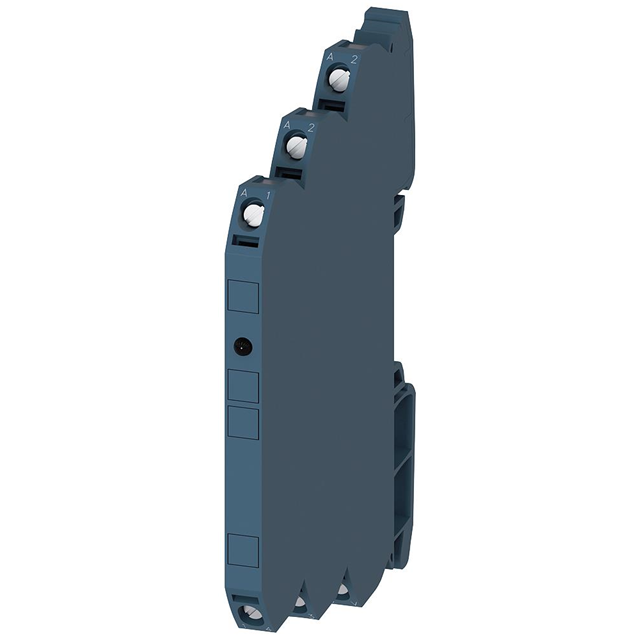

 Siemens | Screw Terminal | CCC CSA EAC UL | Lighted Indicator | Non Latching | 150 W | General Purpose | DIN Rail | 0.3 ms | 5 A | SPST-NO (1 Form A) | 24 VDC | 30 VDC | -25 °C | 60 °C | |||

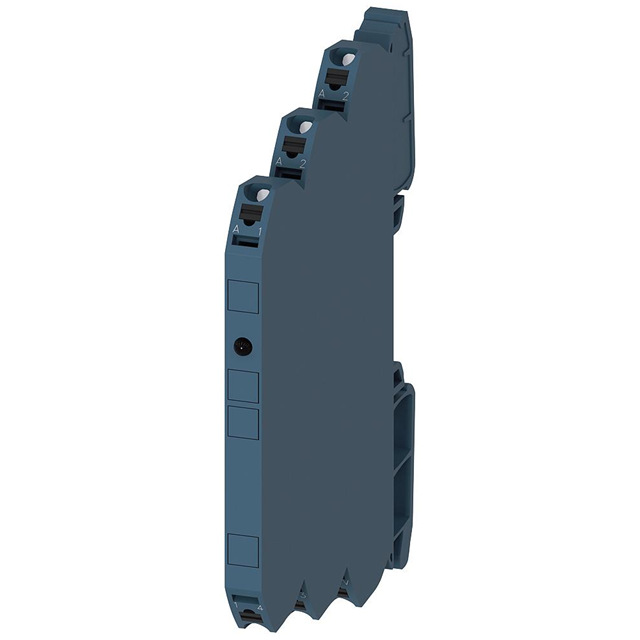

 Siemens | Spring Terminal | CCC CSA EAC UL | Lighted Indicator | Non Latching | 150 W | General Purpose | DIN Rail | 0.3 ms | 5 A | SPST-NO (1 Form A) | 24 VDC | 30 VDC | -25 °C | 60 °C | |||
Siemens | Spring Terminal | CCC CSA EAC UL | Lighted Indicator | Non Latching | 90 W | General Purpose | DIN Rail | 10 ms | 3 A | SPST-NO (1 Form A) | 30 VDC | -25 °C | 60 °C | 3 ms | 230 VAC | 110 VAC | |
Siemens | Screw Terminal | CCC CSA EAC UL | Lighted Indicator | Non Latching | 90 W | General Purpose | DIN Rail | 10 ms | 3 A | SPST-NO (1 Form A) | 30 VDC | -25 °C | 60 °C | 3 ms | 230 VAC | 110 VAC |
