967250 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

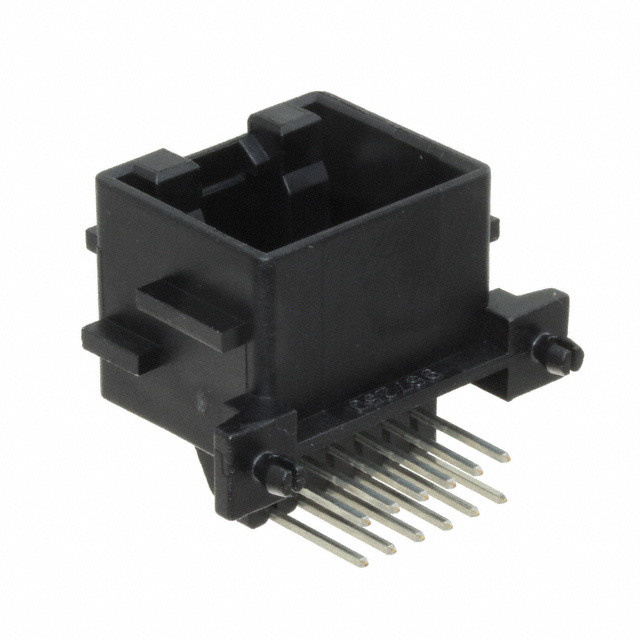

CONN HEADER R/A 12POS 2.54MM
| Part | Applications | Termination | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows [custom] | Insulation Material | Fastening Type | Mounting Type | Number of Positions | Connector Type | Shrouding | Features | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Style | Contact Shape | Contact Length - Post | Contact Length - Post | Contact Type | Contact Finish - Post | Insulation Color | Contact Material | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Automotive | Solder | All | 0.1 " | 2.54 mm | 85 °C | -40 C | 2 | Polybutylene Terephthalate (PBT) Glass Filled | Friction Lock | Right Angle Through Hole | 12 | Header | Shrouded - 4 Wall | Board Lock | 0.1 in | 2.54 mm | Board to Cable/Wire | Square | 0.13 " | 3.3 mm | Male Pin | Tin | Black | Copper Alloy | 0.772 in | 19.6 mm |
