RT0W71832 Series
Manufacturer: Amphenol Sine Systems Corp
Catalog

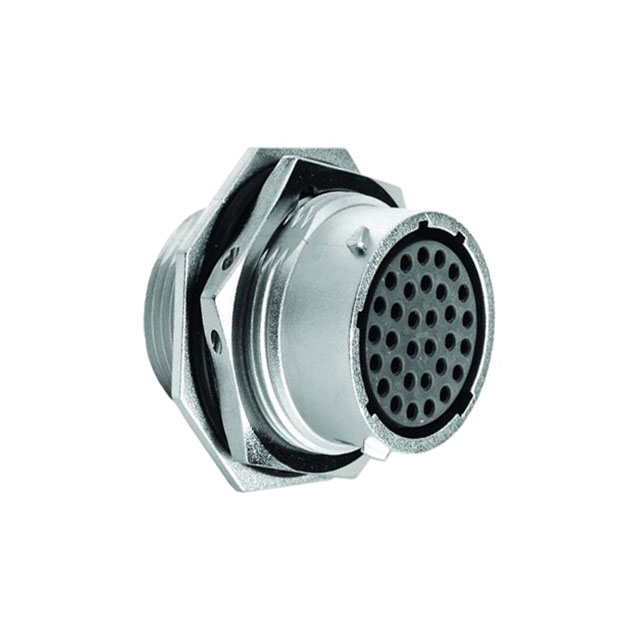

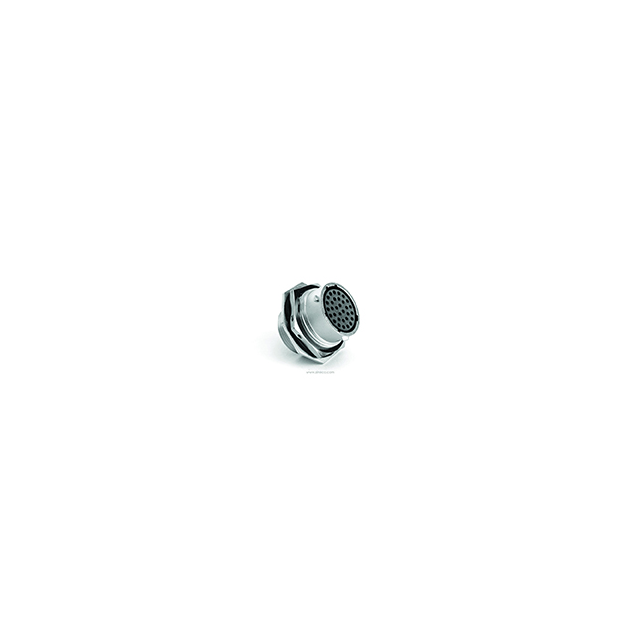

CONN RCPT HSG FMALE 32POS PNL MT
| Part | Housing Color | Shell Finish | Contact Shape | Ingress Protection | Note | Material Flammability Rating | Contact Size | Type | Mounting Feature | Shell Material | Connector Type | Insert Material | Orientation | Shielding | Fastening Type | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Features | Includes | Termination | Color | Primary Material | Voltage Rating | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Sine Systems Corp | Silver | Nickel | Circular | IP67 - Dust Tight Waterproof | Contacts Not Included | UL94 V-0 | 20 | For Female Sockets | Bulkhead - Front Side Nut | Zinc Alloy | Receptacle Housing | Thermoplastic | N | Shielded | Bayonet Lock | 32 | 18 | -40 °C | 105 ░C | Crimp | |||||||||
 Amphenol Sine Systems Corp | Silver | Nickel | Circular | IP67 - Dust Tight Waterproof | Contacts Not Included | UL94 V-0 | 20 | For Male Pins | Bulkhead - Front Side Nut | Zinc Alloy | Receptacle Housing | Thermoplastic | N | Shielded | Bayonet Lock | 32 | 18 | -40 °C | 105 ░C | Crimp | Backshell | 1 Connector 1 Nut 1 O-Ring | |||||||
 Amphenol Sine Systems Corp | Silver | Nickel | Circular | IP67 - Dust Tight Waterproof | Contacts Not Included | UL94 V-0 | 20 | For Male Pins | Bulkhead - Front Side Nut | Zinc Alloy | Receptacle Housing | Thermoplastic | N | Shielded | Bayonet Lock | 32 | 18 | -40 °C | 125 °C | Crimp | 1 Connector 1 Gasket 1 Nut 1 O-Ring | ||||||||
Amphenol Sine Systems Corp | |||||||||||||||||||||||||||||

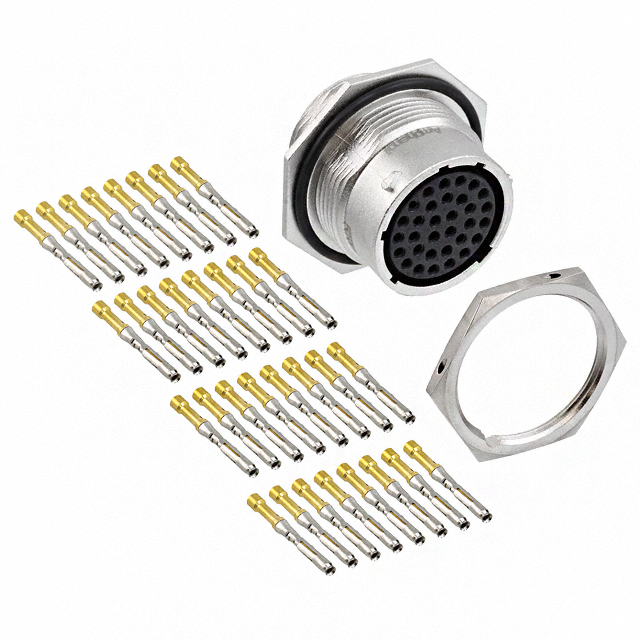

 Amphenol Sine Systems Corp | Nickel | IP67 - Dust Tight Waterproof | Bulkhead - Front Side Nut | Zinc Die Cast | Receptacle Female Sockets | N | Bayonet Lock | 32 | 18 | -40 °C | 105 ░C | Crimp | Silver | Metal | 150 VAC | 7.5 A | Flash | Gold | |||||||||||
 Amphenol Sine Systems Corp | Silver | Nickel | Circular | IP67 - Dust Tight Waterproof | Contacts Not Included | UL94 V-0 | 20 | For Female Sockets | Bulkhead - Front Side Nut | Zinc Alloy | Receptacle Housing | Thermoplastic | N | Shielded | Bayonet Lock | 32 | 18 | -40 °C | 125 °C | Crimp | 1 Connector 1 Gasket 1 Nut 1 O-Ring |
