207614 Series

Catalog

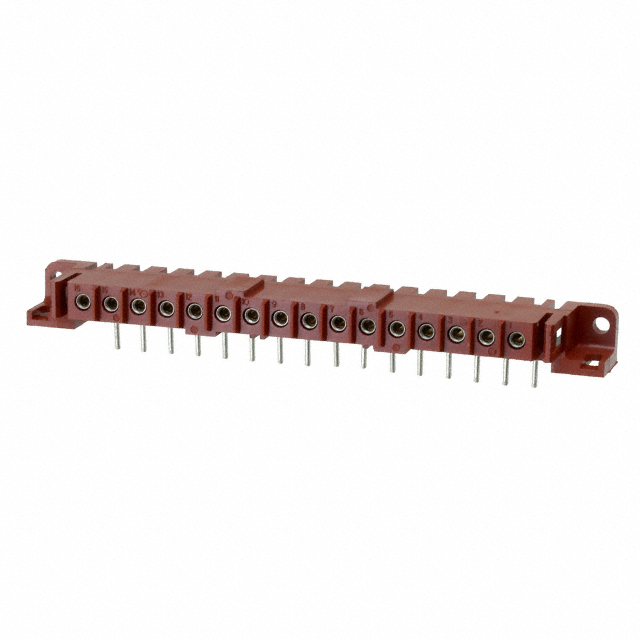

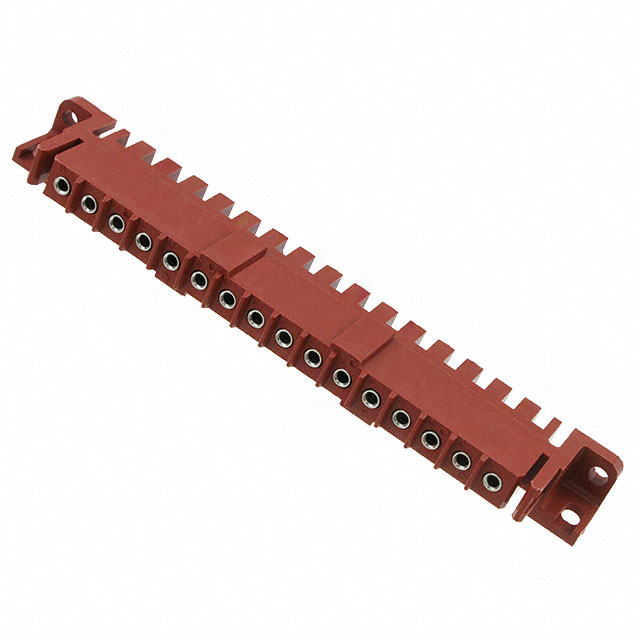

CONN HDR 16POS 0.197 TIN PCB R/A

Part	Contact Material	Material Flammability Rating	Style	Number of Positions Loaded	Voltage Rating	Number of Positions	Pitch - Mating	Pitch - Mating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Type	Features	Current Rating (Amps)	Contact Shape	Mounting Type	Contact Finish - Post	Termination	Number of Rows	Contact Finish - Mating
TE Connectivity Raychem Cable Protection 207614-6	Phosphor Bronze	UL94 V-0	Board to Cable/Wire	All	600 V	16	5 mm	0.197 "	Header	150 Áin	3.81 Ám	Thermoplastic	0.433 in	11 mm	130 °C	-55 °C	Red	150 Áin	3.81 Ám	Latch Holder	Female Socket	Mounting Flange	7.5 A	Circular	Through Hole Right Angle	Tin	Solder	1
TE Connectivity Raychem Cable Protection 207614-1	Phosphor Bronze	UL94 V-0	Board to Cable/Wire	All	600 V	16	5 mm	0.197 "	Header	150 Áin	3.81 Ám	Thermoplastic	0.433 in	11 mm	130 °C	-55 °C	Red	150 Áin	3.81 Ám	Latch Holder	Female Socket	Mounting Flange	7.5 A	Circular	Through Hole Right Angle	Tin-Lead	Solder	1	Tin-Lead
TE Connectivity Raychem Cable Protection 207614-3	Phosphor Bronze	UL94 V-0	Board to Cable/Wire	All	600 V	16	5 mm	0.197 "	Header	150 Áin	3.81 Ám	Thermoplastic	0.433 in	11 mm	130 °C	-55 °C	Red	30 Áin	0.76 Ám	Latch Holder	Female Socket	Mounting Flange	7.5 A	Circular	Through Hole Right Angle	Tin-Lead	Solder	1	Gold
