M2012ES Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Voltage Rating - AC	Bushing Thread	Termination Style	Actuator Length [x]	Features	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Illumination	Panel Cutout Dimensions [diameter]	Circuit	Switch Function	Voltage Rating - DC	Current Rating (Amps)

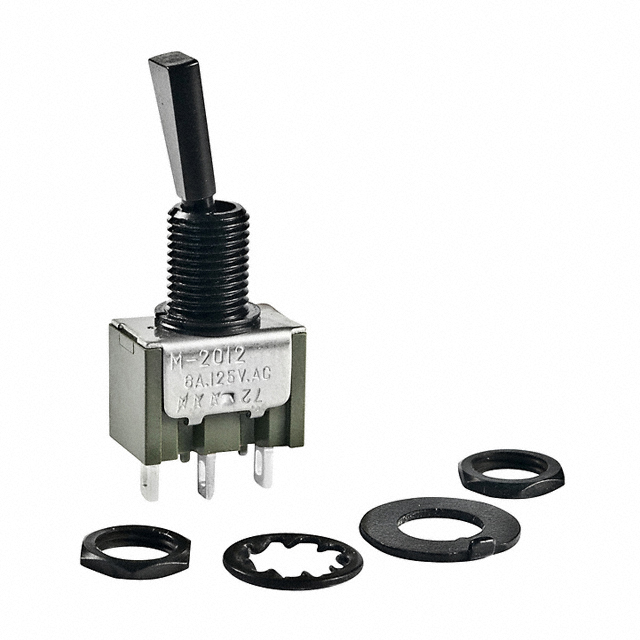

NKK Switches M2012ES1W01/3	25000 Steps	Brass	125 V	1/4-40	Solder Lug	11.4 mm	Black Actuator	Panel Mount	85 °C	-30 ░C	Flatted	Non-Illuminated	6.5 mm	SPDT	On-On	30 V	4 A 6 A

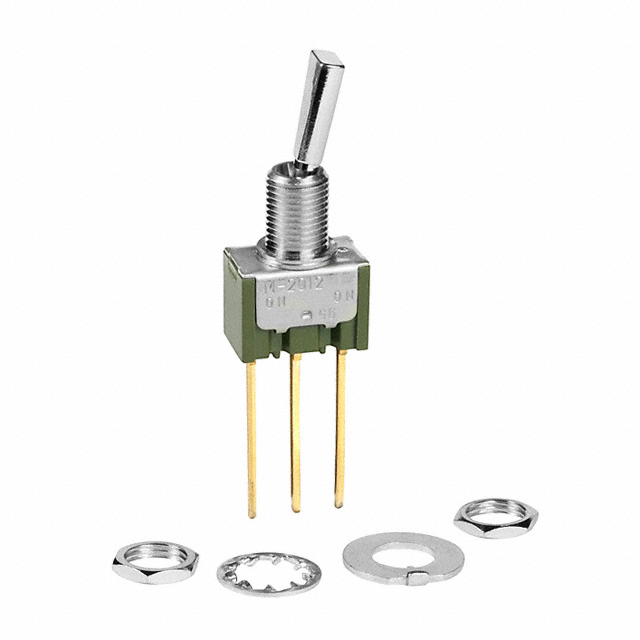

NKK Switches M2012ES1G06	50000 Cycles	Brass Chrome Plated	28 V	1/4-40	Wire Wrap	11.4 mm	Epoxy Sealed Terminals	Panel Mount	85 °C	-30 ░C	Flatted	Non-Illuminated	6.5 mm	SPDT	On-On	28 V	0.4 VA

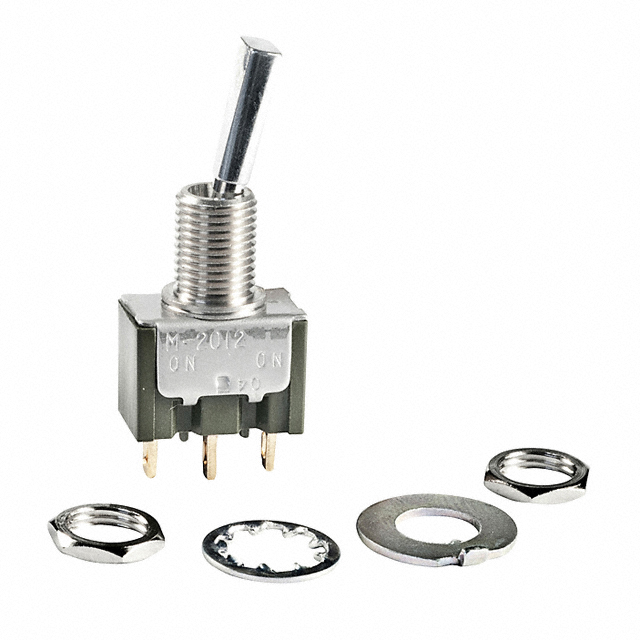

NKK Switches M2012ES1G01	50000 Cycles	Brass Chrome Plated	28 V	1/4-40	Solder Lug	11.4 mm	Epoxy Sealed Terminals	Panel Mount	85 °C	-30 ░C	Flatted	Non-Illuminated	6.5 mm	SPDT	On-On	28 V	0.4 VA
NKK Switches M2012ES1W03	25000 Steps	Brass Chrome Plated	125 V	1/4-40	PC Pin	11.4 mm	Epoxy Sealed Terminals	Panel Mount	85 °C	-30 ░C	Flatted	Non-Illuminated	6.5 mm	SPDT	On-On	30 V	4 A 6 A
NKK Switches M2012ES1W01/CUL	25000 Steps	Brass Chrome Plated	125 V	1/4-40	Solder Lug	11.4 mm	Epoxy Sealed Terminals	Panel Mount	85 °C	-30 ░C	Flatted	Non-Illuminated	6.5 mm	SPDT	On-On	30 V	4 A 6 A

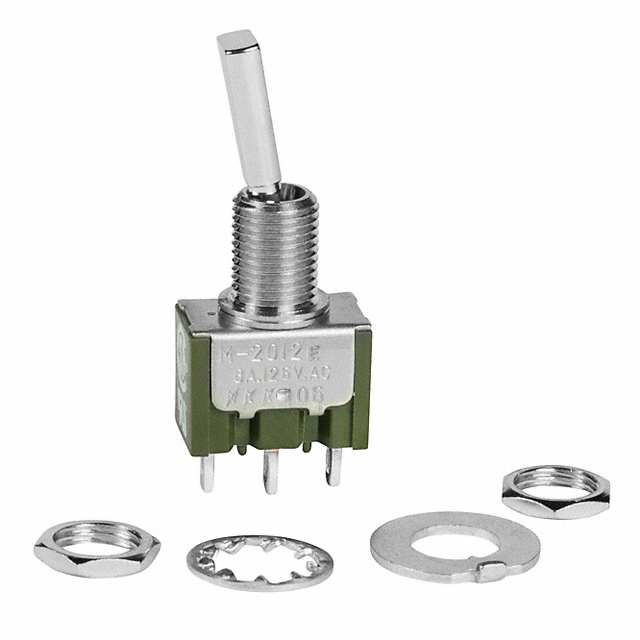

NKK Switches M2012ES1W01/U	25000 Steps	Brass Chrome Plated	125 V	1/4-40	Solder Lug	11.4 mm	Epoxy Sealed Terminals	Panel Mount	85 °C	-30 ░C	Flatted	Non-Illuminated	6.5 mm	SPDT	On-On	30 V	4 A 6 A

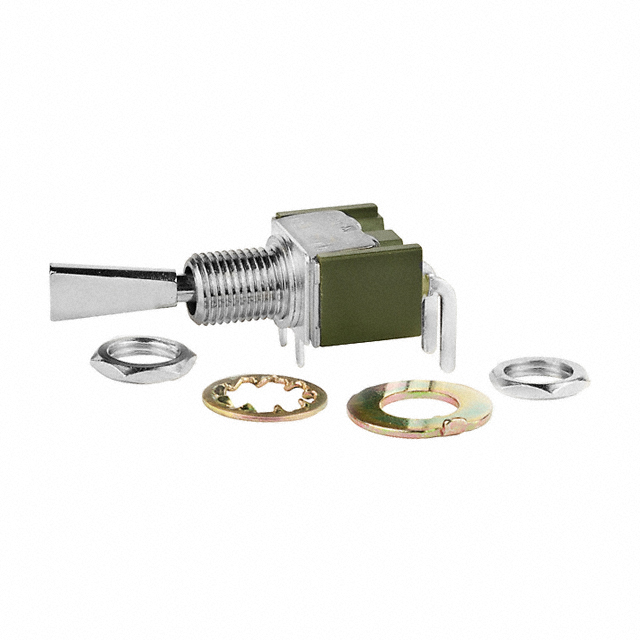

NKK Switches M2012ES1W30	25000 Steps	Brass Chrome Plated	125 V	1/4-40	PC Pin	11.4 mm	Epoxy Sealed Terminals	Panel Mount Right Angle	85 °C	-30 ░C	Flatted	Non-Illuminated	6.5 mm	SPDT	On-On	30 V	4 A 6 A
NKK Switches M2012ES1W01/UC/AT532TH	25000 Steps	Brass Chrome Plated	125 V	1/4-40	Solder Lug	11.4 mm	Includes Dress Nut	Panel Mount	85 °C	-30 ░C	Flatted	Non-Illuminated	6.5 mm	SPDT	On-On	30 V	4 A 6 A

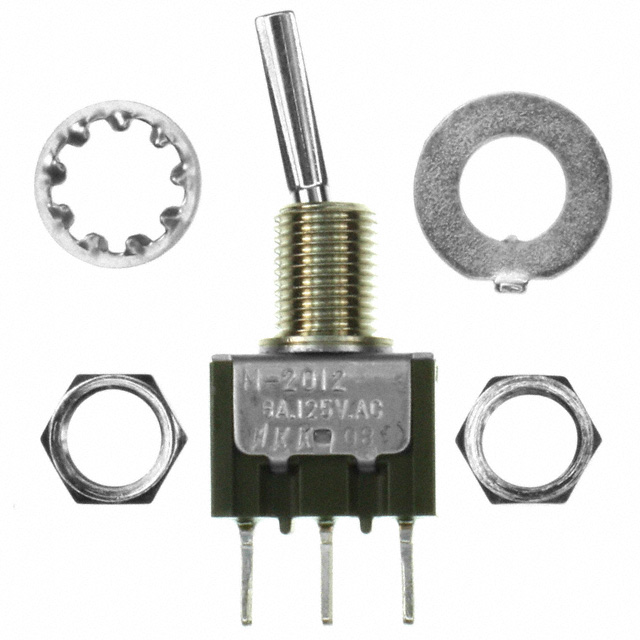

NKK Switches M2012ES1W03/UC	25000 Steps	Brass Chrome Plated	125 V	1/4-40	PC Pin	11.4 mm	Epoxy Sealed Terminals	Panel Mount	85 °C	-30 ░C	Flatted	Non-Illuminated	6.5 mm	SPDT	On-On	30 V	4 A 6 A
NKK Switches M2012ES2W03	25000 Steps	Brass Chrome Plated	125 V	Unthreaded	PC Pin	11.4 mm	Epoxy Sealed Terminals	Through Hole	85 °C	-30 ░C	Flatted	Non-Illuminated		SPDT	On-On	30 V	4 A 6 A
