A-HDS 62 Series
Manufacturer: Assmann WSW Components
Beta
⌘K

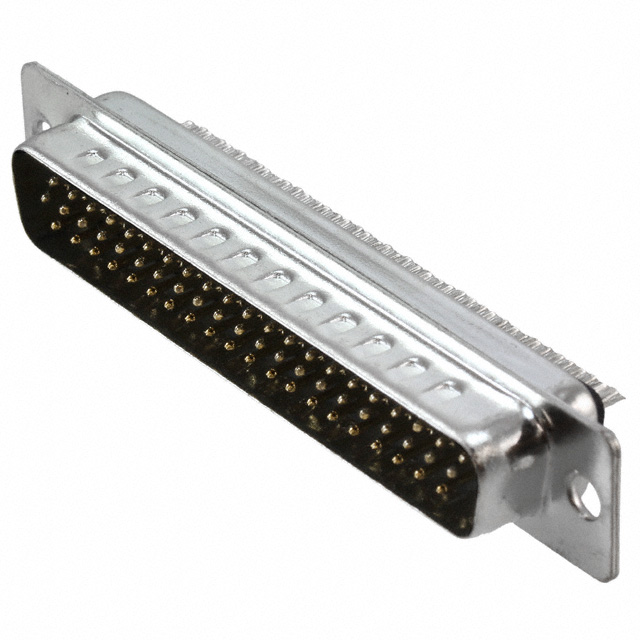

CONN D-SUB HD PLUG 62P SLDR CUP
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Contact Material | Color | Connector Style | Features | Number of Rows [custom] | Contact Finish Thickness | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Type | Contact Type | Contact Finish | Current Rating (Amps) | Number of Positions | Mounting Type | Flange Feature | Termination | Backset Spacing | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -20 ░C | 250 V | Copper Alloy | Black | D-Sub High Density | Grounding Indents | 3 | Flash | UL94 V-0 | C DC | 4 | Plug Male Pins | Signal | Gold | 3 A | 62 | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | |||

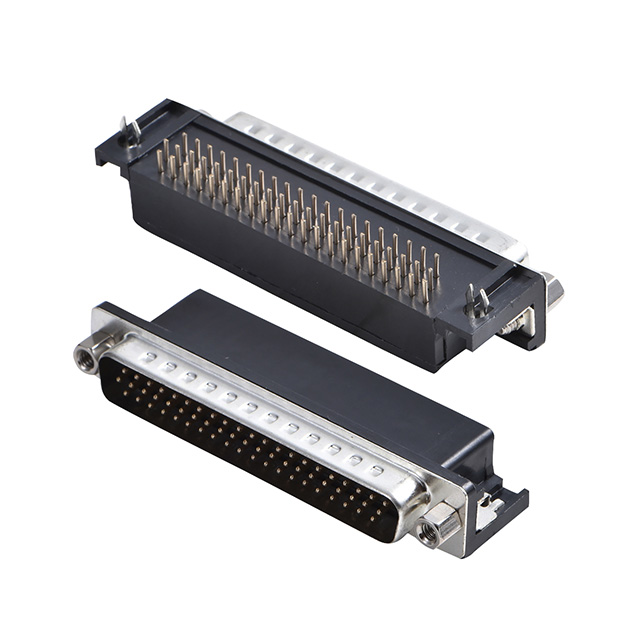

 Assmann WSW Components | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -55 C | 250 V | Copper Alloy | Black | D-Sub High Density | Board Lock Grounding Indents | 3 | Flash | UL94 V-0 | C DC | 4 | Plug Male Pins | Signal | Gold | 3 A | 62 | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | 8.89 mm | 0.35 in |
