TPS65982DMC Series

Dual USB billboard for USB-C® Power Delivery devices with integrated 5-V load switch

Catalog

Dual USB billboard for USB-C® Power Delivery devices with integrated 5-V load switch

Part	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Applications	Utilized IC / Part	Function	Secondary Attributes	Supplied Contents	Type	Voltage - Supply
Texas Instruments TPS65982ABZBHR	Surface Mount	2.85 V 4.75 V	3.45 V 5.5 V	96-VFBGA	-10 °C	85 C	96-NFBGA (6x6)	Type-C Controller USB
Texas Instruments TPS65982DCZQZR
Texas Instruments TPS65982DAZQZR
Texas Instruments TPS65982DCZBHR
Texas Instruments TPS65982DBZQZR
Texas Instruments TPS65982BBZBHR	Surface Mount	2.85 V 4.75 V	3.45 V 5.5 V	96-VFBGA	-10 °C	85 C	96-NFBGA (6x6)	USB Type C

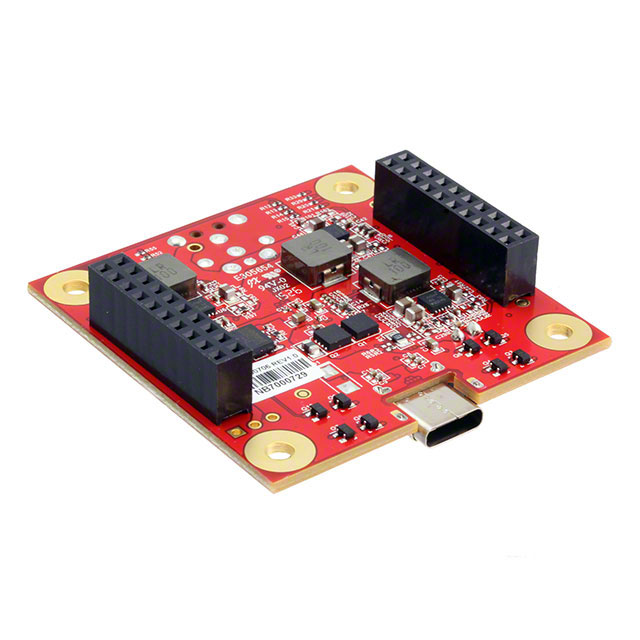

Texas Instruments TPS65982-EVM									TPS65982	USB Type-C®	On-Board LEDs	Board(s)	Interface
Texas Instruments TPS65982DMCZBHR	Surface Mount	1.7 V	3.45 V	96-VFBGA	-10 °C	85 C	96-NFBGA (6x6)	Dock Management Controller
Texas Instruments TPS65982ABZQZR	Surface Mount			96-VFBGA	-10 °C	85 °C	96-BGA Microstar Junior (6x6)	Type-C Controller USB						3.3 V 5 V

Catalog

Dual USB billboard for USB-C® Power Delivery devices with integrated 5-V load switch

Key Features

• Secure Firmware UpdateSecurely Updates the TPS65982DMC and other TI PD controllers over USB Low SpeedSHA-256 & RSA-3072I2C boot for TI PD controllers - single flash for all devicesSupports unsecured firmware updateBarrel Jack Input ControlIntegrated NFET gate drive with over voltage detectionSoft StartSmart Power Policy ManagerManages all dock power – USB Type-C, USB Type-A, System PowerConfigurable Smart Power Policy ManagerUSB4 Connection ManagerUpdates the DFP Ports based on UFP Host ConnectionReconfigures PD controllers and issues proper connection changesConfigurable GPIO for system useNFBGA Package0.5-mm PitchThrough-Hole Via Compatible for All PinsSecure Firmware UpdateSecurely Updates the TPS65982DMC and other TI PD controllers over USB Low SpeedSHA-256 & RSA-3072I2C boot for TI PD controllers - single flash for all devicesSupports unsecured firmware updateBarrel Jack Input ControlIntegrated NFET gate drive with over voltage detectionSoft StartSmart Power Policy ManagerManages all dock power – USB Type-C, USB Type-A, System PowerConfigurable Smart Power Policy ManagerUSB4 Connection ManagerUpdates the DFP Ports based on UFP Host ConnectionReconfigures PD controllers and issues proper connection changesConfigurable GPIO for system useNFBGA Package0.5-mm PitchThrough-Hole Via Compatible for All Pins

Description
