SA28300 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

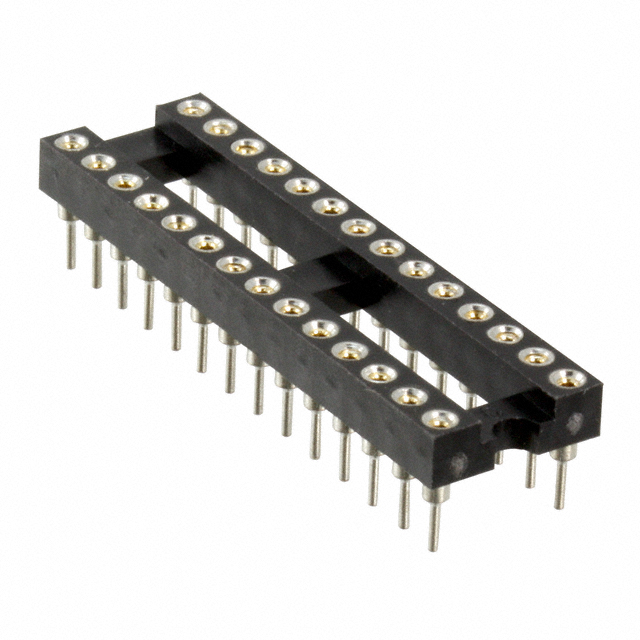

CONN IC DIP SOCKET 28POS TIN
| Part | Material Flammability Rating | Contact Resistance | Current Rating (Amps) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Mating | Contact Material - Post [custom] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Pitch - Post | Pitch - Post | Features | Pitch - Mating | Pitch - Mating | Type | Type | Type | Number of Positions or Pins (Grid) | Contact Finish - Post | Housing Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | UL94 V-0 | 4 mOhm | 3 A | 200 µin | 5.08 µm | Beryllium Copper | Brass | Solder | -40 C | 105 ░C | Flash | 0.1 in | 2.54 mm | Open Frame | 0.1 " | 2.54 mm | 7.62 mm | 0.3 in | DIP | 28 | Tin | Glass Filled Polyester Thermoplastic | Through Hole |
