27TCSP Series
Manufacturer: Essentra Components
Beta
⌘K

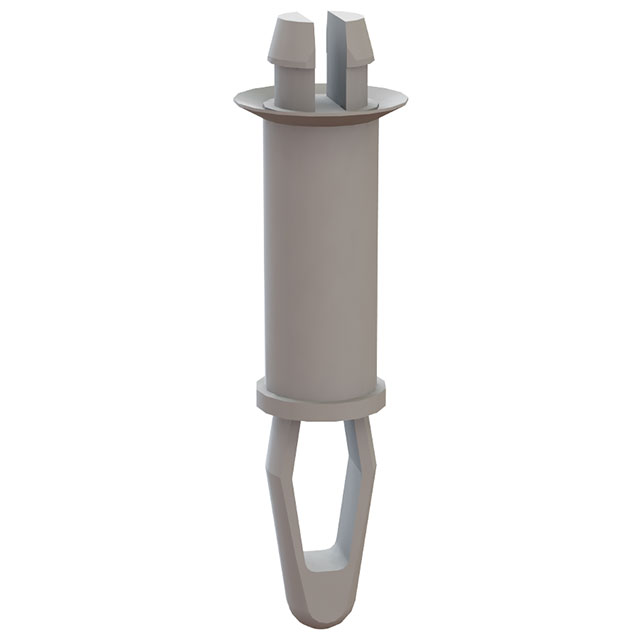

PCB SUPPORT, SNAP FIT, .156/.156
| Part | Support Panel Thickness [custom] | Support Panel Thickness [custom] | Mounting Hole Diameter | Mounting Hole Diameter | Mounting Hole Diameter | Mounting Type | Mounting Panel Thickness [x] | Mounting Panel Thickness [x] | Material | Holding Type | Between Board Height | Between Board Height | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | 0.063 in | 1.59 mm | 3.96 mm | 0.15625 in | 0.156 in | Snap Lock | 1.59 mm | 0.063 " | Nylon | Snap Lock | 12.7 mm | 0.5 in | 0.156 in | 3.96 mm |
 Essentra Components | 0.063 in | 1.59 mm | 3.96 mm | 0.15625 in | 0.156 in | Snap Lock | 1.59 mm | 0.063 " | Nylon | Snap Lock | 11.1 mm | 0.437 in | 0.156 in | 3.96 mm |
