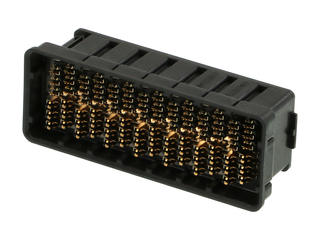

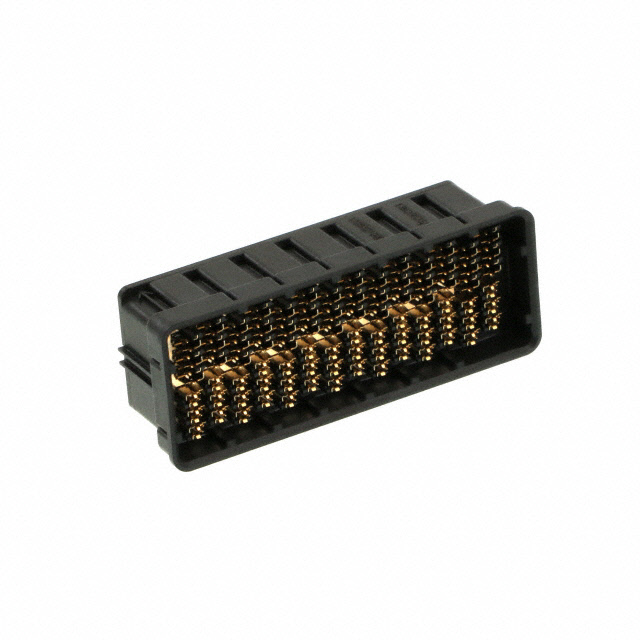

NeoPress High-Speed Mezzanine Receptacle, 3.50mm Pitch, 6x14, 84 Triads (252 Circuits), 18.50mm Connector Height, 0.76µm Gold (Au) Plating
NeoPress High-Speed Mezzanine Receptacle, 3.50mm Pitch, 6x14, 84 Triads (252 Circuits), 18.50mm Connector Height, 0.76µm Gold (Au) Plating
NeoPress High-Speed Mezzanine Receptacle, 3.50mm Pitch, 6x14, 84 Triads (252 Circuits), 18.50mm Connector Height, 0.76µm Gold (Au) Plating
| Part | Pitch [x] | Pitch [x] | Number of Rows | Height Above Board | Height Above Board | Contact Finish | Number of Positions | Connector Type | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Mated Stacking Heights | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 3.5 mm | 0.138 in | 8 | 0.868 in | 22.05 mm | Gold | 480 | Differential Pair Array Female | Through Hole | 0.76 Ám | 30 Áin | 18.5 mm | |
 Molex | 3.5 mm | 0.138 in | 6 | 17.05 mm | Gold | 84 | Differential Pair Array Female | Through Hole | 0.76 Ám | 30 Áin | 0.671 in |
