R413R Series

Manufacturer: KEMET

Catalog

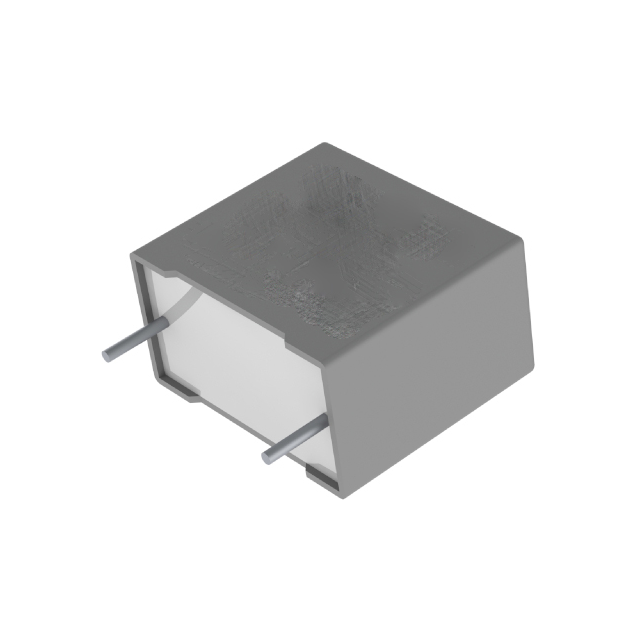

CAP FILM SUPPRESSION Y2/X1 0.22UF 1000VDC/300VAC PP 20%( 32 X 13 X 22MM) RADIAL PLASTIC RECTANGULAR CAN 27.5MM 110°C TRAY

Part	Package / Case	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Termination	Capacitance	Voltage Rating - AC	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Tolerance	Lead Spacing	Lead Spacing	Applications	Voltage Rating - DC	Voltage Rating - DC
KEMET R413R32204000M	Radial	Through Hole	32 mm	1.26 in	0.512 "	13 mm	PC Pins	0.22 µF	300 V	AEC-Q200 X1 Y2	0.87 in	22.1 mm	-40 C	110 °C	Polypropylene (PP) Metallized	20 %	27.5 mm	1.083 in	Automotive EMI RFI Suppression	1 kV	1 kVDC
KEMET R413R32205000M	Radial	Through Hole	32 mm	1.26 in	0.512 "	13 mm	PC Pins	0.22 µF	300 V	AEC-Q200 X1 Y2	0.87 in	22.1 mm	-40 C	110 °C	Polypropylene (PP) Metallized	20 %	27.5 mm	1.083 in	Automotive EMI RFI Suppression	1 kV	1 kVDC
KEMET R413R34705000M	Radial	Through Hole	32 mm	1.26 in	0.709 in	18 mm	PC Pins	0.47 µF	300 V	AEC-Q200 X1 Y2			-40 C	110 °C	Polypropylene (PP) Metallized	20 %	27.5 mm	1.083 in	Automotive EMI RFI Suppression	1 kV	1 kVDC
KEMET R413R34704000M	Radial	Through Hole	32 mm	1.26 in	0.709 in	18 mm	PC Pins	0.47 µF	300 V	AEC-Q200 X1 Y2			-40 C	110 °C	Polypropylene (PP) Metallized	20 %	27.5 mm	1.083 in	Automotive EMI RFI Suppression	1 kV	1 kVDC
KEMET R413R34700000M	Radial	Through Hole	32 mm	1.26 in	0.709 in	18 mm	PC Pins	0.47 µF	300 V	AEC-Q200 X1 Y2			-40 C	110 °C	Polypropylene (PP) Metallized	20 %	27.5 mm	1.083 in	Automotive EMI RFI Suppression	1 kV	1 kVDC
KEMET R413R368050T0K	Radial	Through Hole	32 mm	1.26 in	0.709 in	18 mm	PC Pins	0.68 µF	300 V	AEC-Q200 X1 Y2			-40 C	125 °C	Polypropylene (PP) Metallized	10 %	27.5 mm	1.083 in	Automotive EMI RFI Suppression	1.5 kV	1.5 kV
KEMET R413R347050T0K	Radial	Through Hole	32 mm	1.26 in	0.709 in	18 mm	PC Pins	0.47 µF	300 V	AEC-Q200 X1 Y2			-40 C	125 °C	Polypropylene (PP) Metallized	10 %	27.5 mm	1.083 in	Automotive EMI RFI Suppression	1.5 kV	1.5 kV
KEMET R413R322050T0K	Radial	Through Hole	32 mm	1.26 in	0.512 "	13 mm	PC Pins	0.22 µF	300 V	AEC-Q200 X1 Y2	0.87 in	22.1 mm	-40 C	125 °C	Polypropylene (PP) Metallized	10 %	27.5 mm	1.083 in	Automotive EMI RFI Suppression	1.5 kV	1.5 kV
