120NQ Series

Catalog

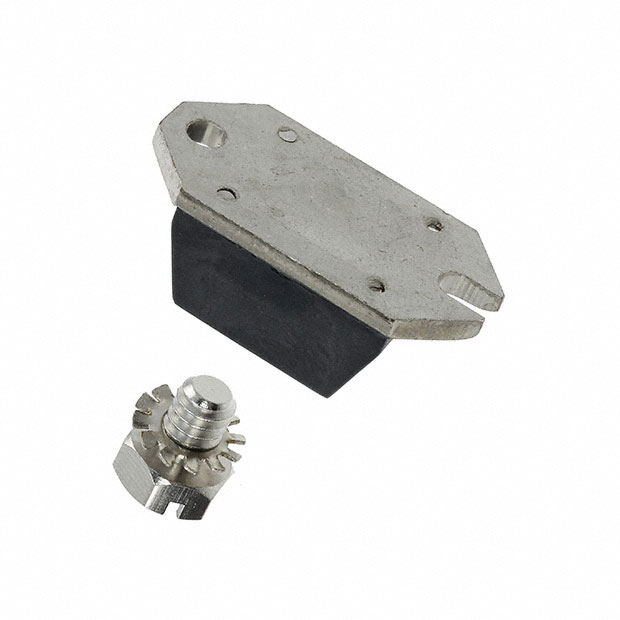

DIODE SCHOTTKY 40V 120A PRM1-1

Part	Current - Reverse Leakage	Capacitance	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Voltage - Forward (Vf) (Max)	Voltage - DC Reverse (Vr) (Max)	Package / Case	Mounting Type	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Package Name	Supplier Device Package	Current - Average Rectified (Io)	Technology
SMC Diode Solutions 120NQ040-1	10 mA	5200 pF	500 ns	200 mA	610 mV	40 V	HALF-PAK	Chassis Mount	150 °C	-55 °C	Half Module Pak PRM1-1 PRM1-1 (Half Pak Module)	PRM1-1	120 A	Schottky
SMC Diode Solutions 120NQ035R-1	10 mA	5200 pF	500 ns	200 mA	610 mV	35 V	HALF-PAK	Chassis Mount	150 °C	-55 °C	Half Module Pak PRM1-1 PRM1-1 (Half Pak Module)	PRM1-1	120 A	Schottky
SMC Diode Solutions 120NQ040R-1	10 mA	5200 pF	500 ns	200 mA	610 mV	40 V	HALF-PAK	Chassis Mount	150 °C	-55 °C	Half Module Pak PRM1-1 PRM1-1 (Half Pak Module)	PRM1-1	120 A	Schottky
SMC Diode Solutions 120NQ035-1	10 mA	5200 pF	500 ns	200 mA	610 mV	35 V	HALF-PAK	Chassis Mount	150 °C	-55 °C	Half Module Pak PRM1-1 PRM1-1 (Half Pak Module)	PRM1-1	120 A	Schottky
SMC Diode Solutions 120NQ045R-1	10 mA	5200 pF	500 ns	200 mA	610 mV	45 V	HALF-PAK	Chassis Mount	150 °C	-55 °C	Half Module Pak PRM1-1 PRM1-1 (Half Pak Module)	PRM1-1	120 A	Schottky
