Champ 050 Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS .050CL CHAMP RA PLUG 50POS

Part	Type	Connector Type	Number of Positions	Number of Rows [custom]	Contact Finish	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Termination	Mounting Type	Features	Mated Stacking Heights	Height Above Board [z]	Height Above Board	Pitch	Pitch	Height Above Board [z]
TE Connectivity AMP Connectors 5-5175472-6	Board to Board High Density	Plug	50	2	Gold	Center Strip Contacts	30 Áin	0.76 Ám	Solder	Right Angle Through Hole	Board Lock

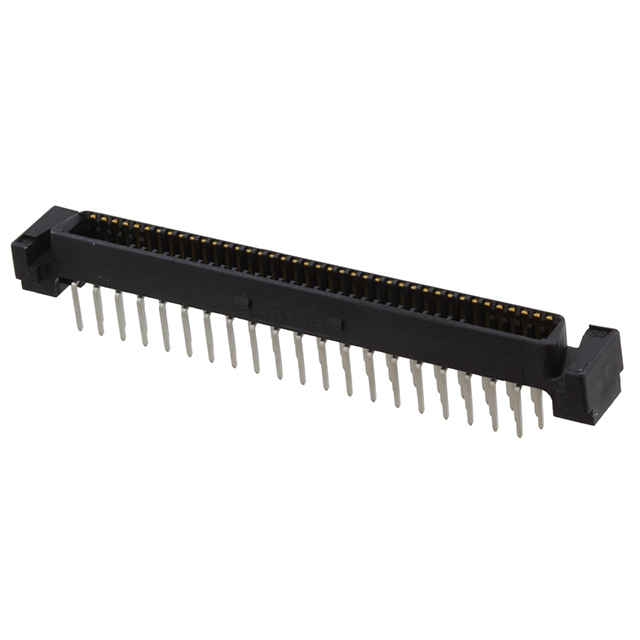

TE Connectivity AMP Connectors 5917630-3		Receptacle Outer Shroud Contacts	80	2	Gold		11.8 Áin	0.3 Ám		Through Hole		10 mm	0.295 in	7.5 mm	0.05 in	1.27 mm
TE Connectivity AMP Connectors 5-5175473-9	Board to Board	Plug	80	2	Gold	Center Strip Contacts	30 Áin	0.76 Ám	Solder	Through Hole	Board Lock

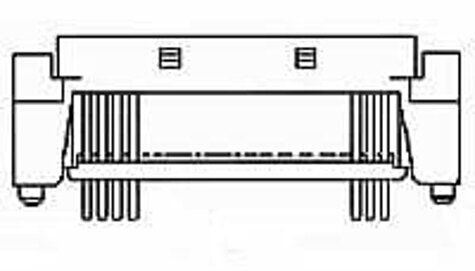

TE Connectivity AMP Connectors 5917630-2		Receptacle Outer Shroud Contacts	60	2	Gold		11.8 Áin	0.3 Ám		Through Hole		10 mm	0.295 in	7.5 mm	0.05 in	1.27 mm
TE Connectivity AMP Connectors 5175472-7	Board to Board High Density	Plug	60	2	Gold	Center Strip Contacts	8 µin	0.203 çm	Solder	Right Angle Through Hole	Board Lock

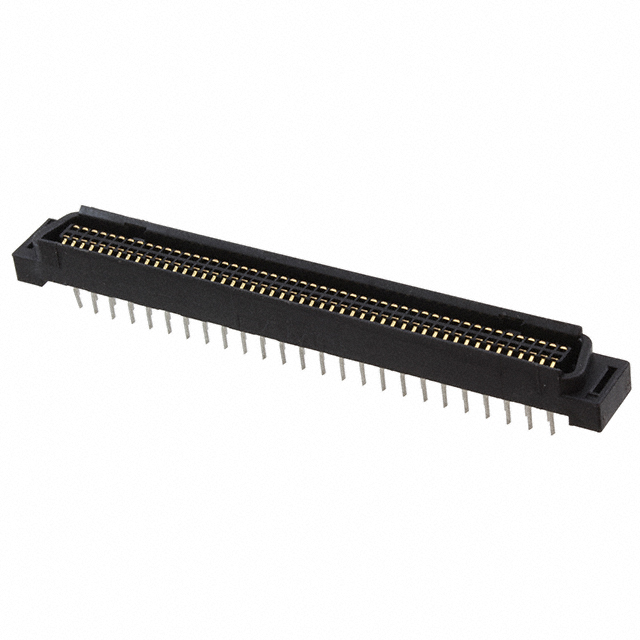

TE Connectivity AMP Connectors 5917631-4			100	2	Gold		11.8 Áin	0.3 Ám		Through Hole			0.275 in		0.05 in	1.27 mm	6.99 mm
TE Connectivity AMP Connectors 2-5175677-7		Plug	50	2	Gold	Center Strip Contacts	30 Áin	0.76 Ám	IDC	Free Hanging (In-Line)
