GBC11S Series

Catalog

CONN HEADER SMD R/A 11POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Material	Style	Termination	Number of Positions	Contact Type	Contact Finish - Post	Number of Positions Loaded	Connector Type	Pitch - Mating	Pitch - Mating	Number of Rows	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Shape	Contact Finish - Mating	Insulation Material	Shrouding	Fastening Type

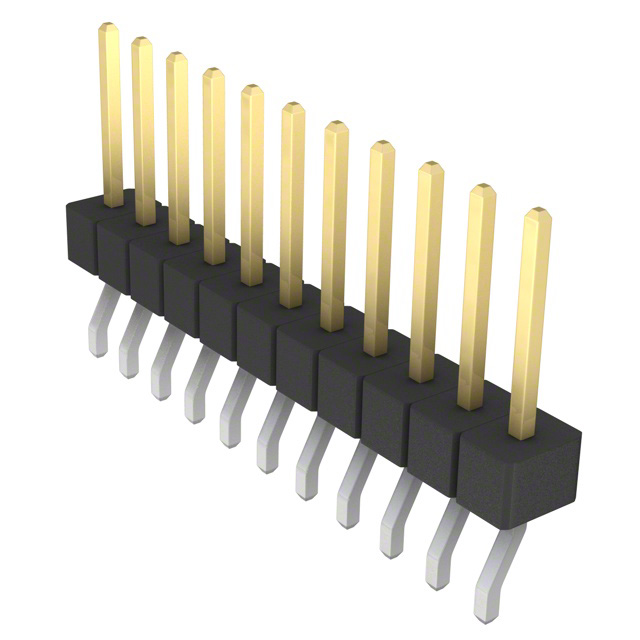

Sullins Connector Solutions GBC11SGSN-M89	2.54 µm	100 µin	Right Angle Surface Mount	0.25 µm	10 µin	3.56 mm	0.14 in	150 °C	-65 ░C	3 A	Phosphor Bronze	Board to Board Cable	Solder	11	Male Pin	Tin	All	Header Breakaway	0.1 "	2.54 mm	1	UL94 V-0	8.08 mm	0.318 in	Black	Square	Gold	Nylon 9T Polyamide (PA9T)	Unshrouded	Push-Pull
Sullins Connector Solutions GBC11SABN-M30	2.54 µm	100 µin	Surface Mount	0.25 µm	10 µin	2.54 mm	0.1 in	150 °C	-65 ░C	3 A	Phosphor Bronze	Board to Board Cable	Solder	11	Male Pin	Tin	All	Header Breakaway	0.1 "	2.54 mm	1	UL94 V-0	5.84 mm	0.23 in	Black	Square	Gold	Nylon 9T Polyamide (PA9T)	Unshrouded	Push-Pull
