ADS7066 Series

Eight-channel, 250-kSPS, 16-bit analog-to-digital converter with internal reference, GPIOs and SPI

Catalog

Eight-channel, 250-kSPS, 16-bit analog-to-digital converter with internal reference, GPIOs and SPI

Part	Features	Sampling Rate (Per Second)	Architecture	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Reference Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Configuration	Mounting Type	Number of Inputs	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Data Interface	Number of A/D Converters	Number of Bits	Supplier Device Package	Ratio - S/H:ADC	Utilized IC / Part	Input Range [Min]	Input Range [Max]	Supplied Contents

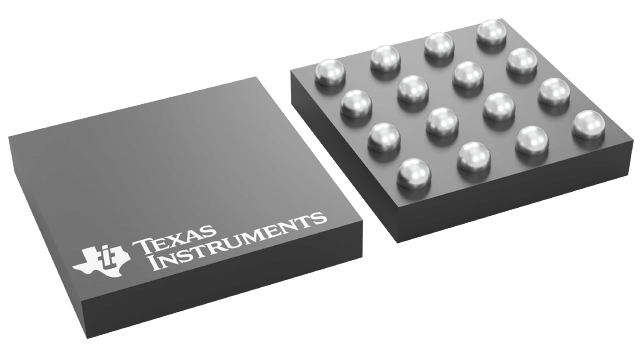

Texas Instruments ADS7066IYBHR	Internal Oscillator	250 k	SAR	3 V	5.5 V	External Internal	16-XFBGA DSBGA	125 °C	-40 °C	Single Ended	MUX-ADC	Surface Mount	8	5.5 V	1.65 V	SPI	1	16	16-DSBGA (1.62x1.62)	0:1
Texas Instruments ADS7066IRTER	Internal Oscillator	250 k	SAR	3 V	5.5 V	External Internal	16-WFQFN Exposed Pad	125 °C	-40 °C	Single Ended	MUX-ADC	Surface Mount	8	5.5 V	1.65 V	SPI	1	16	16-WQFN (3x3)	0:1

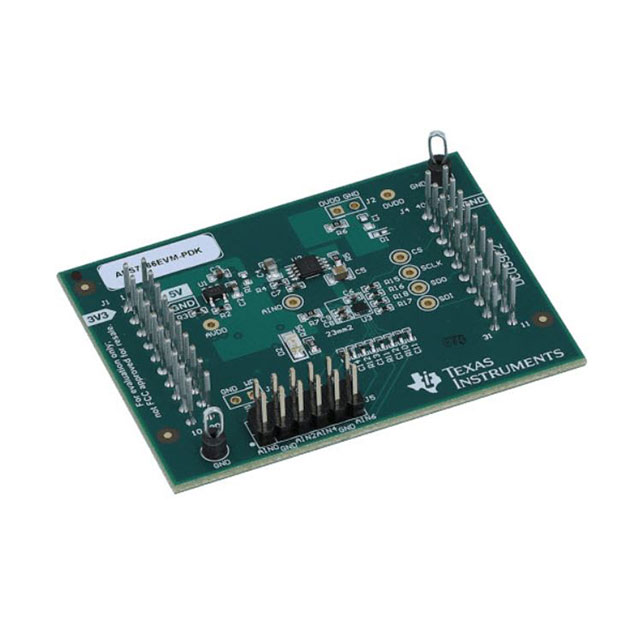

Texas Instruments ADS7066EVM-PDK		250 k														Serial SPI	1	16			ADS7066	-2 xVREF	2 Vpp	Board(s) Cable(s)
Texas Instruments ADS7066IYBHT	Internal Oscillator	250 k	SAR	3 V	5.5 V	External Internal	16-XFBGA DSBGA	125 °C	-40 °C	Single Ended	MUX-ADC	Surface Mount	8	5.5 V	1.65 V	SPI	1	16	16-DSBGA (1.62x1.62)	0:1

Catalog

Eight-channel, 250-kSPS, 16-bit analog-to-digital converter with internal reference, GPIOs and SPI

Key Features

• Small solution size:DSBGA and WQFN packagesSpace-saving, capless, 2.5-V internal reference8 channels configurable as any combination of:Up to 8 analog inputs, digital inputs, or digital outputsProgrammable averaging filters:Programmable sample size for averagingAveraging with internal conversions20-bit resolution for average outputLow-leakage multiplexer with channel sequencer:Manual mode, on-the-fly mode, and auto-sequence modeExcellent AC and DC performance:SNR: 91.9 dB, THD: –100 dBImproved SNR with programmable averaging filtersINL: ±1 LSB, 16-bit no missing codesInternal calibration improves offset and drift250 kSPS sample rate with no latencyWide operating range:ADC input range: 0 V to V REF and 2 × V REFAnalog supply: 3 V to 5.5 VDigital supply: 1.65 V to 5.5 VTemperature range: –40°C to +125°CEnhanced-SPI digital interface:High-speed, 60-MHz SPISmall solution size:DSBGA and WQFN packagesSpace-saving, capless, 2.5-V internal reference8 channels configurable as any combination of:Up to 8 analog inputs, digital inputs, or digital outputsProgrammable averaging filters:Programmable sample size for averagingAveraging with internal conversions20-bit resolution for average outputLow-leakage multiplexer with channel sequencer:Manual mode, on-the-fly mode, and auto-sequence modeExcellent AC and DC performance:SNR: 91.9 dB, THD: –100 dBImproved SNR with programmable averaging filtersINL: ±1 LSB, 16-bit no missing codesInternal calibration improves offset and drift250 kSPS sample rate with no latencyWide operating range:ADC input range: 0 V to V REF and 2 × V REFAnalog supply: 3 V to 5.5 VDigital supply: 1.65 V to 5.5 VTemperature range: –40°C to +125°CEnhanced-SPI digital interface:High-speed, 60-MHz SPI

Description

The ADS7066 is a small, 16-bit, 8-channel, high-precision successive-approximation register (SAR) analog-to-digital converter (ADC). The ADS7066 has an integrated capless reference and a reference buffer that helps reduce the overall solution size by requiring fewer external components. The device family includes the ADS7067 (800 kSPS) and the ADS7066 (250 kSPS) speed variants. The ADS7066 features built-in offset calibration for improved accuracy over wide operating conditions of the system. The programmable averaging filters enable higher resolution measurement. The eight channels of the ADS7066 can be individually configured as analog inputs, digital inputs, or digital outputs that simplify circuit design for mixed signal feedback and digital control. The enhanced-SPI enables the ADS7066 in achieving high throughput at lower clock speeds, thereby simplifying the board layout and lowering system cost. The ADS7066 features a cyclic redundancy check (CRC) for data read and write operations and the power-up configuration. The ADS7066 is a small, 16-bit, 8-channel, high-precision successive-approximation register (SAR) analog-to-digital converter (ADC). The ADS7066 has an integrated capless reference and a reference buffer that helps reduce the overall solution size by requiring fewer external components. The device family includes the ADS7067 (800 kSPS) and the ADS7066 (250 kSPS) speed variants. The ADS7066 features built-in offset calibration for improved accuracy over wide operating conditions of the system. The programmable averaging filters enable higher resolution measurement. The eight channels of the ADS7066 can be individually configured as analog inputs, digital inputs, or digital outputs that simplify circuit design for mixed signal feedback and digital control. The enhanced-SPI enables the ADS7066 in achieving high throughput at lower clock speeds, thereby simplifying the board layout and lowering system cost. The ADS7066 features a cyclic redundancy check (CRC) for data read and write operations and the power-up configuration.
