TPIC74101-Q1 Series

480kHz 1.5V to 40V, 1A buck-boost converter with 5V Fixed output Voltage, AEC-Q100 qualified

Catalog

480kHz 1.5V to 40V, 1A buck-boost converter with 5V Fixed output Voltage, AEC-Q100 qualified

Part	Output Type	Package / Case	Package / Case [custom]	Package / Case	Number of Outputs	Voltage - Output (Min/Fixed)	Supplier Device Package	Function	Grade	Current - Output	Mounting Type	Output Configuration	Frequency - Switching	Voltage - Input (Min) [Min]	Qualification	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Regulator Topology	Main Purpose	Supplied Contents	Voltage - Output	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Utilized IC / Part
Texas Instruments TPIC74101QPWPRQ1	1.81 mOhm	20-PowerTSSOP	4.4 mm	0.173 in	2	5 V	20-HTSSOP	Step-Down Step-Up Step-Up/Step-Down	Automotive	1 A	Surface Mount	Positive	380 kHz	1.5 V	AEC-Q100	Boost Buck Buck-Boost	-40 °C	125 °C

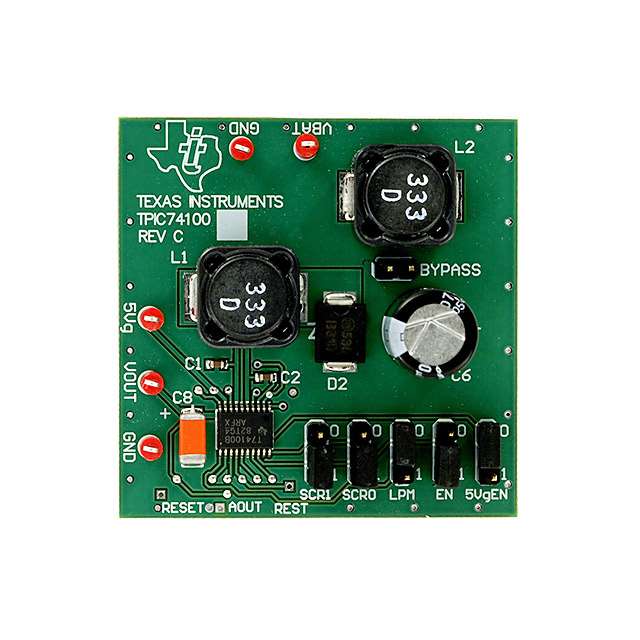

Texas Instruments TPIC74101EVM										1 A			380 kHz						Buck-Boost	DC/DC Step Up or Down	Board(s)	5 V	Fully Populated	1.5 V	40 V	Non-Isolated	1	TPIC74101

Catalog

480kHz 1.5V to 40V, 1A buck-boost converter with 5V Fixed output Voltage, AEC-Q100 qualified

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device HBM ESD Classification level 1B forpin 7 (L2), pin 8 (VOUT), pin 9 (5Vg)Device HBM ESD Classification 2 for pins 1–6and 10–20Device CDM ESD Classification Level C4BSwitch-Mode Regulator5 V ±2%, Buck Mode5 V ±3%, Low-Power or Boost or Boost/buck Crossover ModeSwitching Frequency, 380 kHz (typical)Input Operating Range, 1.5 V to 40 V, (Vdriver)1-A Load-Current Capability200-mA Load-Current Capability Down to 2-V Input(Vdriver)120-mA Load-Current Capability Down to1.5-V Input (Vdriver)Enable FunctionLow-Power Operation ModeSwitched 5-V Regulated Output on 5Vg With CurrentLimitProgrammable Slew Rate and Frequency Modulationfor EMI ConsiderationReset Function With Deglitch Timer and ProgrammableDelayAlarm Function for Undervoltage Detection andIndicationThermally Enhanced Package for Efficient HeatManagementQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device HBM ESD Classification level 1B forpin 7 (L2), pin 8 (VOUT), pin 9 (5Vg)Device HBM ESD Classification 2 for pins 1–6and 10–20Device CDM ESD Classification Level C4BSwitch-Mode Regulator5 V ±2%, Buck Mode5 V ±3%, Low-Power or Boost or Boost/buck Crossover ModeSwitching Frequency, 380 kHz (typical)Input Operating Range, 1.5 V to 40 V, (Vdriver)1-A Load-Current Capability200-mA Load-Current Capability Down to 2-V Input(Vdriver)120-mA Load-Current Capability Down to1.5-V Input (Vdriver)Enable FunctionLow-Power Operation ModeSwitched 5-V Regulated Output on 5Vg With CurrentLimitProgrammable Slew Rate and Frequency Modulationfor EMI ConsiderationReset Function With Deglitch Timer and ProgrammableDelayAlarm Function for Undervoltage Detection andIndicationThermally Enhanced Package for Efficient HeatManagement

Description

The TPIC74101-Q1 is a switch-mode regulator with integrated switches for voltage-mode control. With the aid of external components (LC combination), the device regulates the output to 5 V ±2% for a wide input-voltage range. The TPIC74101-Q1 offers a reset function to detect and indicate when the 5-V output rail is outside of the specified tolerance. This reset delay is programmable using an external timing capacitor on the RESET Pin. Additionally, an alarm (AOUT) feature is activated when the input supply rail Vdriveris below a prescaled specified value (set by the AINpin). The TPIC74101-Q1 has a frequency-modulation scheme to minimize EMI. The clock modulator permits a modulation of the switching frequency to reduce interference energy in the frequency band. The 5Vg output is a switched 5-V regulated output with internal current limiting to prevent RESET from being asserted when powering a capacitive load on the supply line. This function is controlled by the 5Vg_ENABLE Pin. If there is a short to ground on this output (5Vg output), the output self-protects by operating in a chopping mode. This does, however, increase the output ripple voltage on VOUTduring this fault condition. The TPIC74101-Q1 is a switch-mode regulator with integrated switches for voltage-mode control. With the aid of external components (LC combination), the device regulates the output to 5 V ±2% for a wide input-voltage range. The TPIC74101-Q1 offers a reset function to detect and indicate when the 5-V output rail is outside of the specified tolerance. This reset delay is programmable using an external timing capacitor on the RESET Pin. Additionally, an alarm (AOUT) feature is activated when the input supply rail Vdriveris below a prescaled specified value (set by the AINpin). The TPIC74101-Q1 has a frequency-modulation scheme to minimize EMI. The clock modulator permits a modulation of the switching frequency to reduce interference energy in the frequency band. The 5Vg output is a switched 5-V regulated output with internal current limiting to prevent RESET from being asserted when powering a capacitive load on the supply line. This function is controlled by the 5Vg_ENABLE Pin. If there is a short to ground on this output (5Vg output), the output self-protects by operating in a chopping mode. This does, however, increase the output ripple voltage on VOUTduring this fault condition.
