0921-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

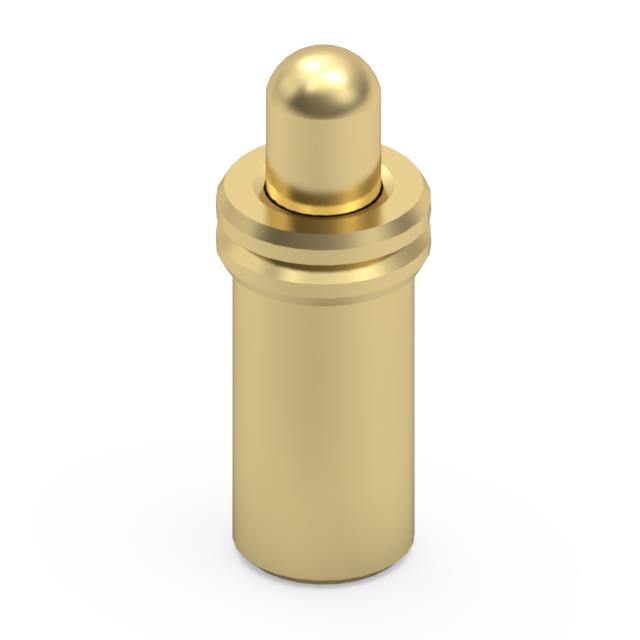

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Minimum Working Height [Min] [z] | Minimum Working Height | Contact Finish | Mounting Type | Contact Type | Mating Cycles | Plunger Size [diameter] | Plunger Size [diameter] | Operating Force - Mid Compression | Operating Force - Initial | Recommended Working Height | Recommended Working Height | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Finish Thickness | Contact Finish Thickness | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Brass Alloy | 0.15 in | 3.81 mm | Gold | Through Hole | Sleeve & Plunger (Pogo Pins) | 1000000 | 0.042 in | 1.07 mm | 60 gf | 10 gf | 4.51 mm | 0.178 in | 2.16 mm | 0.085 in | 20 µin | 0.51 µm | 0.078 in | 1.98 mm | 5.2 A |
