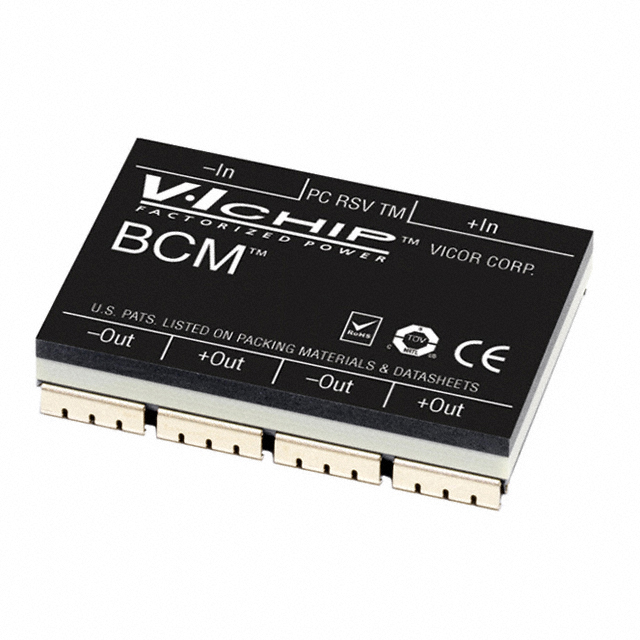

MBCM270 Series

Catalog

DC DC CONVERTER 45V 270W

Part	Applications	Voltage - Isolation	Mounting Type	Type	Voltage - Output 1	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Number of Outputs	Package / Case	Features
Vicor Corporation MBCM270F450M270A00	ITE (Commercial)	4.242 kV	Surface Mount	Bus Converter Module	45 V	96 %	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	270 W	-55 C	125 °C	230 V	330 V	6 A	1	Module	Remote On/Off UVLO
Vicor Corporation MBCM270T338M235A00	ITE (Commercial)	4.242 kV	Through Hole	Bus Converter Module	33.75 V	95.4 %	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	235 W	-55 C	125 °C	240 VDC	330 V	7 A	1	Module	Remote On/Off UVLO
Vicor Corporation MBCM270T450M270A00	ITE (Commercial)	4.242 kV	Through Hole	Bus Converter Module	45 V	96 %	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	270 W	-55 C	125 °C	230 V	330 V	6 A	1	Module	Remote On/Off UVLO
Vicor Corporation MBCM270F338M235A00	ITE (Commercial)	4.242 kV	Surface Mount	Bus Converter Module	33.75 V	95.4 %	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	235 W	-55 C	125 °C	240 VDC	330 V	7 A	1	Module	Remote On/Off UVLO
