25193 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

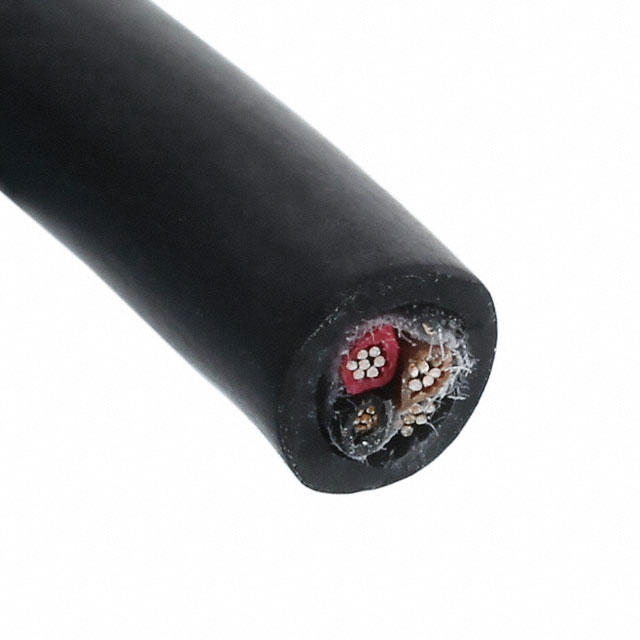

CABLE 3COND 22AWG BLK SHLD 100'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Number of Conductors | Features | Wire Gauge | Conductor Material | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Cable Type | Length [x] | Length [x] | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 0.813 mm | 0.032 in | Polyurethane (PU) | 3 | Biological Compatibility Drain Wire Rip Cord | 22 AWG | Copper Tinned | ISO 10993 UL Style 20668 | 30 AWG | 7 | 300 VDC | -30 ░C | 90 °C | Black | 4.57 mm | 0.18 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 100 ft | 30.5 m | Foil |
