1503 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

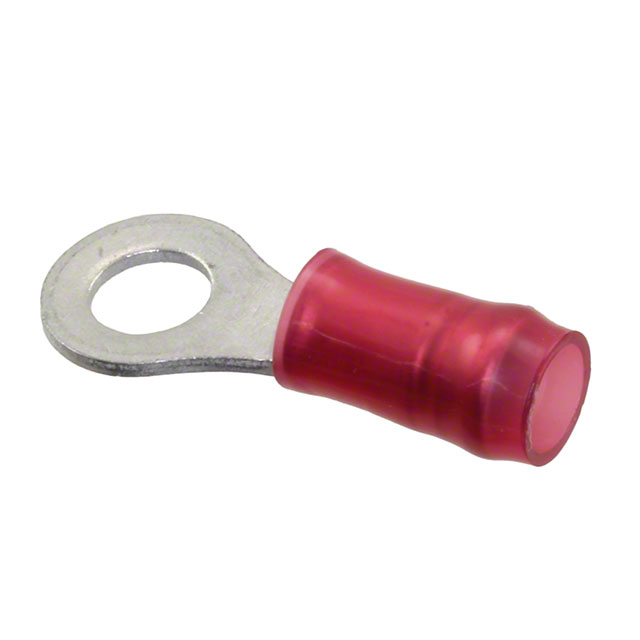

CONN RING CIRC 16-22AWG M4 CRIMP
| Part | Material - Insulation | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Termination | Contact Material | Stud/Tab Size | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Width - Outer Edges [x] | Width - Outer Edges [x] | Thickness | Thickness | Contact Finish | Features | Color | Insulation | Length - Overall [x] | Length - Overall [x] | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Nylon Polyamide (PA) | 2.67 mm | 0.14 in | 3.56 mm | 0.105 in | Crimp | Copper | M4 Stud | Free Hanging (In-Line) | 16 AWG | 22 AWG | 0.312 in | 7.92 mm | 0.84 mm | 0.033 " | Tin | Serrated Termination | Red | Insulated | 21.56 mm | 0.849 in | Circular |
