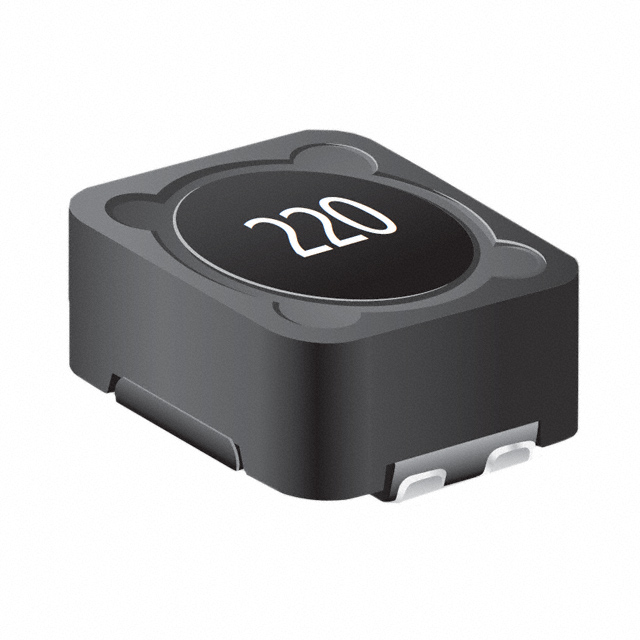

SRF1260A Series
Manufacturer: Bourns Inc.
Beta
⌘K
IND12.5X12.5X6MM,2X0.47UH30%8.8A,SHDSMD /TAPE & REEL - 13" REEL
| Part | Height | Height | Number of Coils | Current Saturation - Parallel | Current Rating - Parallel | DC Resistance (DCR) - Parallel [Max] | Inductance - Connected In Series | Inductance - Connected In Parallel | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current Saturation - Series | DC Resistance (DCR) - Series | Package / Case | Mounting Type | Current Rating - Series | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance | Ratings | DC Resistance (DCR) - Series [Max] | DC Resistance (DCR) - Parallel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.244 in | 6.2 mm | 2 | 33 A | 17.6 A | 5.3 mOhm | 1.88 µH | 470 nH | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | 16.5 A | 21.2 mOhm | Nonstandard | Surface Mount | 8.8 A | Shielded | 125 °C | -40 C | 30 % | AEC-Q200 | ||
 Bourns Inc. | 0.244 in | 6.2 mm | 2 | 18.3 A | 13.8 A | 7.3 mOhm | 6 µH | 1.5 µH | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | 9.15 A | Nonstandard | Surface Mount | 6.89 A | Shielded | 125 °C | -40 C | 30 % | AEC-Q200 | 30.2 mOhm | ||
 Bourns Inc. | 0.244 in | 6.2 mm | 2 | 7.17 A | 5.35 A | 40 µH | 10 µH | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | 3.59 A | Nonstandard | Surface Mount | 2.67 A | Shielded | 125 °C | -40 C | 20 % | AEC-Q200 | 93.4 mOhm | 24.6 mOhm | ||
Bourns Inc. | 0.244 in | 6.2 mm | 2 | 3.24 A | 2.71 A | 188 µH | 47 µH | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | 1.62 A | Nonstandard | Surface Mount | 1.35 A | Shielded | 125 °C | -40 C | 20 % | AEC-Q200 | 340 mOhm | 86 mOhm |
