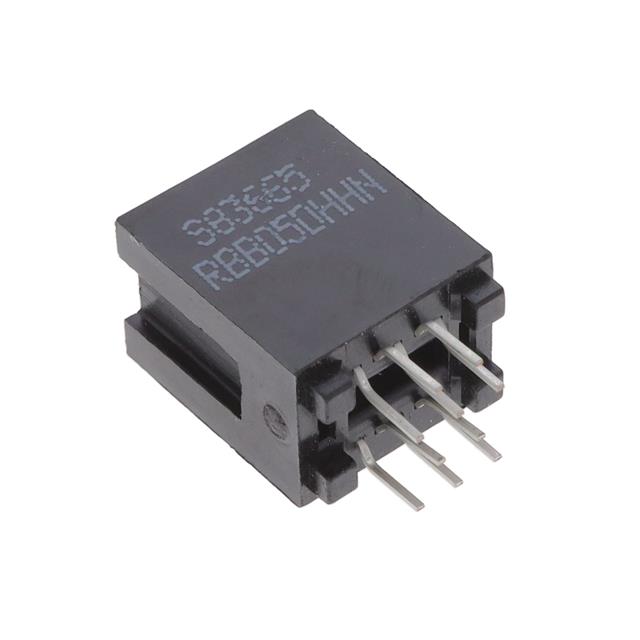

RBB05 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 10POS 0.050
| Part | Material - Insulation | Features | Flange Feature | Card Thickness | Card Thickness | Contact Type | Number of Positions | Color | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Number of Rows [custom] | Number of Positions/Bay/Row | Pitch | Pitch | Contact Finish | Gender | Card Type | Read Out | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature [custom] | Flange Feature [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Card Extender | 4-40 Flush Mount Threaded Insert Top Opening | 1.57 mm | 0.062 in | Hairpin Bellows | 10 | Black | Board Edge Straddle Mount | -65 ░C | 125 °C | Solder | 2 | 5 | 0.05 in | 1.27 mm | Gold | Female | Non Specified - Dual Edge | Dual | Phosphor Bronze | 0.25 Ám | 10 Áin | ||||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 4-40 Flush Mount Threaded Insert Top Opening | 1.57 mm | 0.062 in | Hairpin Bellows | 10 | Black | Surface Mount | -65 ░C | 125 °C | Solder | 2 | 5 | 0.05 in | 1.27 mm | Gold | Female | Non Specified - Dual Edge | Dual | Phosphor Bronze | 0.25 Ám | 10 Áin | |||||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Board Lock Card Extender | 1.57 mm | 0.062 in | Cantilever | 10 | Black | Board Edge Straddle Mount | -65 ░C | 125 °C | Solder | 2 | 5 | 0.05 in | 1.27 mm | Gold | Female | Non Specified - Dual Edge | Dual | Phosphor Bronze | 0.25 Ám | 10 Áin | |||||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Side Mount Opening Unthreaded | 1.57 mm | 0.062 in | Hairpin Bellows | 10 | Black | Right Angle Through Hole | -65 ░C | 125 °C | Solder Staggered | 2 | 5 | 0.05 in | 1.27 mm | Gold | Female | Non Specified - Dual Edge | Dual | Phosphor Bronze | 0.25 Ám | 10 Áin | 0.125 " | 3.18 mm | |||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 4-40 Flush Mount Threaded Insert Top Opening | 1.57 mm | 0.062 in | Cantilever | 10 | Black | Through Hole | -65 ░C | 125 °C | Solder Staggered | 2 | 5 | 0.05 in | 1.27 mm | Gold | Female | Non Specified - Dual Edge | Dual | Phosphor Bronze | 0.25 Ám | 10 Áin | |||||
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 1.57 mm | 0.062 in | Hairpin Bellows | 10 | Black | Through Hole | -65 ░C | 125 °C | Solder Staggered | 2 | 5 | 0.05 in | 1.27 mm | Gold | Female | Non Specified - Dual Edge | Dual | Phosphor Bronze | 0.25 Ám | 10 Áin | ||||||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 1.57 mm | 0.062 in | Cantilever | 10 | Black | Through Hole | -65 ░C | 125 °C | Solder Staggered | 2 | 5 | 0.05 in | 1.27 mm | Gold | Female | Non Specified - Dual Edge | Dual | Phosphor Bronze | 0.25 Ám | 10 Áin | ||||||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 1.57 mm | 0.062 in | Hairpin Bellows | 10 | Black | Through Hole | -65 ░C | 125 °C | Solder | 2 | 5 | 0.05 in | 1.27 mm | Gold | Female | Non Specified - Dual Edge | Dual | Phosphor Bronze | 0.25 Ám | 10 Áin | ||||||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Card Extender | Straddle Mount Opening Unthreaded | 1.57 mm | 0.062 in | Cantilever | 10 | Black | Board Edge Straddle Mount | -65 ░C | 125 °C | Solder | 2 | 5 | 0.05 in | 1.27 mm | Gold | Female | Non Specified - Dual Edge | Dual | Phosphor Bronze | 0.25 Ám | 10 Áin | 1.98 mm | 0.078 " | ||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 1.57 mm | 0.062 in | Cantilever | 10 | Black | Surface Mount | -65 ░C | 125 °C | Solder | 2 | 5 | 0.05 in | 1.27 mm | Gold | Female | Non Specified - Dual Edge | Dual | Phosphor Bronze | 0.25 Ám | 10 Áin |
