833-012 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 12POS 0.156
| Part | Termination Rows | Material - Insulation | Mounting Type | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Contact Type | Pitch | Pitch | Termination | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Read Out | Number of Rows | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Gender | Color | Termination Rows [custom] | Number of Rows [custom] | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

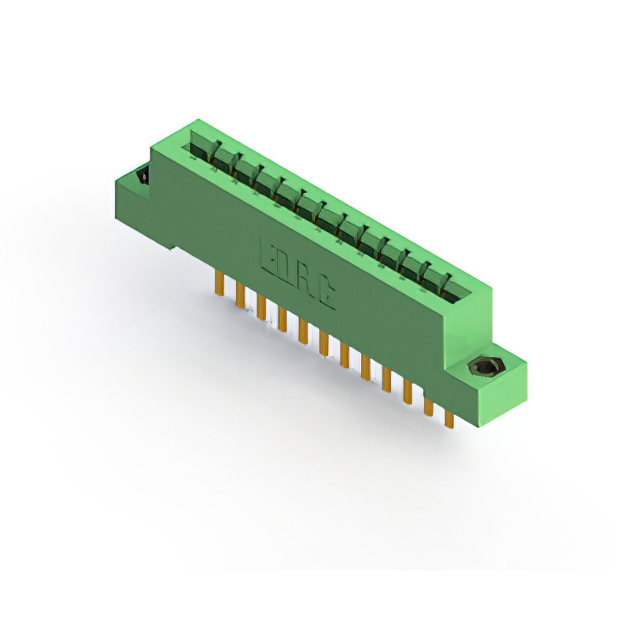

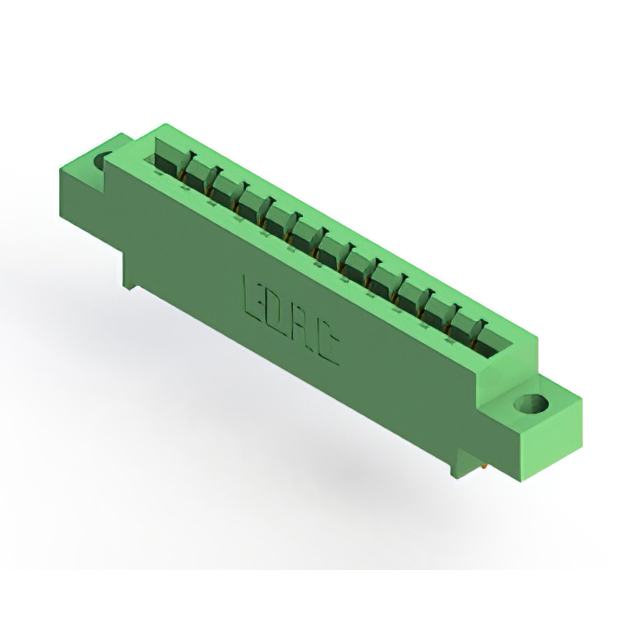

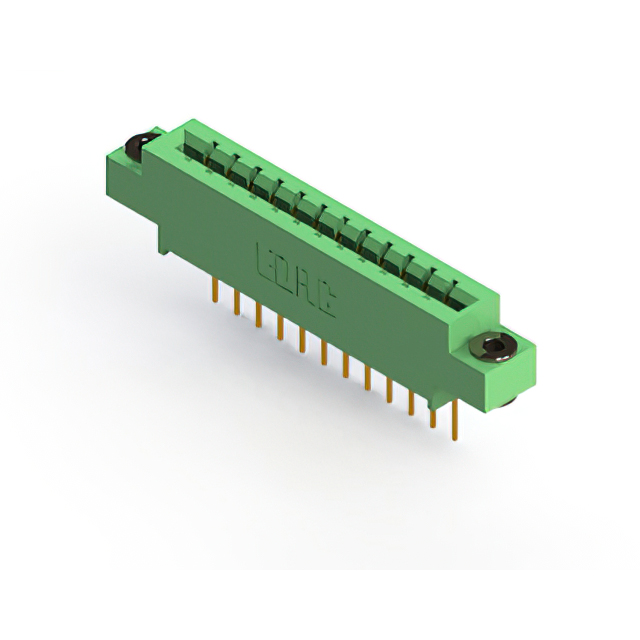

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Single Edge | 0.156 " | 3.96 mm | Cantilever | 3.96 mm | 0.156 in | Solder | 12 | 125 °C | -40 C | Copper Alloy | 0.25 Ám | 10 Áin | 12 | Single | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | ||||

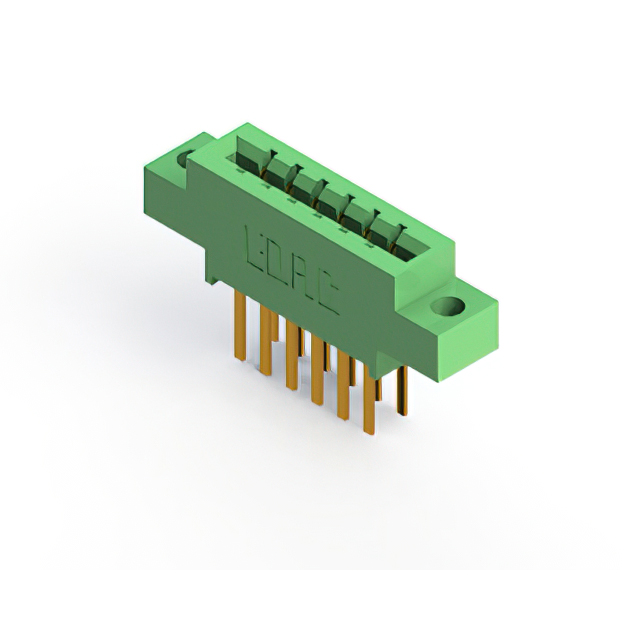

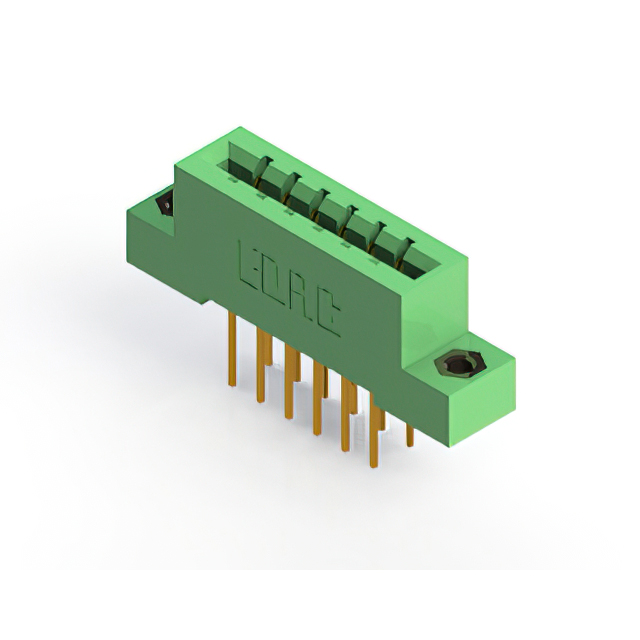

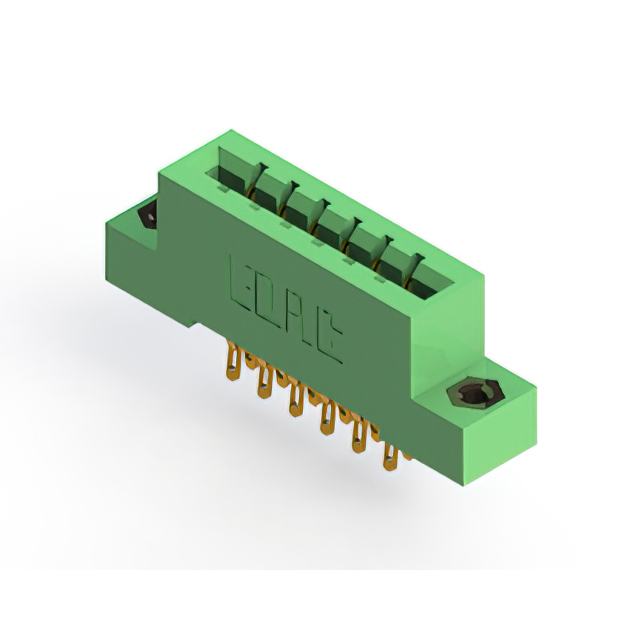

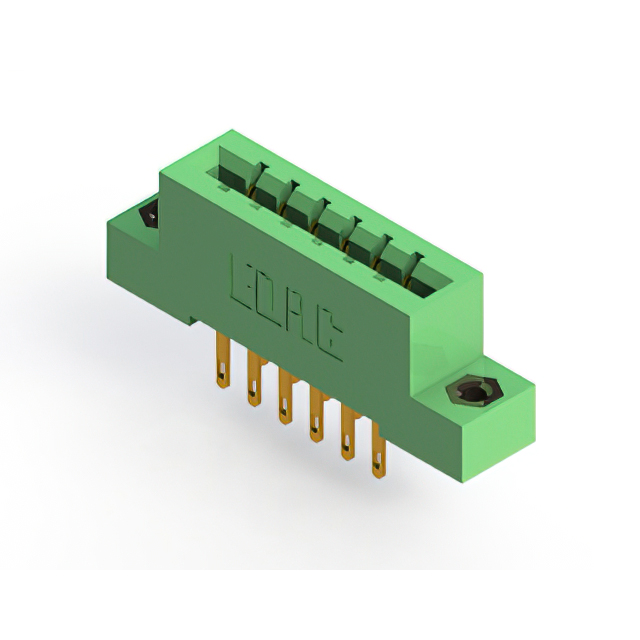

 EDAC Inc. | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | Cantilever | 3.96 mm | 0.156 in | Solder Eyelet(s) | 12 | 125 °C | -40 C | Copper Alloy | 0.25 Ám | 10 Áin | 6 | Dual | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 2 | 2 | M3 Threaded Insert Top Mount Opening | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Right Angle Through Hole | Non Specified - Dual Edge | Cantilever | 3.96 mm | 0.156 in | Solder | 12 | 125 °C | -40 C | Copper Alloy | 0.25 Ám | 10 Áin | 6 | Dual | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 2 | 2 | 4-40 Flush Mount Threaded Insert Top Opening | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Board Edge Straddle Mount | Non Specified - Dual Edge | 0.116 " | 2.95 mm | Cantilever | 3.96 mm | 0.156 in | Solder | 12 | 125 °C | -40 C | Copper Alloy | 0.25 Ám | 10 Áin | 6 | Dual | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 2 | 2 | Floating Bobbin Top Mount Opening | Card Extender | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Board Edge Straddle Mount | Non Specified - Dual Edge | Cantilever | 3.96 mm | 0.156 in | Solder | 12 | 125 °C | -40 C | Copper Alloy | 0.25 Ám | 10 Áin | 6 | Dual | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 2 | 2 | Flush Mount M3 Threaded Insert Top Opening | Card Extender | ||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Single Edge | Cantilever | 3.96 mm | 0.156 in | Wire Wrap | 12 | 125 °C | -40 C | Copper Alloy | 0.25 Ám | 10 Áin | 12 | Single | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Flush Mount M3 Threaded Insert Top Opening | |||||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Single Edge | 0.128 " | 3.25 mm | Cantilever | 3.96 mm | 0.156 in | Solder | 12 | 125 °C | -40 C | Copper Alloy | 0.25 Ám | 10 Áin | 12 | Single | 1 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Side Mount Opening Unthreaded | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | 0.156 " | 3.96 mm | Cantilever | 3.96 mm | 0.156 in | Wire Wrap | 12 | 125 °C | -40 C | Copper Alloy | 0.25 Ám | 10 Áin | 6 | Dual | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 2 | 2 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Through Hole | Non Specified - Dual Edge | Cantilever | 3.96 mm | 0.156 in | Solder Eyelet(s) | 12 | 125 °C | -40 C | Copper Alloy | 0.25 Ám | 10 Áin | 6 | Dual | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 2 | 2 | 4-40 Flush Mount Threaded Insert Top Opening | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Right Angle Through Hole | Non Specified - Dual Edge | 0.156 " | 3.96 mm | Cantilever | 3.96 mm | 0.156 in | Solder | 12 | 125 °C | -40 C | Copper Alloy | 0.25 Ám | 10 Áin | 6 | Dual | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 2 | 2 |
