VC03 Series

Catalog

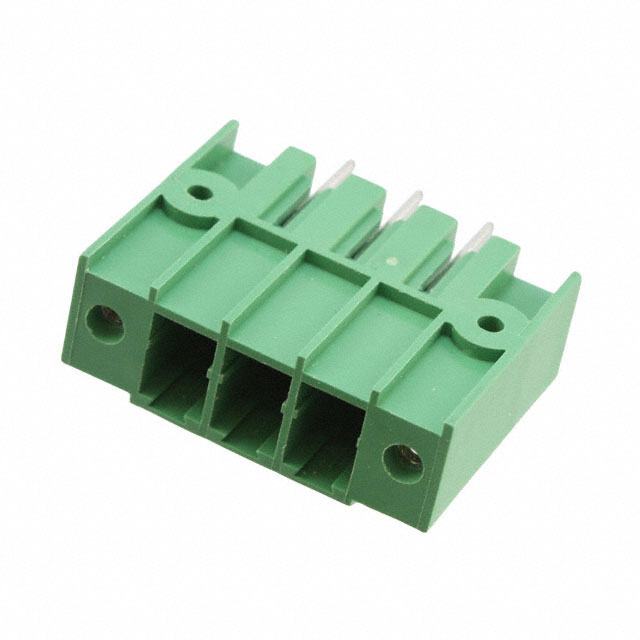

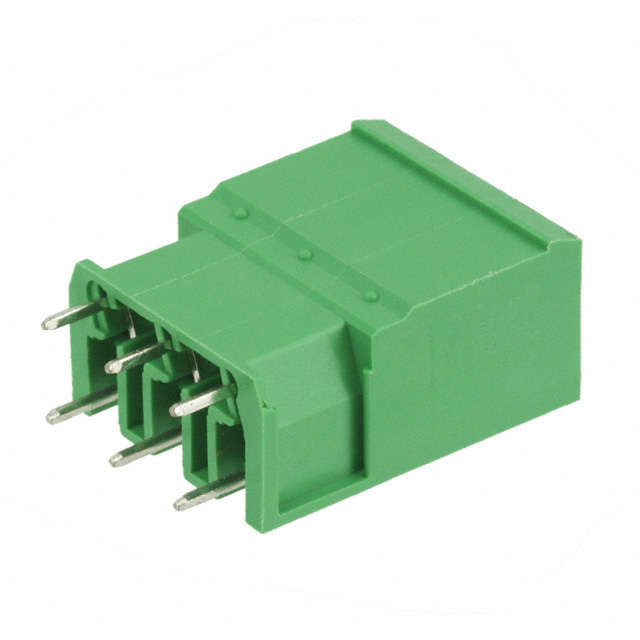

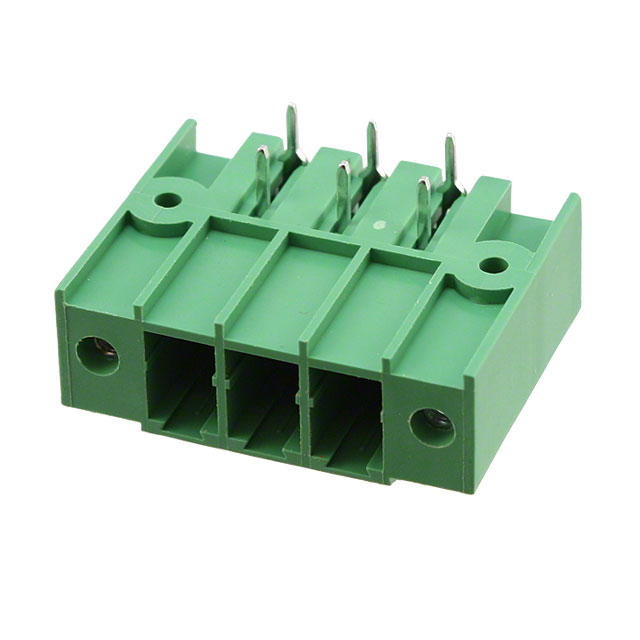

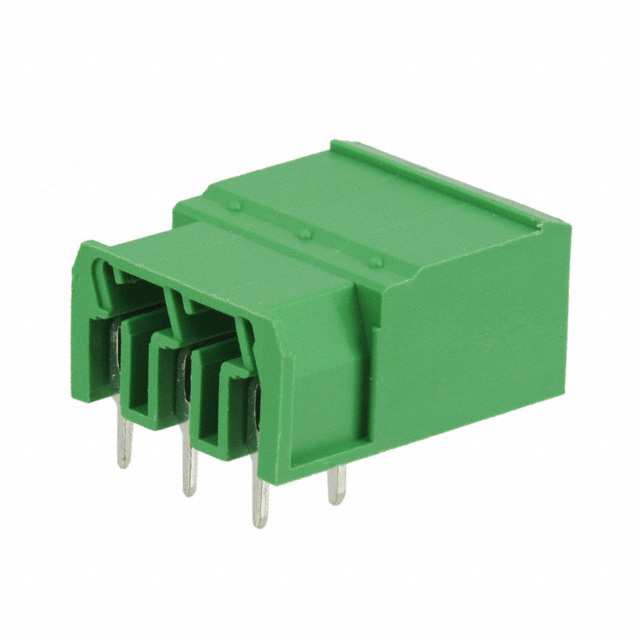

TERM BLOCK HDR 3POS 90DEG 7.62MM

Part	Mounting Type	Color	Contact Mating Finish	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - UL	Number of Levels	Material Flammability Rating	Termination Style	Pitch [x]	Pitch [x]	Contact Tail Length	Contact Tail Length	Header Orientation	Positions Per Level	Contact Material	Housing Material	Current - UL	Features	Insulation Height	Insulation Height	Type	Header Orientation
Amphenol Anytek VC0301500000G	Through Hole	Green	Tin	-40 °C	115 °C	300 V	1	UL94 V-0	Solder	0.3 in	7.62 mm	5 mm	0.197 in	90° Right Angle	3	Copper Alloy	Thermoplastic Resin	32 A	Mating Flange	14.3 mm	0.563 in	Blade Pins Header Shrouded (4 Side)
Amphenol Anytek VC03035C0000G	Through Hole	Green				300 V	1		Solder	0.3 in	7.62 mm			Right Angle Under Board	3			32 A				Blade Pins Header Shrouded (4 Side)	90 °
Amphenol Anytek VC0300500000G	Through Hole	Green	Tin	-40 °C	115 °C	300 V	1	UL94 V-0	Solder	0.3 in	7.62 mm	5 mm	0.197 in	90° Right Angle	3	Copper Alloy	Thermoplastic Resin	32 A		14.3 mm	0.563 in	Header Male Pins Shrouded (4 Side)
Amphenol Anytek VC0301510000G	Through Hole	Green	Tin	-40 °C	115 °C	300 V	1	UL94 V-0	Solder	0.3 in	7.62 mm	5 mm	0.197 in	Vertical	3	Copper Alloy	Thermoplastic Resin	32 A	Mating Flange	29 mm	1.142 in	Blade Pins Header Shrouded (4 Side)
Amphenol Anytek VC0301000000G	Through Hole	Black	Tin	-40 °C	115 °C	300 V	1	UL94 V-0	Solder	0.3 in	7.62 mm	5 mm	0.197 in	90° Right Angle	3	Copper Alloy	Thermoplastic Resin	32 A	Mating Flange	14.3 mm	0.563 in	Blade Pins Header Shrouded (4 Side)
Amphenol Anytek VC03015B0000G	Through Hole	Green	Tin	-40 °C	115 °C	300 V	1	UL94 V-0	Solder	0.3 in	7.62 mm	5 mm	0.197 in	90° Right Angle	3	Copper	Thermoplastic	41 A	Mounting Flange	13.6 mm	0.535 in	Blade Pins Header Shrouded (4 Side)
Amphenol Anytek VC0300510000G	Through Hole	Green	Tin	-40 °C	115 °C	300 V	1	UL94 V-0	Solder	0.3 in	7.62 mm	5 mm	0.197 in	Vertical	3	Copper Alloy	Thermoplastic Resin	32 A		29 mm	1.142 in	Header Male Pins Shrouded (4 Side)
Amphenol Anytek VC030150B000G	Through Hole	Green				300 V	1		Solder	0.3 in	7.62 mm			90° Right Angle	3			32 A	Mounting Flange			Blade Pins Header Shrouded (4 Side)
