DC56-11 Series

Catalog

7 SEGMENT LED DISPLAY, MECHANICALLY RUGGED, GREEN, 20 MA, 2.2 V, 11000 µCD, 2, 14.22 MM

Part	Voltage - Forward (Vf) (Typ)	Current - Test	Digit/Alpha Size	Digit/Alpha Size	Package / Case [x]	Package / Case [x]	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Characters	Wavelength - Peak	Millicandela Rating	Color	Display Type	Power Dissipation (Max) [Max]	Common Pin	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
Kingbright DC56-11GWA	2.2 V	20 mA	0.56 in	14.22 mm	15.24 mm	0.6 in	18-DIP	0.315 in	19.05 mm	0.984 "	0.75 in	8 mm	25 mm	2	565 nm	11 mcd	Green	7-Segment	62.5 mW	Common Cathode

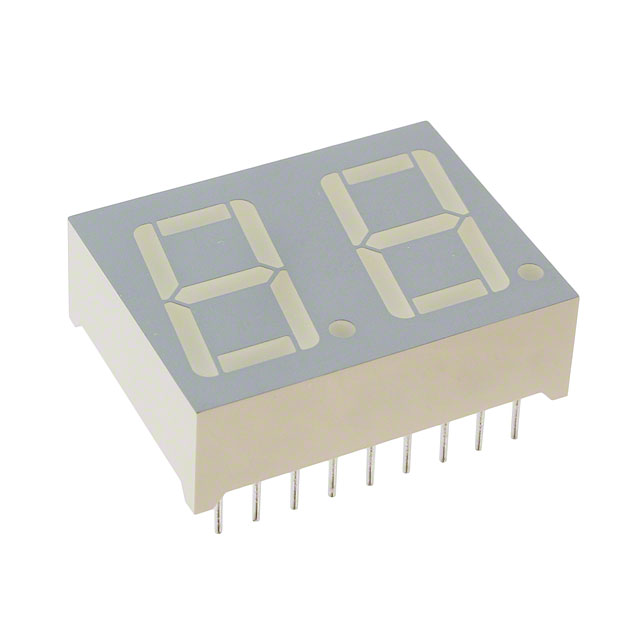

Kingbright DC56-11SRWA	1.85 V	20 mA	0.56 in	14.22 mm	15.24 mm	0.6 in	18-DIP	0.315 in	19.05 mm	0.984 "	0.75 in	8 mm	25 mm	2	660 nm	28 mcd	Red	7-Segment	75 mw	Common Cathode
Kingbright DC56-11YWA	2.1 V	20 mA	0.56 in	14.22 mm	15.24 mm	0.6 in	18-DIP	0.315 in	19.05 mm	0.984 "	0.75 in	8 mm	25 mm	2	590 nm	6.5 mcd	Yellow	7-Segment	75 mw	Common Cathode

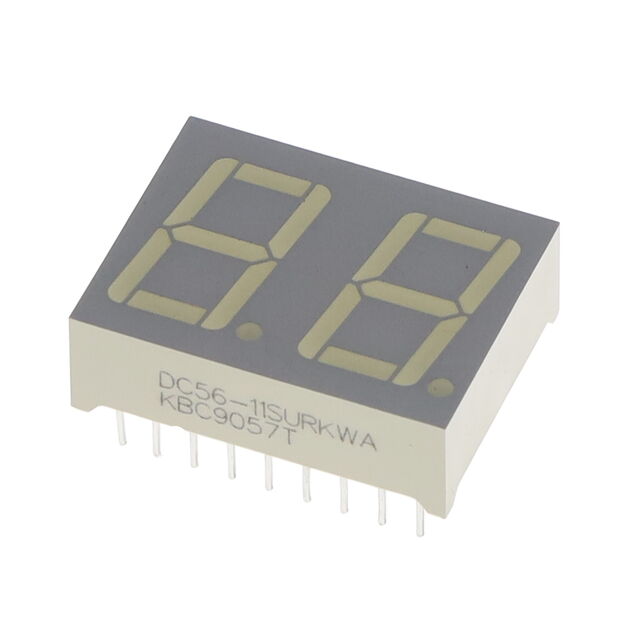

Kingbright DC56-11SURKWA	1.95 V	20 mA	0.56 in	14.22 mm	15.24 mm	0.6 in	18-DIP	0.268 "		0.75 in	0.984 "			2	645 nm	85 mcd	Red	7-Segment	75 mw	Common Cathode	6.8 mm	25 mm	19.05 mm
Kingbright DC56-11EWA	2 V	20 mA	0.56 in	14.22 mm	15.24 mm	0.6 in	18-DIP	0.315 in	19.05 mm	0.984 "	0.75 in	8 mm	25 mm	2	627 nm	8 mcd	Red	7-Segment	75 mw	Common Cathode
Kingbright DC56-11CGKWA	2.1 V	20 mA	0.56 in	14.22 mm	15.24 mm	0.6 in	18-DIP	0.268 "		0.75 in	0.984 "			2		35 mcd	Green	7-Segment	75 mw	Common Cathode	6.8 mm	25 mm	19.05 mm
