1218C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

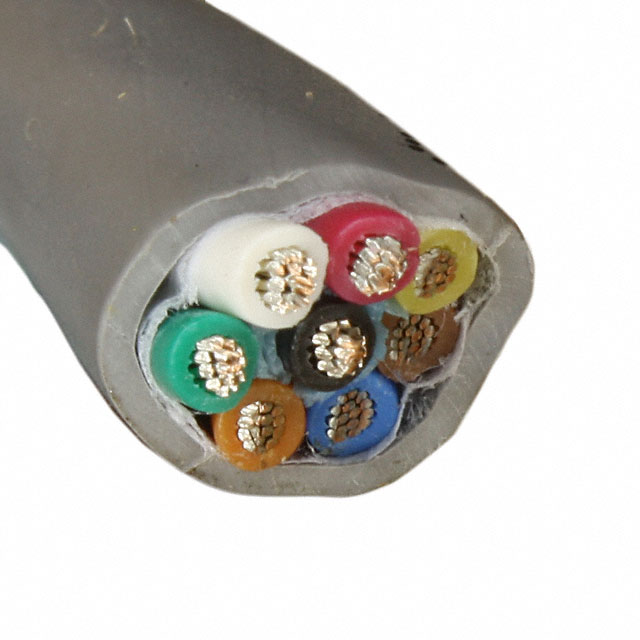

CABLE 8CON 24AWG SLATE SHLD 100'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Voltage | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Cable Type | Conductor Material | Shield Type | Usage | Jacket (Insulation) Material | Features | Number of Conductors [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 0.813 mm | 0.032 in | 24 AWG | 300 VDC | Slate | 5.44 mm | 0.214 in | 80 °C | -20 ░C | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Copper Tinned | Foil | Communication Control | Poly-Vinyl Chloride (PVC) | Drain Wire | 8 | 100 ft | 30.5 m |
