PEN.3M Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 30POS GOLD CRIMP

Part	Connector Type	Ingress Protection	Primary Material	Current Rating (Amps)	Shielding	Mounting Feature	Fastening Type	Insert Material	Contact Material	Shell Material	Orientation	Termination	Color	Shell Finish	Shell Size - Insert	Applications	Number of Positions	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Cable Opening	Cable Opening
LEMO PEN.3M.330.XLMM	Receptacle Female Sockets	IP68 - Dust Tight Waterproof	Metal	3.5 A	Shielded	Bulkhead - Front Side Nut	Threaded	Polyetheretherketone (PEEK)	Bronze	Aluminum Alloy	N (Normal)	Crimp	Gray	Nickel	330	Aerospace Automotive Aviation Military	30	Gold	1.5 Ám	59 Áin	200 °C	-55 C	Panel Mount
LEMO PEN.3M.322.XLMT	Receptacle Female Sockets	IP68 - Dust Tight Waterproof	Metal	4 A	Shielded	Bulkhead - Front Side Nut	Threaded	Polyetheretherketone (PEEK)	Bronze	Aluminum Alloy	N (Normal)	Crimp	Gray	Nickel	322	Aerospace Automotive Aviation Military	22	Gold	1.5 Ám	59 Áin	200 °C	-55 C	Panel Mount	0.591 in	15 mm

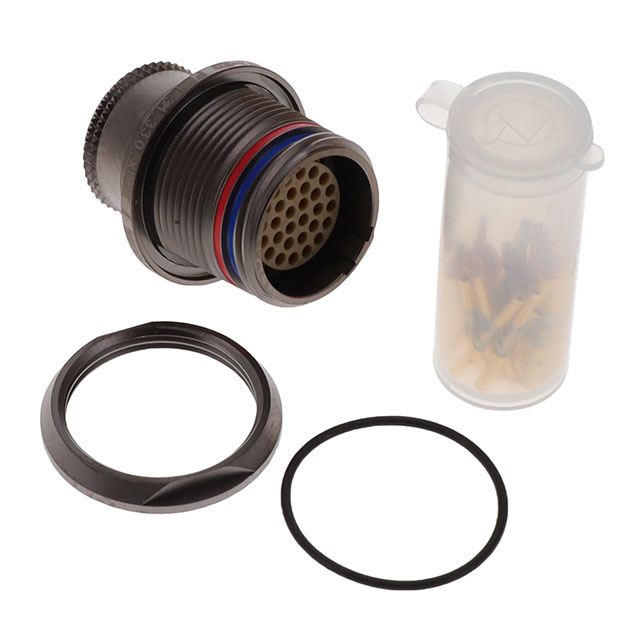

LEMO PEN.3M.330.XLMT	Receptacle Female Sockets	IP68 - Dust Tight Waterproof	Metal	3.5 A	Shielded	Bulkhead - Front Side Nut	Threaded	Polyetheretherketone (PEEK)	Bronze	Aluminum Alloy	N (Normal)	Crimp	Gray	Nickel	330	Aerospace Automotive Aviation Military	30	Gold	1.5 Ám	59 Áin	200 °C	-55 C	Panel Mount	0.591 in	15 mm
