MP-1616 Series

Catalog

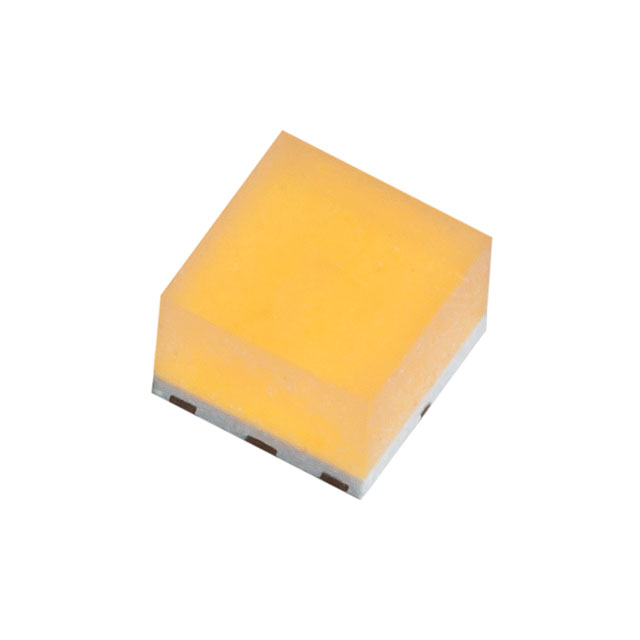

LED XNOVA CUBE NEU WHT 1616

Part	Thermal Resistance of Package	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Current - Max [Max]	Color	Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	CCT (K)	Mounting Type	Flux @ 25°C, Current - Test	CRI (Color Rendering Index)	Viewing Angle	Package / Case
Luminus Devices Inc. MP-1616-1100-40-95	22 °C/W	3.5 V	1616	0.063 "	1.6 mm	0.063 "	1.6 mm	101 lm/W	200 mA	Neutral White	150 mA	0.039 in	1 mm	4000 K	Surface Mount	53 lm	95	170 °	0606 (1616 Metric)
Luminus Devices Inc. MP-1616-2103-65-90	8 °C/W	6.2 V	1616	0.063 "	1.6 mm	0.063 "	1.6 mm	119 lm/W	240 mA	Cool White	150 mA	0.029 in	0.73 mm	6500 K	Surface Mount	111 lm	90	135 °	0606 (1616 Metric)
Luminus Devices Inc. MP-1616-1103-50-90	22 °C/W	3.3 V	1616	0.063 "	1.6 mm	0.063 "	1.6 mm	117 lm/W	200 mA	Cool White	150 mA	0.029 in	0.73 mm	5000 K	Surface Mount	58 lm	90	135 °	0606 (1616 Metric)
Luminus Devices Inc. MP-1616-2100-30-80	8 °C/W	6.2 V	1616	0.063 "	1.6 mm	0.063 "	1.6 mm	127 lm/W	200 mA	Warm White	150 mA	0.039 in	1 mm	3000 K	Surface Mount	118 lm	80	170 °	0606 (1616 Metric)
Luminus Devices Inc. MP-1616-1100-57-95	22 °C/W	3.5 V	1616	0.063 "	1.6 mm	0.063 "	1.6 mm	101 lm/W	200 mA	Cool White	150 mA	0.039 in	1 mm	5700 K	Surface Mount	53 lm	95	170 °	0606 (1616 Metric)
Luminus Devices Inc. MP-1616-1100-27-90	22 °C/W	3.3 V	1616	0.063 "	1.6 mm	0.063 "	1.6 mm	107 lm/W	200 mA	Warm White	150 mA	0.039 in	1 mm	2700 K	Surface Mount	53 lm	90	170 °	0606 (1616 Metric)
Luminus Devices Inc. MP-1616-2103-40-90	8 °C/W	6.2 V	1616	0.063 "	1.6 mm	0.063 "	1.6 mm	118 lm/W	240 mA	Neutral White	150 mA	0.029 in	0.73 mm	4000 K	Surface Mount	110 lm	90	135 °	0606 (1616 Metric)
Luminus Devices Inc. MP-1616-1100-57-70
Luminus Devices Inc. MP-1616-2103-35-90	8 °C/W	6.2 V	1616	0.063 "	1.6 mm	0.063 "	1.6 mm	117 lm/W	240 mA	Warm White	150 mA	0.029 in	0.73 mm	3500 K	Surface Mount	109 lm	90	135 °	0606 (1616 Metric)
Luminus Devices Inc. MP-1616-1100-57-80	22 °C/W	3.5 V	1616	0.063 "	1.6 mm	0.063 "	1.6 mm		200 mA	Cool White	150 mA	0.039 in	1 mm	5700 K	Surface Mount	65 lm	80	170 °	0606 (1616 Metric)
