1102271 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

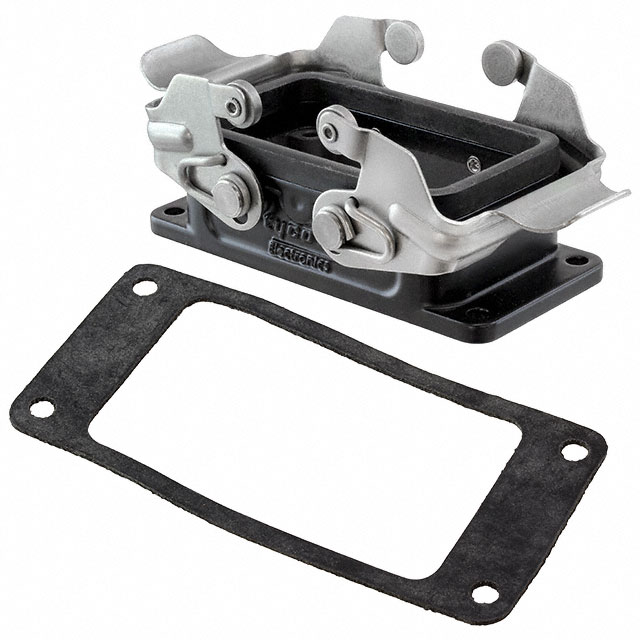

CONN BASE BOTTOM ENTRY SZ4
| Part | Lock Location | Housing Color | Housing Finish | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Housing Material | Connector Type | Size | Operating Temperature [Max] | Operating Temperature [Min] | Style | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Locking Clip (2) on Base Bottom | Black | Aluminum Oxide | 28.5 mm | 1.122 " | 1.713 in | 43.5 mm | 3.661 " | 93 mm | Aluminum Alloy Die Cast | Base - Panel Mount | 4 | 80 °C | -40 C | Bottom Entry | IP65 - Dust Tight Water Resistant |
 TE Connectivity AMP Connectors | Locking Clip (2) on Base Bottom | Gray | Powder Coated | 28.5 mm | 1.122 " | 1.713 in | 43.5 mm | 3.661 " | 93 mm | Aluminum Alloy Die Cast | Base - Panel Mount | 4 | Bottom Entry | IP65 - Dust Tight Water Resistant | ||
TE Connectivity AMP Connectors | Locking Clip (1) on Base Bottom | Gray | Powder Coated | 28.5 mm | 1.122 " | 1.713 in | 43.5 mm | 3.661 " | 93 mm | Aluminum Alloy Die Cast | Base - Panel Mount | 4 | Bottom Entry | IP65 - Dust Tight Water Resistant |
