895-007 Series
Manufacturer: EDAC Inc.
Catalog

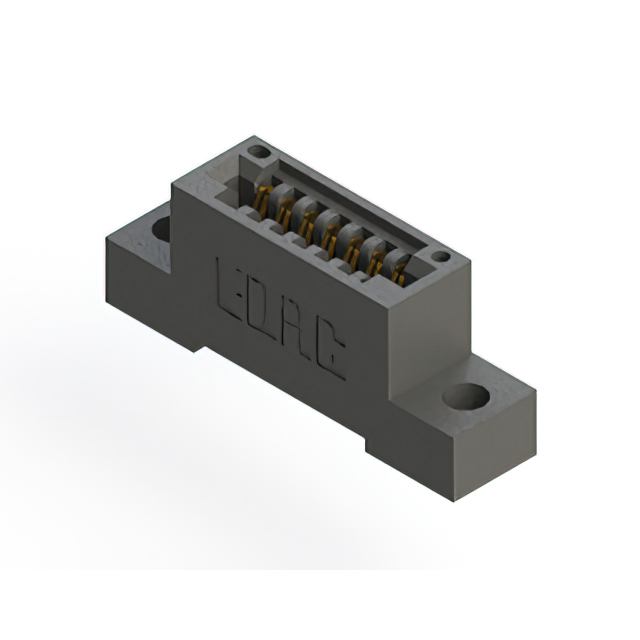

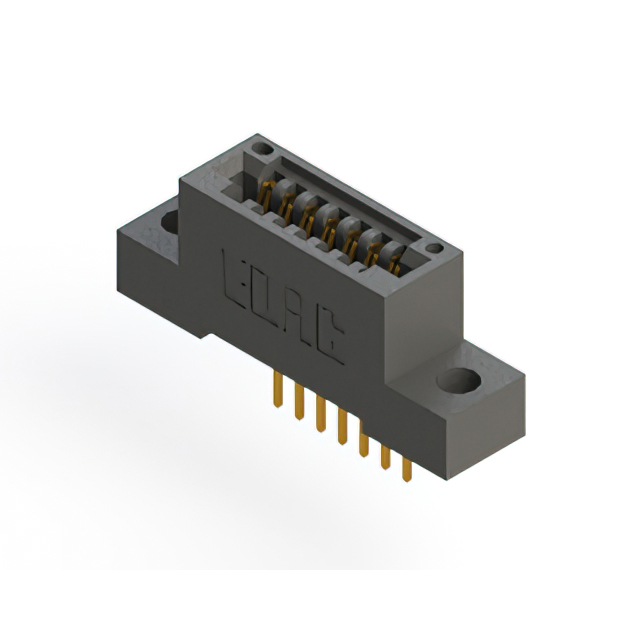

CONN EDGE SINGLE FML 7POS 0.100
...
| Part | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Finish | Number of Positions/Bay/Row [custom] | Material - Insulation | Gender | Card Type | Number of Rows | Color | Contact Type | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination Rows | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Termination | Mounting Type | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Single | 125 °C | -40 °C | 7 | Gold | 7 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 1 | Black | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 1 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Through Hole | ||

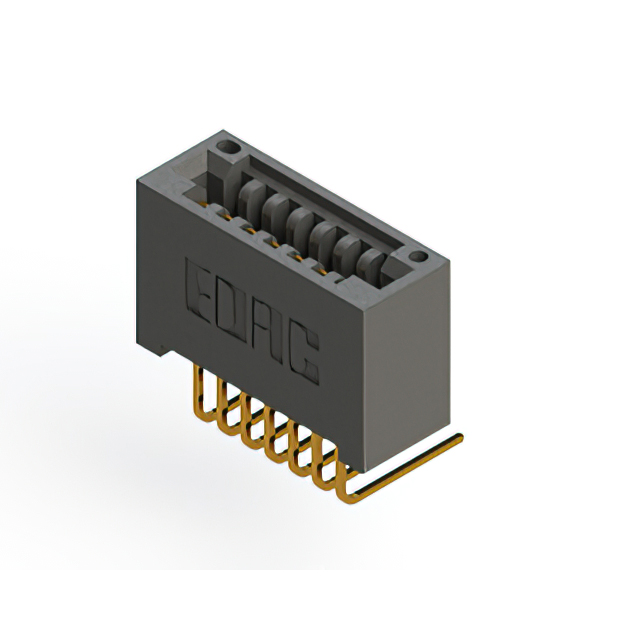

 EDAC Inc. | Single | 125 °C | -40 °C | 7 | Gold | 7 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 1 | Black | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Through Hole Right Angle | |||||
 EDAC Inc. | Single | 125 °C | -40 °C | 7 | Gold | 7 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 1 | Black | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 1 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Through Hole | ||
 EDAC Inc. | Single | 125 °C | -40 °C | 7 | Gold | 7 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 1 | Black | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 1 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Through Hole | ||
 EDAC Inc. | Single | 125 °C | -40 °C | 7 | Gold | 7 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 1 | Black | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 1 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Through Hole | ||
 EDAC Inc. | Single | 125 °C | -40 °C | 7 | Gold | 7 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 1 | Black | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Through Hole | 3.25 mm | 0.128 in | |||
 EDAC Inc. | Single | 125 °C | -40 °C | 7 | Gold | 7 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 1 | Black | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 1 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Through Hole | ||
 EDAC Inc. | Single | 125 °C | -40 °C | 7 | Gold | 7 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 1 | Black | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Through Hole | 3.25 mm | 0.128 in | |||
 EDAC Inc. | Single | 125 °C | -40 °C | 7 | Gold | 7 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 1 | Black | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | 1 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Through Hole | 3.25 mm | 0.128 in | ||
 EDAC Inc. | Single | 125 °C | -40 °C | 7 | Gold | 7 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 1 | Black | Cantilever | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | 1 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Through Hole |
