IL13-U Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

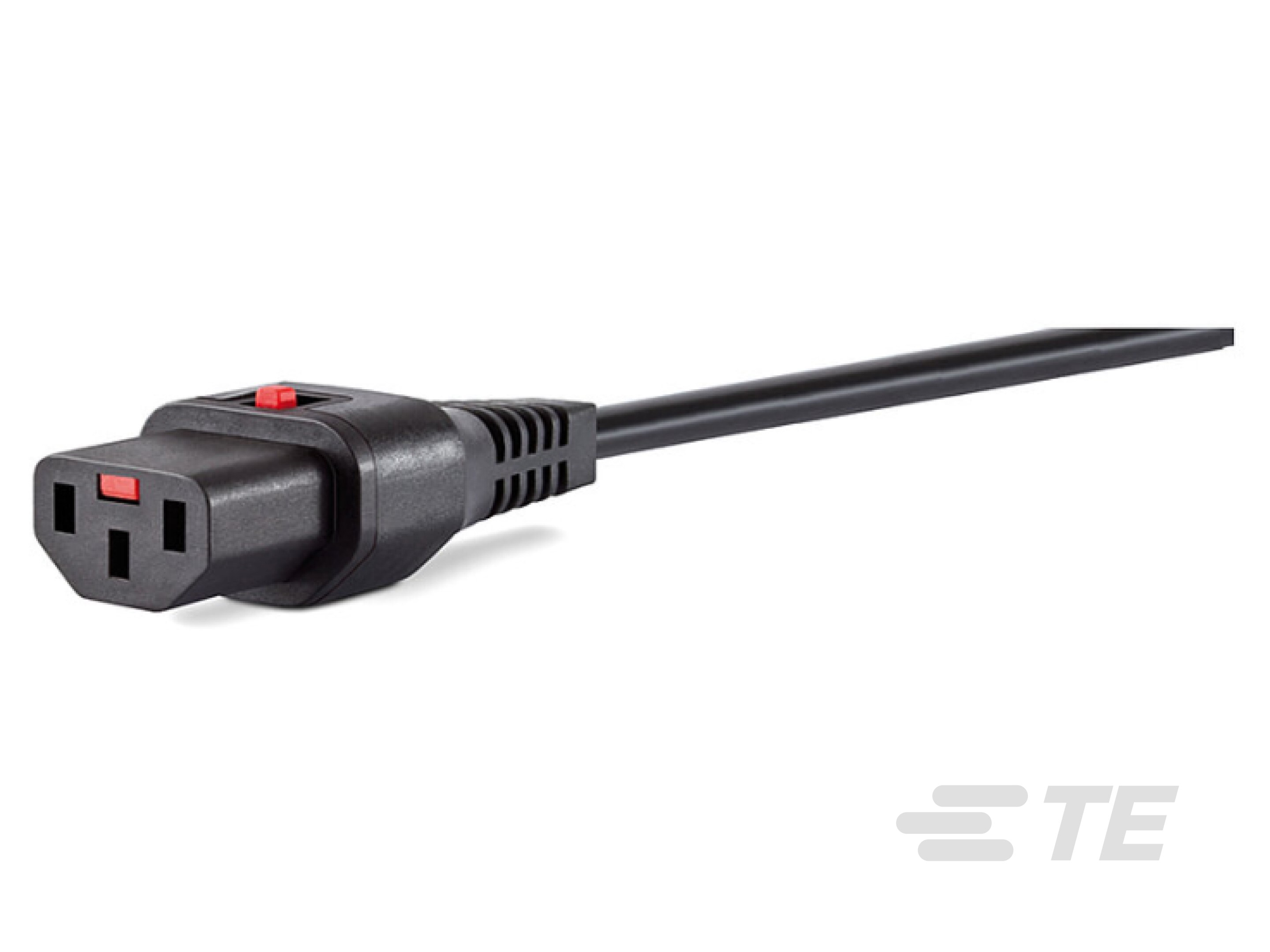

CRD 18AWG NEMA5-15P - 320C13 12'
| Part | Approval Agency Marking | Number of Conductors | Approved Countries | Color | Style | Operating Temperature [Min] | Operating Temperature [Max] | Cord Type | Current Rating (Amps) | 1st Connector | Shielding | 2nd Connector | Wire Gauge | Voltage Rating | Length | Length | Features | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | cUL UL | 3 | Canada United States | Black | Male Pins (Blades) to Female Sockets (Slots) | -25 °C | 70 °C | SJT | 10 A | NEMA 5-15P | Unshielded | IEC 320-C13 | 18 AWG | 125 VAC | 3.66 m | 12 ft | Hospital Grade Locking | |
 TE Connectivity AMP Connectors | cUL UL | 3 | Canada United States | Black | Male Pins (Blades) to Female Sockets (Slots) | -25 °C | 70 °C | SVT | 10 A | NEMA 5-15P | Unshielded | IEC 320-C13 | 18 AWG | 125 VAC | 3.66 m | 12 ft | Locking | |
 TE Connectivity AMP Connectors | cUL UL | 3 | Canada United States | Black | Male Pins (Blades) to Female Sockets (Slots) | -25 °C | 70 °C | SVT | 10 A | NEMA 5-15P | Unshielded | IEC 320-C13 | 18 AWG | 125 VAC | 2.74 m | Locking | 9 ft | |
 TE Connectivity AMP Connectors | cUL UL | 3 | Canada United States | Black | Male Pins (Blades) to Female Sockets (Slots) | -25 °C | 70 °C | SJT | 10 A | NEMA 5-15P | Unshielded | IEC 320-C13 | 18 AWG | 125 VAC | 1.83 m | 6 ft | Hospital Grade Locking | |
TE Connectivity AMP Connectors | cUL UL | 3 | Canada United States | Black | Male Pins (Blades) to Female Sockets (Slots) | -25 °C | 70 °C | SVT | 10 A | NEMA 5-15P | Unshielded | IEC 320-C13 | 18 AWG | 125 VAC | 3.66 m | 12 ft | Locking | |
TE Connectivity AMP Connectors | cUL UL | 3 | Canada United States | Black | Male Pins (Blades) to Female Sockets (Slots) | -25 °C | 70 °C | SVT | 10 A | NEMA 5-15P | Unshielded | IEC 320-C13 | 18 AWG | 125 VAC | 2.74 m | Locking | 9 ft | |
TE Connectivity AMP Connectors | cUL UL | 3 | Canada United States | Black | Male Pins (Blades) to Female Sockets (Slots) | -25 °C | 70 °C | SJT | 10 A | NEMA 5-15P | Unshielded | IEC 320-C13 | 18 AWG | 125 VAC | 1.83 m | 6 ft | Hospital Grade Locking | |
TE Connectivity AMP Connectors | cUL UL | 3 | Canada United States | Black | Male Pins (Blades) to Female Sockets (Slots) | -25 °C | 70 °C | SJT | 10 A | NEMA 5-15P | Unshielded | IEC 320-C13 | 18 AWG | 125 VAC | 3.66 m | 12 ft | Hospital Grade Locking |
