LY4-DC Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE 4PDT 10A 36V
| Part | Coil Resistance | Switching Voltage | Release Time | Coil Type | Must Operate Voltage | Contact Rating (Current) | Load - Max Switching | Mounting Type | Contact Material | Coil Current | Coil Voltage | Termination Style | Contact Form | Operate Time | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Must Release Voltage | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

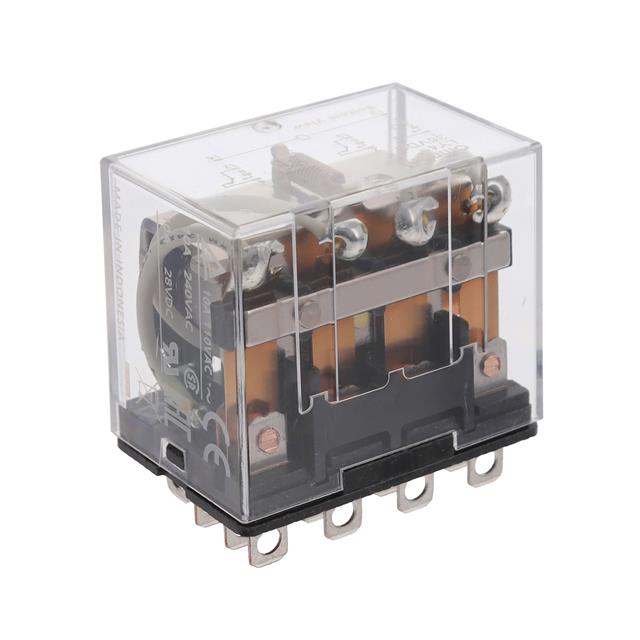

 Omron Electronics Inc-EMC Div | 863 Ohms | 125 VDC 250 VAC | 25 ms | Non Latching | 28.8 VDC | 10 A | 1250 W 2500 VA | Socketable | Silver Alloy | 41.7 mA | 36 VDC | Plug In | 4PDT (4 Form C) | 25 ms | CE CSA TUV UR | -25 °C | 40 °C | 3.6 VDC | General Purpose |
 Omron Electronics Inc-EMC Div | 1.6 kOhms | 125 VDC 250 VAC | 25 ms | Non Latching | 38.4 VDC | 10 A | 1250 W 2500 VA | Socketable | Silver Alloy | 30 mA | 48 VDC | Plug In | 4PDT (4 Form C) | 25 ms | CE CSA TUV UR | -25 °C | 40 °C | 4.8 VDC | General Purpose |
 Omron Electronics Inc-EMC Div | 100 Ohms | 125 VDC 250 VAC | 25 ms | Non Latching | 9.6 VDC | 10 A | 1250 W 2500 VA | Socketable | Silver Alloy | 120 mA | 12 VDC | Plug In | 4PDT (4 Form C) | 25 ms | CE CSA TUV UR | -25 °C | 40 °C | 1.2 VDC | General Purpose |

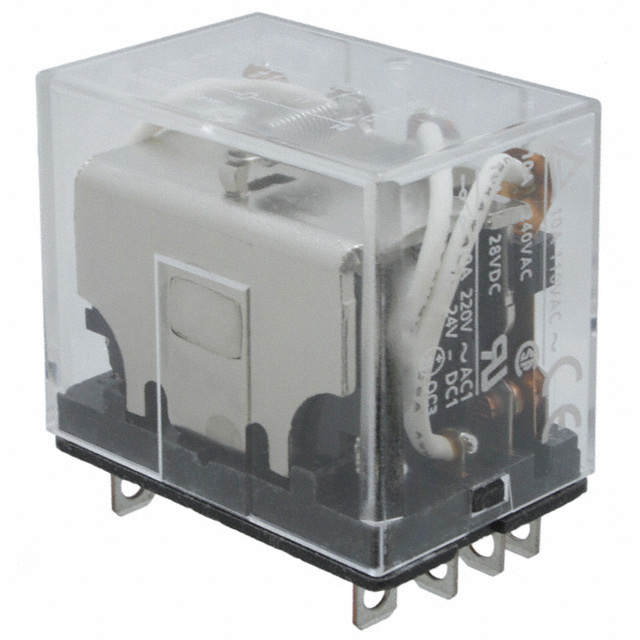

 Omron Electronics Inc-EMC Div | 350 Ohms | 125 VDC 250 VAC | 25 ms | Non Latching | 19.2 VDC | 10 A | 1250 W 2500 VA | Socketable | Silver Alloy | 69 mA | 24 VDC | Plug In | 4PDT (4 Form C) | 25 ms | CE CSA TUV UR | -25 °C | 40 °C | 2.4 VDC | General Purpose |
