OSTNR18 Series

Catalog

3.5MM TERM BLOCK HEADER W/ FLANG

Part	Material Flammability Rating	Contact Material	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Type	Pitch	Pitch	Color	Number of Levels	Mounting Type	Current - UL	Contact Mating Finish	Header Orientation	Termination Style	Positions Per Level	Voltage - UL	Number of Positions	Features	Insulation Height [z]	Insulation Height [z]

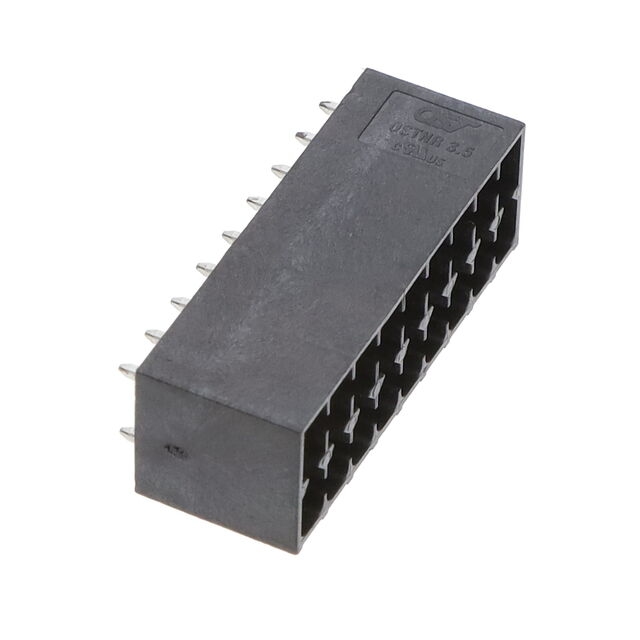

On Shore Technology Inc. OSTNR181100	UL94 V-0	Copper	11.6 mm	0.457 in	2 mm	0.079 in	Liquid Crystal Polymer (LCP)	115 °C	-40 C	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 "	Black	2	Through Hole	8 A	Tin	Vertical	Solder	9	300 V	18
On Shore Technology Inc. OSTNR181200	UL94 V-0	Copper	11.6 mm	0.457 in	2 mm	0.079 in	Liquid Crystal Polymer (LCP)	115 °C	-40 C	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 "	Black	2	Through Hole	8 A	Tin	Vertical	Solder	9	300 V	18	Mating Flange

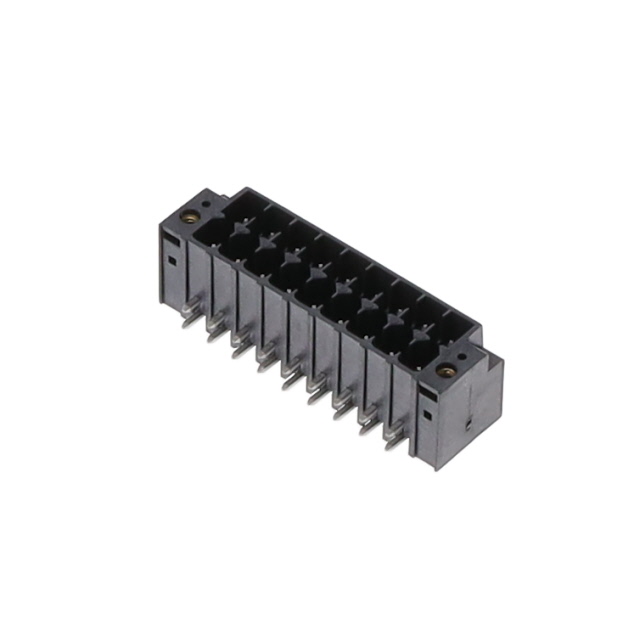

On Shore Technology Inc. OSTNR181201	UL94 V-0	Copper			2 mm	0.079 in	Liquid Crystal Polymer (LCP)	115 °C	-40 C	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 "	Black	2	Through Hole	8 A	Tin	90° Right Angle	Solder	9	150 V	18	Mating Flange	10.8 mm	0.425 in
On Shore Technology Inc. OSTNR181101	UL94 V-0	Copper			2 mm	0.079 in	Liquid Crystal Polymer (LCP)	115 °C	-40 C	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 "	Black	2	Through Hole	8 A	Tin	90° Right Angle	Solder	9	150 V	18		10.8 mm	0.425 in
