R11267 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

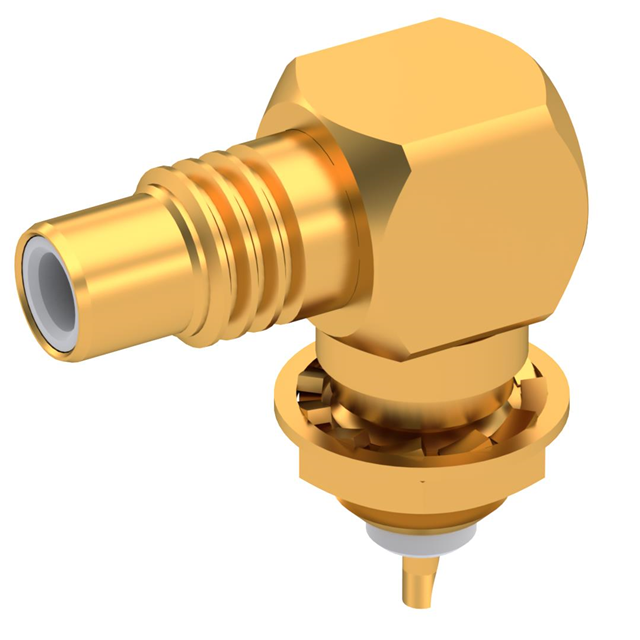

SMC / RIGHT ANGLE BULKHEAD JACK
| Part | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Center Contact Plating | Body Finish | Mating Cycles | Mounting Feature | Impedance | Number of Ports | Connector Type | Fastening Type | Mounting Type | Frequency - Max [Max] | Contact Termination | Housing Color | Connector Style | Center Contact Material | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 335 V | Gold | Gold | 500 | Bulkhead - Rear Side Nut | 50 Ohms | 1 | Jack Male Pin | Threaded | Panel Mount Right Angle | 10 GHz | Solder Cup | Gold | SMC | Brass | Solder |
