BU280Z Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

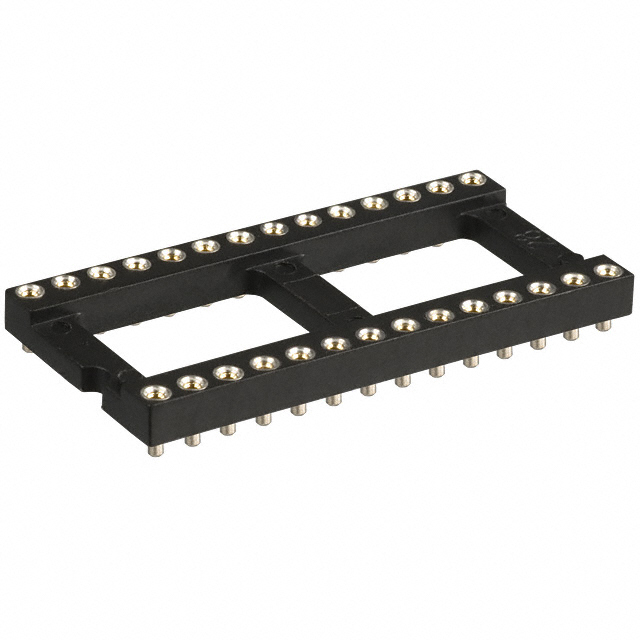

CONN IC DIP SOCKET 28POS GOLD
| Part | Termination Post Length | Termination Post Length | Material Flammability Rating | Current Rating (Amps) | Contact Resistance | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Contact Material - Mating | Pitch - Post | Pitch - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Type [custom] | Type [custom] | Type | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Mounting Type | Termination | Contact Material - Post [custom] | Housing Material | Number of Positions or Pins (Grid) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 0.059 " | 1.5 mm | UL94 V-0 | 1 A | 7 mOhm | Flash | 78.7 µin | 2 µm | Open Frame | Beryllium Copper | 0.1 in | 2.54 mm | -55 C | 125 °C | Copper | 15.24 mm | 0.6 in | DIP | 0.1 " | 2.54 mm | Gold | Surface Mount | Solder | Brass | Polybutylene Terephthalate (PBT) Glass Filled | 28 |
