1775469 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

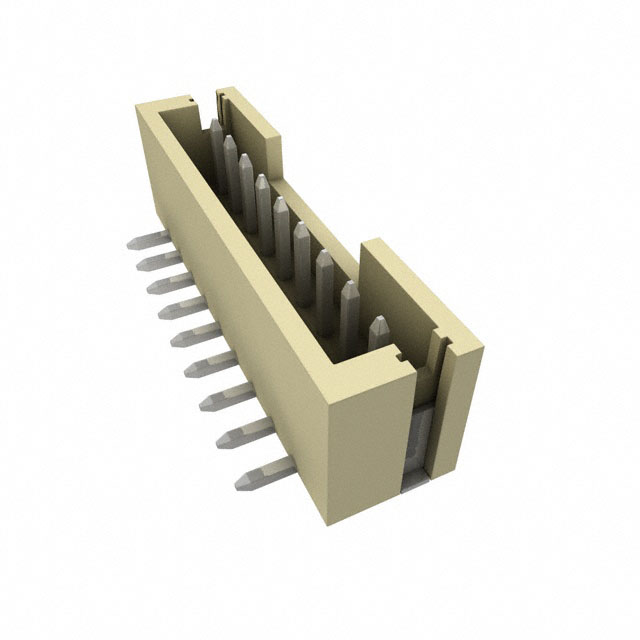

CONN HEADER SMD R/A 9POS 2MM

Part	Number of Positions Loaded	Insulation Material	Contact Shape	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Style	Contact Material	Features	Contact Type	Number of Rows	Insulation Height [custom]	Insulation Height [custom]	Number of Positions	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Finish - Post	Connector Type	Termination	Current Rating (Amps)
TE Connectivity Raychem Cable Protection 1775469-9	All	Nylon 9T Polyamide (PA9T)	Square	Shrouded - 4 Wall	0.079 in	2 mm	2.03 µm	80 µin	Natural	-25 °C	85 °C	250 VDC	UL94 V-0	0.139 in	3.53 mm	Board to Cable/Wire	Brass	Solder Retention	Male Pin	1	5.51 mm	0.217 in	9	Surface Mount Right Angle	2.03 µm	80 µin	Automotive General Purpose Industrial Medical	Tin	Header	Solder	3 A

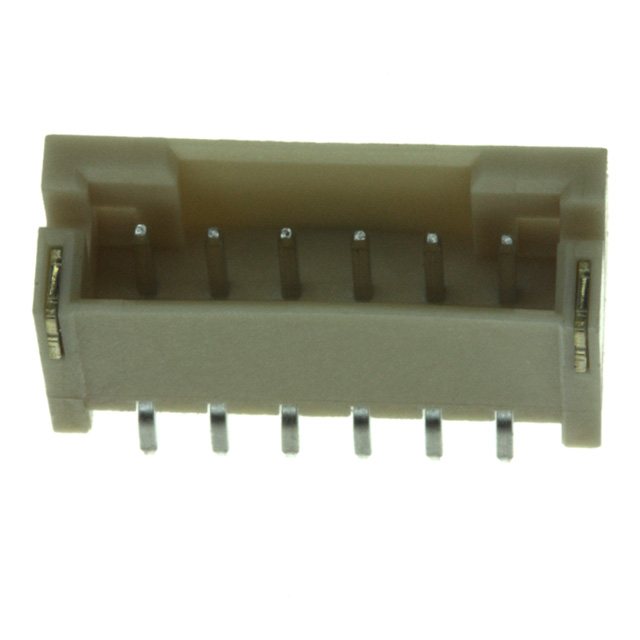

TE Connectivity Raychem Cable Protection 1775469-6	All	Nylon 9T Polyamide (PA9T)	Square	Shrouded - 4 Wall	0.079 in	2 mm	2.03 µm	80 µin	Natural	-25 °C	85 °C	250 VDC	UL94 V-0	0.139 in	3.53 mm	Board to Cable/Wire	Brass	Solder Retention	Male Pin	1	5.51 mm	0.217 in	6	Surface Mount Right Angle	2.03 µm	80 µin	Automotive General Purpose Industrial Medical	Tin	Header	Solder	3 A

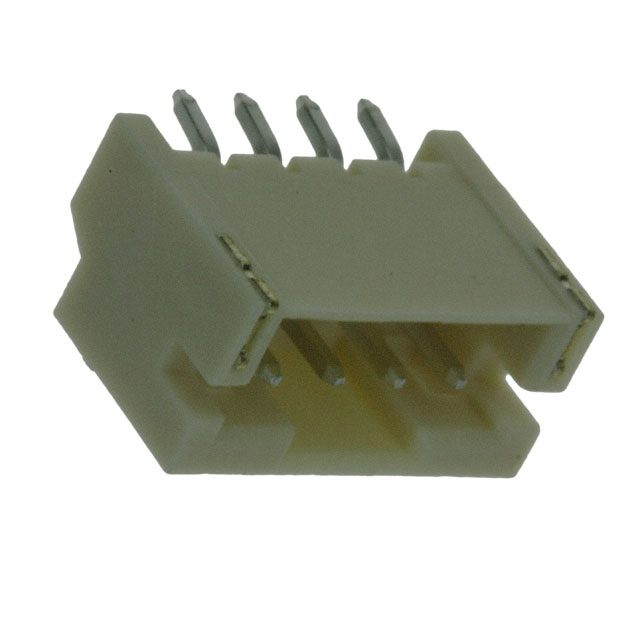

TE Connectivity Raychem Cable Protection 1775469-4	All	Nylon 9T Polyamide (PA9T)	Square	Shrouded - 4 Wall	0.079 in	2 mm	2.03 µm	80 µin	Natural	-25 °C	85 °C	250 VDC	UL94 V-0	0.139 in	3.53 mm	Board to Cable/Wire	Brass	Solder Retention	Male Pin	1	5.51 mm	0.217 in	4	Surface Mount Right Angle	2.03 µm	80 µin	Automotive General Purpose Industrial Medical	Tin	Header	Solder	3 A
