171975 Series

Manufacturer: Molex

Catalog

2.54MM PITCH SL HEADER, SINGLE ROW, RIGHT-ANGLE, LCP, SHROUDED, THROUGH HOLE, WITH PEGS, 0.75ΜM SELECTIVE GOLD (AU) PLATING, 10 CIRCUITS

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Voltage Rating	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Positions Loaded	Number of Positions	Insulation Height	Insulation Height	Contact Shape	Contact Length - Post	Contact Length - Post	Features	Material Flammability Rating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Style	Contact Finish - Post	Contact Material	Number of Rows	Insulation Color	Insulation Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Fastening Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]

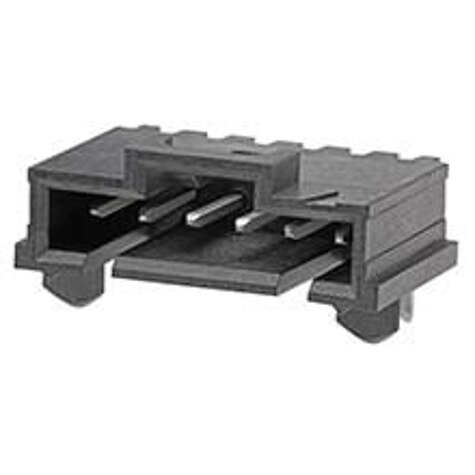

Molex 1719750010	General Purpose	2.54 µm	100 µin	Shrouded - 4 Wall	250 V	0.1 "	2.54 mm	Right Angle Through Hole	All	10	0.276 in	7 mm	Square	0.13 "	3.3 mm	Board Guide	UL94 V-0	Male Pin	100 çin	2.54 çm	Header	Board to Cable/Wire	Tin	Brass	1	Black	Liquid Crystal Polymer (LCP)	0.24 in	6.1 mm	Latch Holder	Solder	-40 C	105 ░C	3 A
Molex 1719750002				Shrouded - 4 Wall	250 V	0.1 "	2.54 mm	Right Angle Through Hole	All	2	0.276 in	7 mm	Square	0.13 "	3.3 mm	Board Guide	UL94 V-0	Male Pin	100 çin	2.54 çm	Header	Board to Cable/Wire	Tin	Brass	1	Black	Liquid Crystal Polymer (LCP)	0.24 in	6.1 mm	Latch Holder	Solder	-40 C	105 ░C	3 A
Molex 1719750008				Shrouded - 4 Wall	250 V	0.1 "	2.54 mm	Right Angle Through Hole	All	8	0.276 in	7 mm	Square	0.13 "	3.3 mm	Board Guide	UL94 V-0	Male Pin	100 çin	2.54 çm	Header	Board to Cable/Wire	Tin	Brass	1	Black	Liquid Crystal Polymer (LCP)	0.24 in	6.1 mm	Latch Holder	Solder	-40 C	105 ░C	3 A
Molex 1719750006				Shrouded - 4 Wall	250 V	0.1 "	2.54 mm	Right Angle Through Hole	All	6	0.276 in	7 mm	Square	0.13 "	3.3 mm	Board Guide	UL94 V-0	Male Pin	100 çin	2.54 çm	Header	Board to Cable/Wire	Tin	Brass	1	Black	Liquid Crystal Polymer (LCP)	0.24 in	6.1 mm	Latch Holder	Solder	-40 C	105 ░C	3 A
Molex 1719750215				Shrouded - 4 Wall	250 V	0.1 "	2.54 mm	Right Angle Through Hole	All	15	0.276 in	7 mm	Square	0.13 "	3.3 mm	Board Guide	UL94 V-0	Male Pin			Header	Board to Cable/Wire	Tin	Brass	1	Black	Liquid Crystal Polymer (LCP)	0.24 in	6.1 mm	Latch Holder	Solder	-40 C	105 ░C	3 A	Gold	29.5 µin	0.75 µm
Molex 1719750102				Shrouded - 4 Wall	250 V	0.1 "	2.54 mm	Right Angle Through Hole	All	2	0.276 in	7 mm	Square	0.13 "	3.3 mm	Board Guide	UL94 V-0	Male Pin	15 µin	0.38 µm	Header	Board to Cable/Wire	Tin	Brass	1	Black	Liquid Crystal Polymer (LCP)	0.24 in	6.1 mm	Latch Holder	Solder	-40 C	105 ░C	3 A	Gold
Molex 1719750004				Shrouded - 4 Wall	250 V	0.1 "	2.54 mm	Right Angle Through Hole	All	4	0.276 in	7 mm	Square	0.13 "	3.3 mm	Board Guide	UL94 V-0	Male Pin	100 çin	2.54 çm	Header	Board to Cable/Wire	Tin	Brass	1	Black	Liquid Crystal Polymer (LCP)	0.24 in	6.1 mm	Latch Holder	Solder	-40 C	105 ░C	3 A

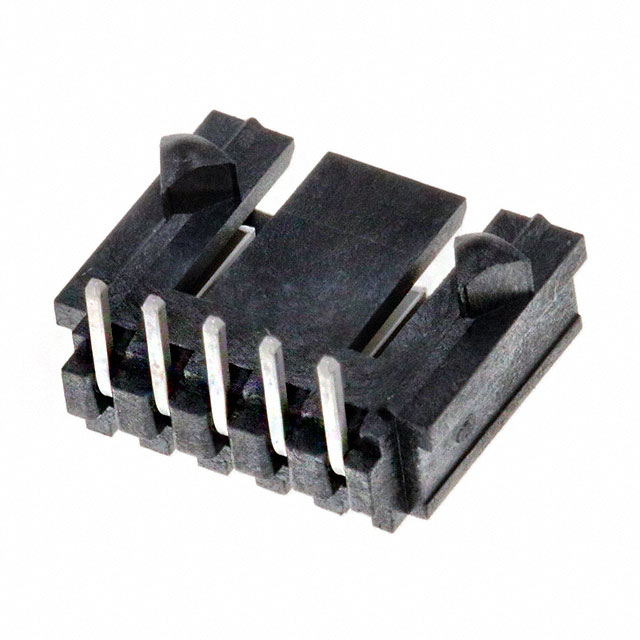

Molex 1719750005	General Purpose	2.54 µm	100 µin	Shrouded - 4 Wall	250 V	0.1 "	2.54 mm	Right Angle Through Hole	All	5	0.276 in	7 mm	Square	0.13 "	3.3 mm	Board Guide	UL94 V-0	Male Pin	100 çin	2.54 çm	Header	Board to Cable/Wire	Tin	Brass	1	Black	Liquid Crystal Polymer (LCP)	0.24 in	6.1 mm	Latch Holder	Solder	-40 C	105 ░C	3 A
