SC04-11 Series
Manufacturer: Kingbright
Beta
⌘K
DISPLAY 7SEG 0.4" SGL GRN 14DIP
| Part | Display Type | Voltage - Forward (Vf) (Typ) | Common Pin | Number of Characters | Millicandela Rating | Current - Test | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Color | Digit/Alpha Size | Digit/Alpha Size | Package / Case | Package / Case | Package / Case | Power Dissipation (Max) [Max] | Wavelength - Peak |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

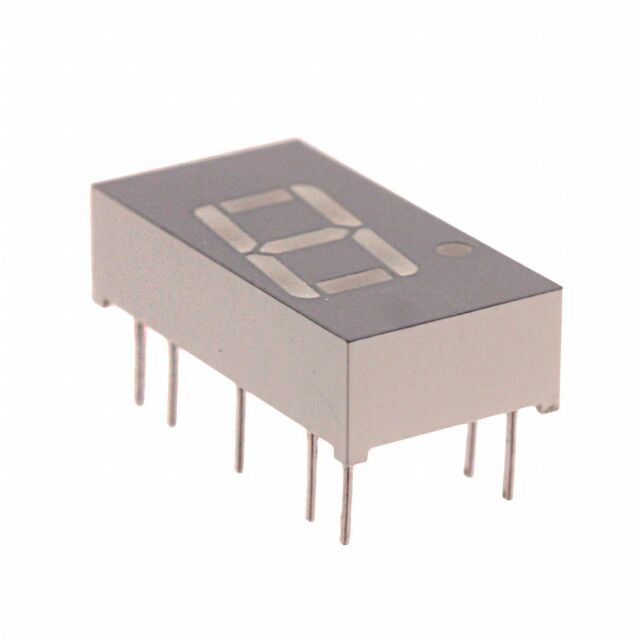

 Kingbright | 7-Segment | 2.1 V | Common Cathode | 1 | 30 mcd | 20 mA | 0.738 " | 18.75 mm | 0.386 in | 9.8 mm | 0.2 " | 0.2 " | Green | 10.16 mm | 0.4 in | 0.295 " | 10 Leads 14-DIP | 7.5 mm | 75 mw | |
 Kingbright | 7-Segment | 1.85 V | Common Cathode | 1 | 30 mcd | 20 mA | 0.738 " | 18.75 mm | 0.386 in | 9.8 mm | 0.2 " | 0.2 " | Red | 10.16 mm | 0.4 in | 0.295 " 7.5 mm | 14-DIP | 75 mw | 660 nm | |

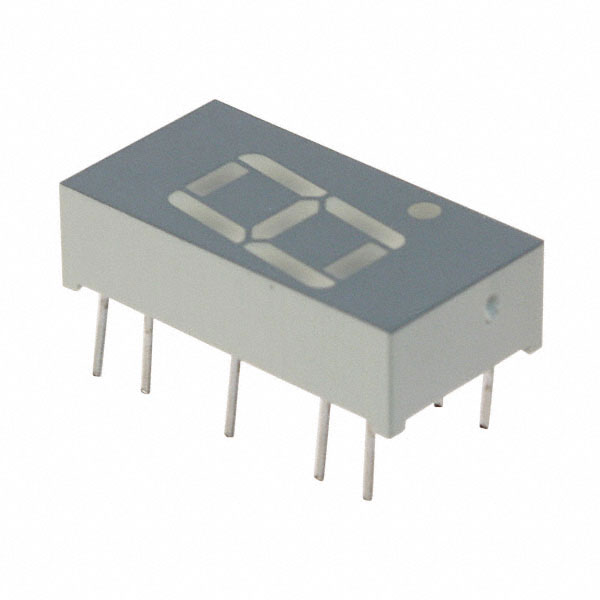

 Kingbright | 7-Segment | 1.95 V | Common Cathode | 1 | 80 mcd | 20 mA | 0.738 " | 18.75 mm | 0.386 in | 9.8 mm | 0.2 " | 0.2 " | Red | 10.16 mm | 0.4 in | 0.295 " | 10 Leads 14-DIP | 7.5 mm | 75 mw | 645 nm |

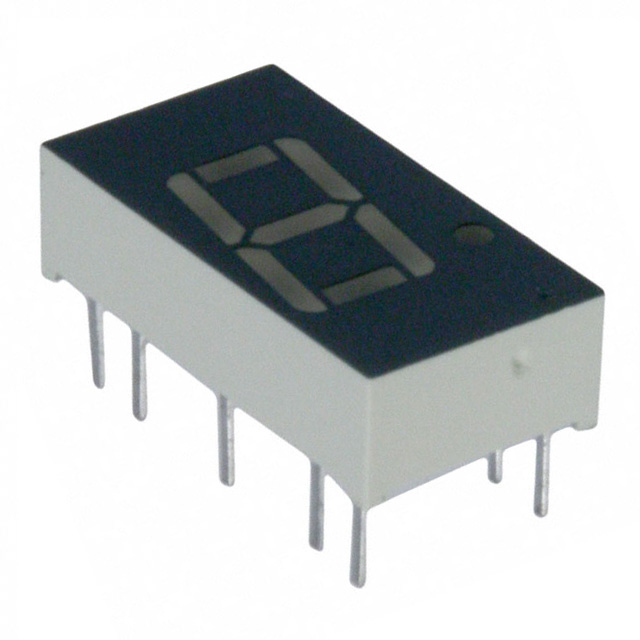

 Kingbright | 7-Segment | 2.2 V | Common Cathode | 1 | 8.6 mcd | 20 mA | 0.738 " | 18.75 mm | 0.386 in | 9.8 mm | 0.2 " | 0.2 " | Green | 10.16 mm | 0.4 in | 0.295 " 7.5 mm | 14-DIP | 62.5 mW | 565 nm | |
 Kingbright | 7-Segment | 2 V | Common Cathode | 1 | 5.6 mcd | 20 mA | 0.738 " | 18.75 mm | 0.386 in | 9.8 mm | 0.2 " | 0.2 " | Red | 10.16 mm | 0.4 in | 0.295 " 7.5 mm | 14-DIP | 75 mw | 627 nm |
