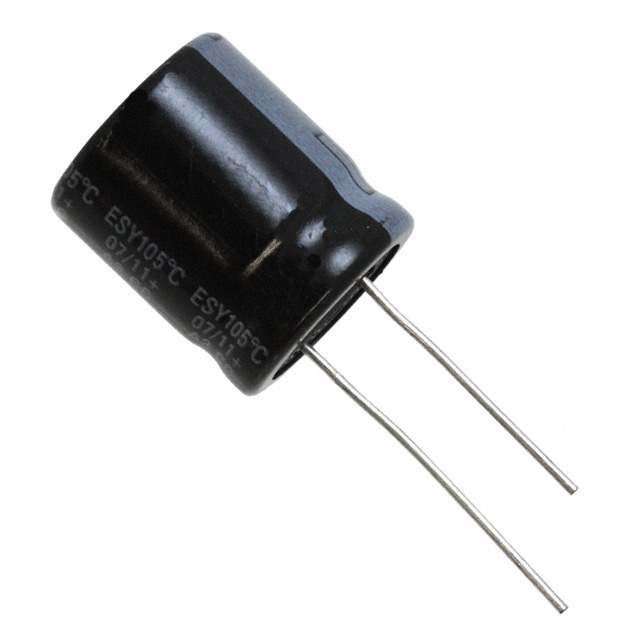

ESY687M Series
Manufacturer: KEMET
Beta
⌘K
CAP ALUM 680UF 20% 25V RADIAL TH
| Part | Applications | Ripple Current @ High Frequency | Lifetime @ Temp. | Voltage - Rated | Lead Spacing | Lead Spacing | Package / Case | Polarization | Capacitance | Operating Temperature [Min] | Operating Temperature [Max] | Ripple Current @ Low Frequency | Size / Dimension [diameter] | Size / Dimension [diameter] | ESR (Equivalent Series Resistance) | Tolerance | Mounting Type | Impedance | Height - Seated (Max) [Max] [custom] | Height - Seated (Max) [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | General Purpose | 1.82 A | 4000 Hrs | 25 VDC | 0.197 " | 5 mm | Can Radial | Polar | 680 µF | -40 C | 105 ░C | 1.365 A | 0.394 in | 10 mm | 26 mOhm | 20 % | Through Hole | 26 mOhms | 0.866 in | 22 mm |
 KEMET | General Purpose | 5000 Hrs | 63 V | 0.295 in | 7.5 mm | Can Radial | Polar | 680 µF | -40 C | 105 ░C | 1.47 A | 0.709 in | 18 mm | 51 mOhm | 20 % | Through Hole | 51 mOhms | 0.866 in | 22 mm | |
 KEMET | General Purpose | 1.25 A | 3000 Hrs | 16 V | 0.138 in | 3.5 mm | Can Radial | Polar | 680 µF | -40 C | 105 ░C | 937.5 mA | 0.315 in | 8 mm | 41 mOhm | 20 % | Through Hole | 41 mOhms | 0.866 in | 22 mm |
