395-092 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 92POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Gender | Color | Mounting Type | Termination | Number of Rows [custom] | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions/Bay/Row | Contact Type | Card Type | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Read Out | Contact Finish | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | Black | Through Hole | Solder | 2 | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Copper Alloy | 46 | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Dual | Gold | 92 | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | Black | Through Hole | Wire Wrap | 2 | -40 C | 105 ░C | Copper Alloy | 46 | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Dual | Gold | 92 | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | Black | Through Hole | Solder | 2 | -40 C | 105 ░C | Copper Alloy | 46 | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Dual | Gold | 92 | 0.25 Ám | 10 Áin | 3.25 mm | 0.128 " | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | Black | Through Hole | Wire Wrap | 2 | Side Mount Opening Unthreaded | -40 C | 105 ░C | Copper Alloy | 46 | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Dual | Gold | 92 | 0.25 Ám | 10 Áin | 3.25 mm | 0.128 " | |

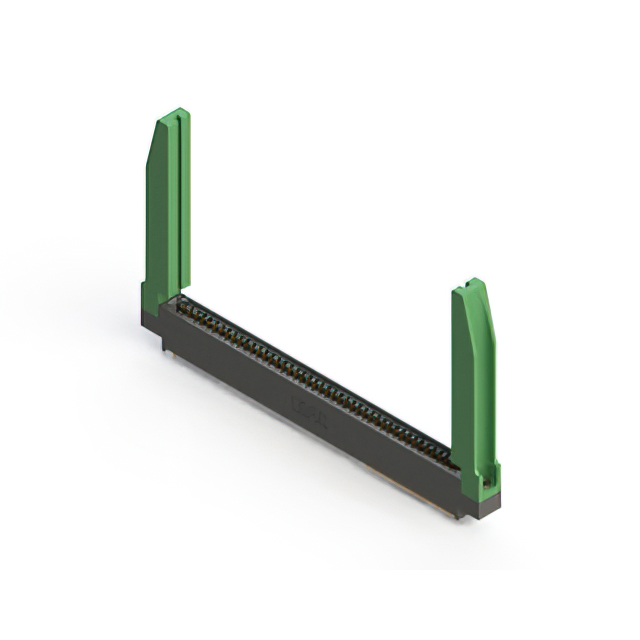

 EDAC Inc. | Polyester Thermoplastic | 2 | Female | Black | Through Hole | Solder | 2 | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Copper Alloy | 46 | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Dual | Gold | 92 | 0.25 Ám | 10 Áin | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | Black | Through Hole | Solder | 2 | Flush Mount Side Opening Unthreaded | -40 C | 105 ░C | Copper Alloy | 46 | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Dual | Gold | 92 | 0.25 Ám | 10 Áin | 3.25 mm | 0.128 " | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | Black | Through Hole | Solder | 2 | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Copper Alloy | 46 | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Dual | Gold | 92 | 0.25 Ám | 10 Áin | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | Black | Right Angle Through Hole | Solder | 2 | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Copper Alloy | 46 | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Dual | Gold | 92 | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | Black | Through Hole | Wire Wrap | 2 | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Copper Alloy | 46 | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Dual | Gold | 92 | 0.25 Ám | 10 Áin | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Female | Black | Right Angle Through Hole | Solder | 2 | -40 C | 105 ░C | Copper Alloy | 46 | Cantilever | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.1 " | 2.54 mm | Dual | Gold | 92 | 0.25 Ám | 10 Áin |
