1746679 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

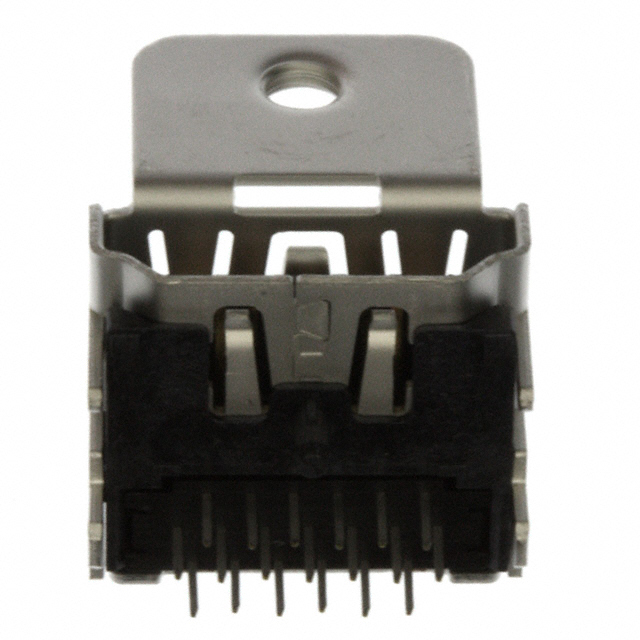

STD HDMI, RA, T/H, PANEL GRD, FLANGE
| Part | Gender | Insulation Color | Material Flammability Rating | Mounting Feature | Current Rating (Amps) | Voltage - Rated | Mounting Type | Connector Type | Shell/Shielding Material | Number of Contacts [custom] | Contact Finish | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Mating Cycles | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Receptacle | Black | UL94 V-0 | Flange Horizontal | 0.5 A | 40 VAC | Panel Mount Right Angle Through Hole | HDMI | Copper Alloy | 19 | Gold | Solder | 70 °C | -25 °C | 1 | 10000 | Board Guide |
