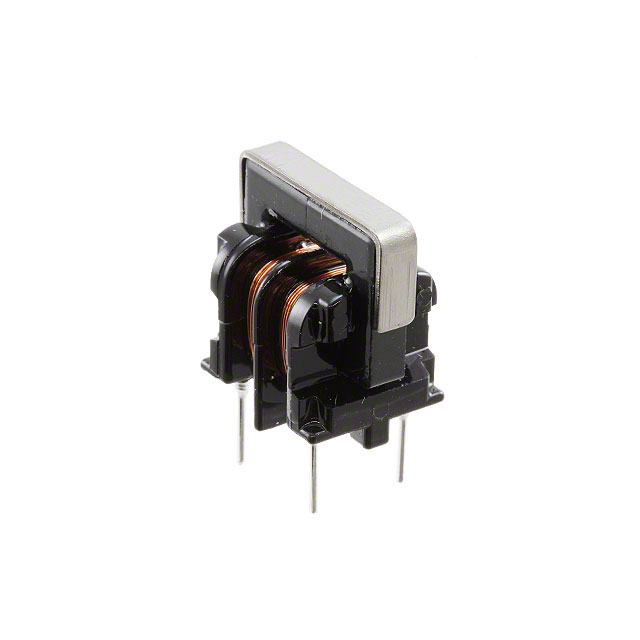

SU9VD Series

Manufacturer: KEMET

Catalog

CMC 30UH 700MA 2LN TH

Part	Height (Max) [z]	Height (Max) [z]	Mounting Type	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Max) [Max]	Filter Type	DC Resistance (DCR) (Max) [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - AC	Inductance @ Frequency
KEMET SU9VD-07030	17 mm	0.669 in	Through Hole	2	120 °C	-25 °C	700 mA	Power Line	150 mOhm	Vertical 4 PC Pin	17 mm	11 mm	0.669 in	0.433 in	250 V
KEMET SU9VD-07020	17 mm	0.669 in	Through Hole	2	120 °C	-25 °C	700 mA	Power Line	0.12 Ohm	Vertical 4 PC Pin	17 mm	11 mm	0.669 in	0.433 in	250 V	1 kHz 20 µH
