MAX98400 Series

Catalog

KIT EVAL FOR MAX98400A

Part	Utilized IC / Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Max Output Power x Channels @ Load	Supplied Contents	Output Type	Board Type	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load [x]	Features	Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Package / Case

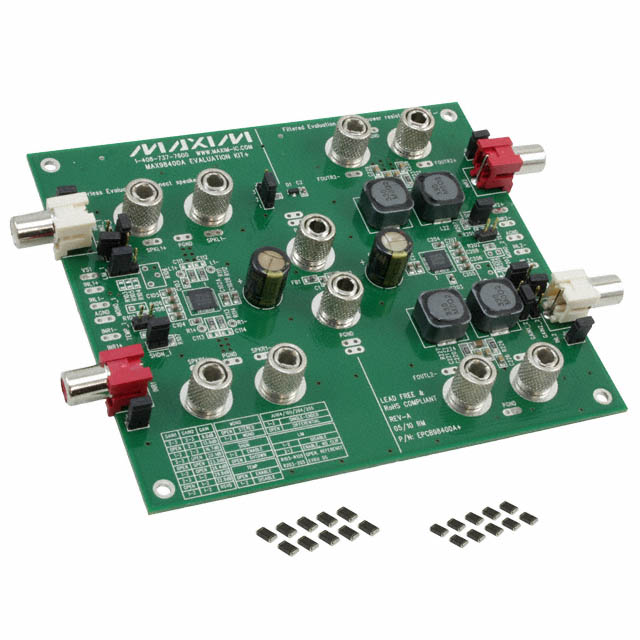

Analog Devices Inc./Maxim Integrated MAX98400AEVKIT+	MAX98400A	28 V	8 V	2 8 Ohm 20 W	Board(s)	2-Channel (Stereo)	Fully Populated

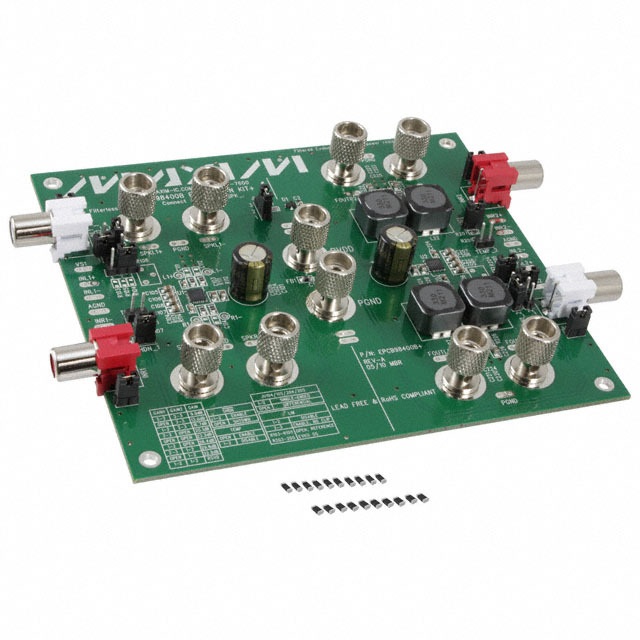

Analog Devices Inc./Maxim Integrated MAX98400BEVKIT+	MAX98400B	28 V	8 V	12 W	Board(s)	2-Channel (Stereo)	Fully Populated	8 Ohm	2
Analog Devices Inc./Maxim Integrated MAX98400BETG+		28 V	8 V	12 W		2-Channel (Stereo)		8 Ohm	2	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	Class D	85 °C	-40 °C	24-TQFN (4x4)	Surface Mount	24-WFQFN Exposed Pad
Analog Devices Inc./Maxim Integrated MAX98400AETX+		28 V	8 V	2 8 Ohm 20 W		2-Channel (Stereo)				Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	Class D	85 °C	-40 °C	36-TQFN (6x6)	Surface Mount	36-WFQFN Exposed Pad
Analog Devices Inc./Maxim Integrated MAX98400BETG+T		28 V	8 V	12 W		2-Channel (Stereo)		8 Ohm	2	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	Class D	85 °C	-40 °C	24-TQFN (4x4)	Surface Mount	24-WFQFN Exposed Pad
