326803 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

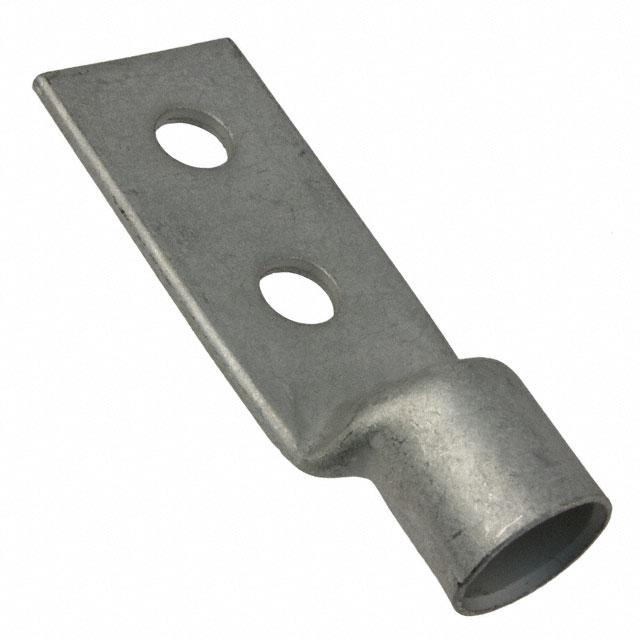

CONN TERM RECT TONG 4/0 AWG #3/8
| Part | Terminal Type | Length - Overall [x] | Length - Overall [x] | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Width - Outer Edges [y] | Width - Outer Edges [y] | Wire Gauge | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Contact Material | Termination | Insulation | Mounting Type | Stud/Tab Size | Terminal Style | Tab Thickness | Tab Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Rectangular Tongue | 87.88 mm | 3.46 in | 20.5 mm | 0.807 in | 30.23 mm | 1.19 in | 4 aught AWG | 9.91 mm | 0.39 in | 16.46 mm | 0.648 in | Copper | Barrel Crimp | Non-Insulated | Free Hanging (In-Line) | 3/8 Stud | Two Stud Holes | 0.13 in | 3.3 mm |
