M2T18SA Series

Catalog

SWITCH TOGGLE SPDT 0.4VA 28V

Part	Actuator Material	Electrical Life	Current Rating (Amps)	Illumination	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Actuator Type	Voltage Rating - DC	Switch Function	Bushing Thread	Termination Style	Circuit	Features	Actuator Length [x]
NKK Switches M2T18SA5G13	Brass Nickel Plated	50000 Cycles	0.4 VA	Non-Illuminated	Through Hole	85 °C	-30 ░C	28 V	Standard Round	28 V	Mom-Off-Mom	Unthreaded	PC Pin	SPDT	Process Sealed	0.5 in

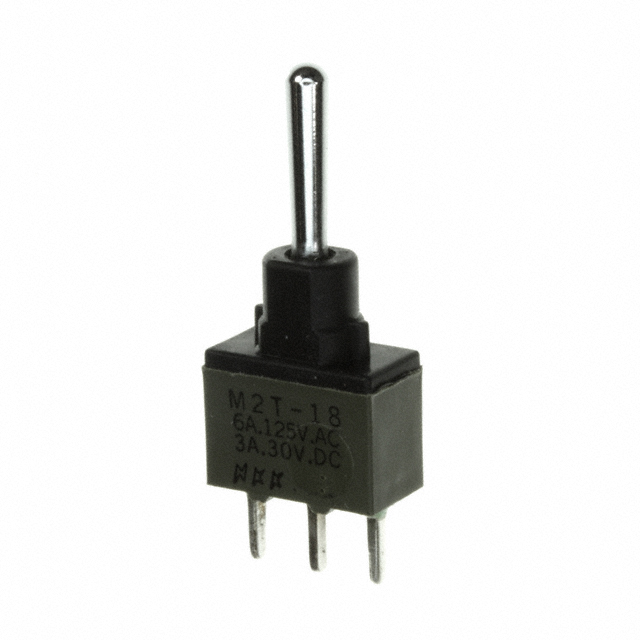

NKK Switches M2T18SA5W03	Brass Nickel Plated	25000 Steps	3 A 6 A	Non-Illuminated	Through Hole	85 °C	-30 ░C	125 V	Standard Round	30 V	Mom-Off-Mom	Unthreaded	PC Pin	SPDT	Process Sealed	0.5 in
NKK Switches M2T18SA5A13/C	Brass Chrome Plated	25000 Steps	3 A 6 A	Non-Illuminated	Through Hole	85 °C	-30 ░C	125 V	Standard Round	30 V	Mom-Off-Mom	Unthreaded	PC Pin	SPDT	Process Sealed	0.5 in

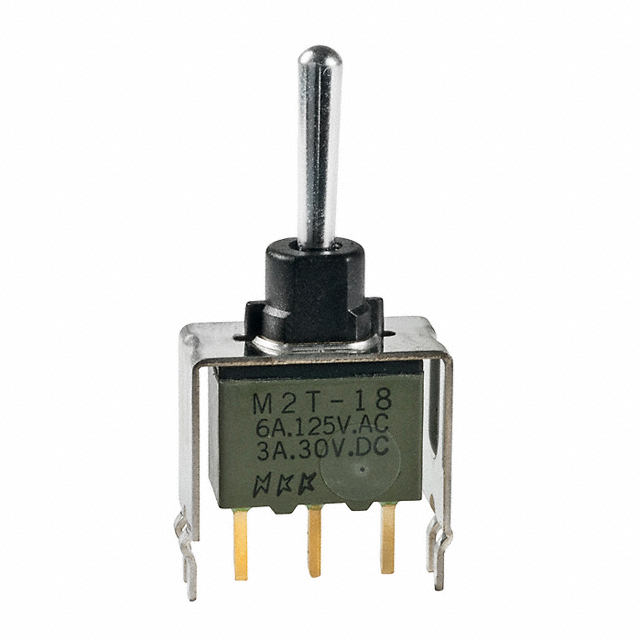

NKK Switches M2T18SA5A13	Brass Nickel Plated	25000 Steps	3 A 6 A	Non-Illuminated	Through Hole	85 °C	-30 ░C	125 V	Standard Round	30 V	Mom-Off-Mom	Unthreaded	PC Pin	SPDT	Process Sealed	0.5 in

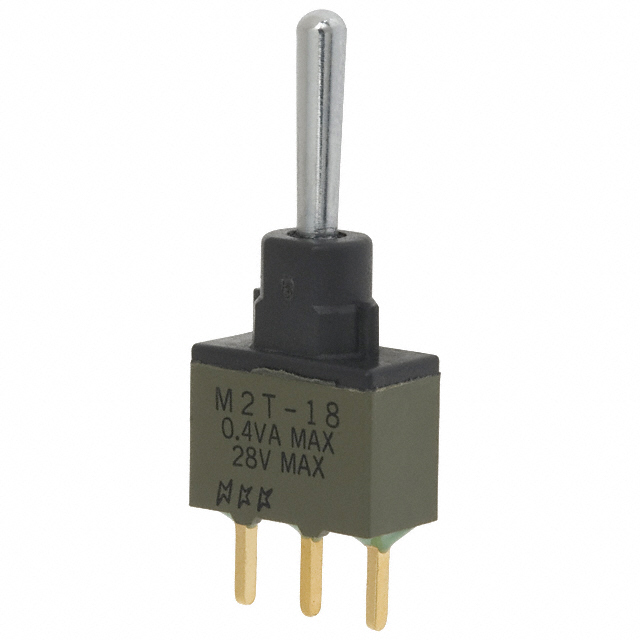

NKK Switches M2T18SA5G03	Brass Nickel Plated	50000 Cycles	0.4 VA	Non-Illuminated	Through Hole	85 °C	-30 ░C	28 V	Standard Round	28 V	Mom-Off-Mom	Unthreaded	PC Pin	SPDT	Process Sealed	0.5 in

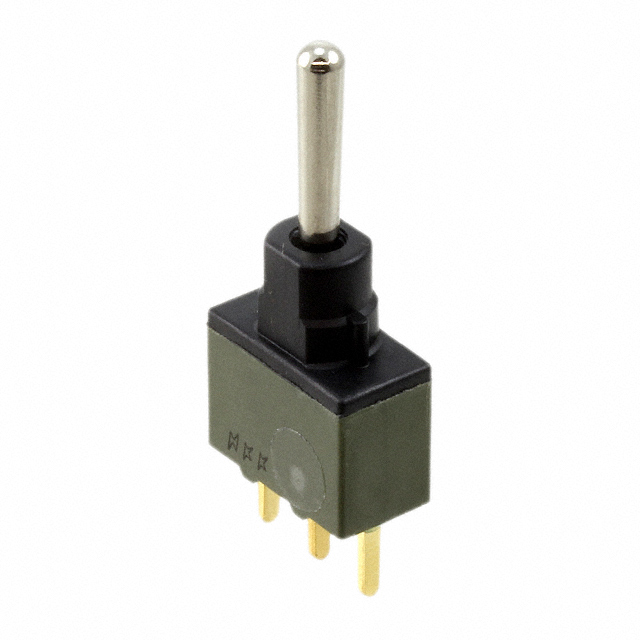

NKK Switches M2T18SA5A03	Brass Nickel Plated	25000 Steps	3 A 6 A	Non-Illuminated	Through Hole	85 °C	-30 ░C	125 V	Standard Round	30 V	Mom-Off-Mom	Unthreaded	PC Pin	SPDT	Process Sealed	0.5 in

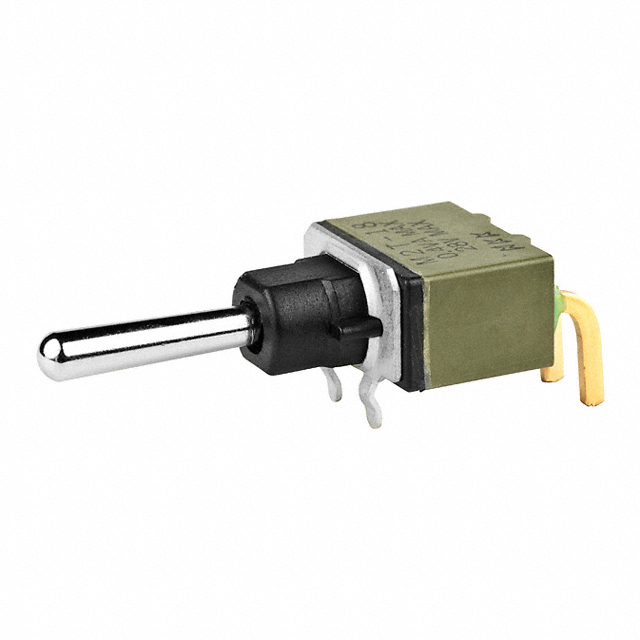

NKK Switches M2T18SA5G30	Brass Nickel Plated	50000 Cycles	0.4 VA	Non-Illuminated	Right Angle Through Hole	85 °C	-30 ░C	28 V	Standard Round	28 V	Mom-Off-Mom	Unthreaded	PC Pin	SPDT	Process Sealed	0.5 in
