ET225K Series

Catalog

TOGGLE SWITCH, DPST, 25A, 125VAC, PANEL ROHS COMPLIANT: YES

Part	Electrical Life	Panel Cutout Dimensions [diameter]	Actuator Type	Illumination	Termination Style	Voltage Rating - AC	Actuator Length [x]	Circuit	Mounting Type	Bushing Thread	Current Rating (Amps)	Switch Function
Nidec Components Corporation ET225K12-Z	20000 Steps	12.5 mm	Standard Round	Non-Illuminated	Solder Lug	125 V	17 mm	DPST	Panel Mount	M12 x 1	25 A	On-Off

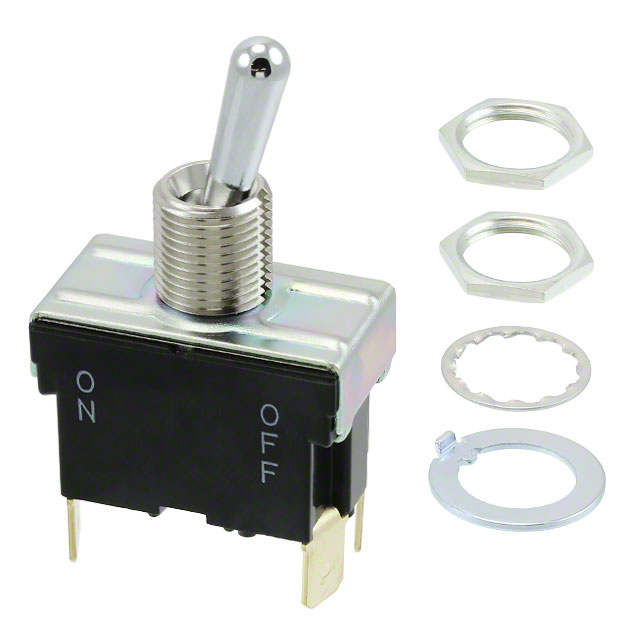

Nidec Components Corporation ET225K-Z	20000 Steps	12.5 mm	Standard Round	Non-Illuminated	Quick Connect - 0.250" (6.3mm)	125 V	17 mm	DPST	Panel Mount	M12 x 1	25 A	On-Off

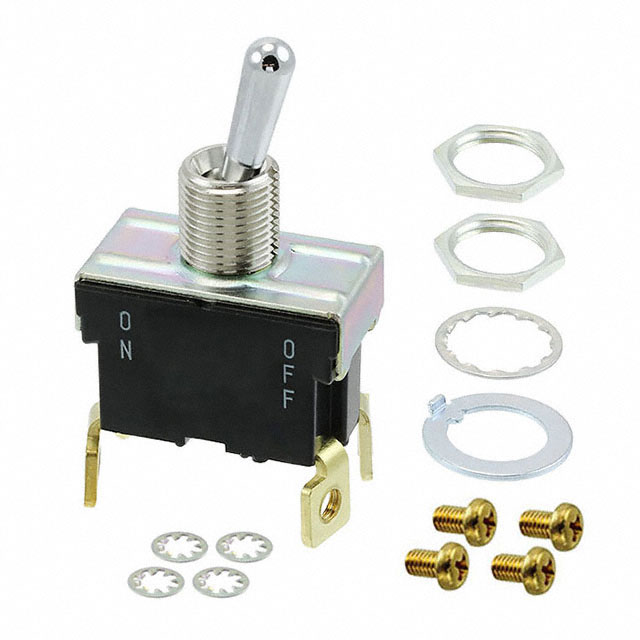

Nidec Components Corporation ET225K10-Z	20000 Steps	12.5 mm	Standard Round	Non-Illuminated	Screw Terminal	125 V	17 mm	DPST	Panel Mount	M12 x 1	25 A	On-Off
