6609948 Series
Manufacturer: TE Connectivity Corcom Filters
Beta
⌘K

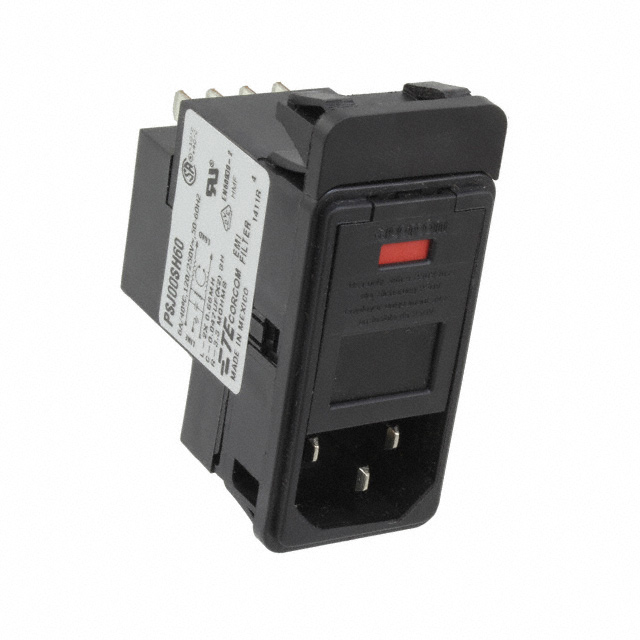

PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Connector Style | Filter Type | Approval Agency | Connector Type | Current Rating - Filter | Accomodates a Fuse | Voltage Rating - Appliance Inlet | Panel Cutout Dimensions | Mounting Type | Current Rating - Appliance Inlet | Fuse Holder, Drawer | Features | Termination | Termination | Termination | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Switch Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Corcom Filters | IEC 320-C14 | Filtered (EMI RFI) - Commercial Medical | CSA UL VDE | Receptacle Male Blades - Module | 6 A | 120 VAC | Variable Size | Panel Mount Snap-In | 6 A | Fuse Holder | Conversion Clip | Quick Connect | 0.187 " | 4.7 mm | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | ||
 TE Connectivity Corcom Filters | IEC 320-C14 | Filtered (EMI RFI) - Commercial | CSA UL VDE | Receptacle Male Blades - Module | 6 A | 120 VAC | Panel Mount Snap-In | 6 A | Twin Fused | Voltage Selector | Quick Connect | 0.187 " | 4.7 mm | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Switch On-Off | ||
TE Connectivity Corcom Filters | IEC 320-C14 | Filtered (EMI RFI) - Commercial Medical | CSA UL VDE | Receptacle Male Blades - Module | 3 A | 120 VAC | Panel Mount Snap-In | 3 A | Fuse Holder | Conversion Clip | Quick Connect | 0.187 " | 4.7 mm | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | |||
TE Connectivity Corcom Filters | IEC 320-C14 | Filtered (EMI RFI) - Commercial Medical | CSA UL VDE | Receptacle Male Blades - Module | 3 A | 120 VAC | Panel Mount Snap-In | 3 A | Twin Fused | Voltage Selector | Quick Connect | 0.187 " | 4.7 mm | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Switch On-Off | ||
TE Connectivity Corcom Filters | IEC 320-C14 | Filtered (EMI RFI) - Commercial | CSA UL VDE | Receptacle Male Blades - Module | 10 A | 120 VAC | Panel Mount Snap-In | 10 A | Twin Fused | Voltage Selector | Quick Connect | 0.187 " | 4.7 mm | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Switch On-Off | ||
TE Connectivity Corcom Filters | IEC 320-C14 | Filtered (EMI RFI) - Commercial Medical | CSA UL VDE | Receptacle Male Blades - Module | 10 A | 120 VAC | Panel Mount Snap-In | 10 A | Twin Fused | Voltage Selector | Quick Connect | 0.187 " | 4.7 mm | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Switch On-Off | ||
TE Connectivity Corcom Filters | IEC 320-C14 | Filtered (EMI RFI) - Commercial Medical | CSA UL VDE | Receptacle Male Blades - Module | 10 A | 120 VAC | Panel Mount Snap-In | 10 A | Twin Fused | Voltage Selector | Quick Connect | 0.187 " | 4.7 mm | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Switch On-Off | ||
TE Connectivity Corcom Filters | IEC 320-C14 | Filtered (EMI RFI) - Commercial Medical | CSA UL VDE | Receptacle Male Blades - Module | 10 A | 120 VAC | Panel Mount Snap-In | 10 A | Fuse Holder | Conversion Clip Voltage Selector | Quick Connect | 0.187 " | 4.7 mm | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Switch On-Off | ||
TE Connectivity Corcom Filters | IEC 320-C14 | Filtered (EMI RFI) - Commercial | CSA UL VDE | Receptacle Male Blades - Module | 3 A | 120 VAC | Panel Mount Snap-In | 3 A | Fuse Holder | Conversion Clip Voltage Selector | Quick Connect | 0.187 " | 4.7 mm | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Switch On-Off | ||
TE Connectivity Corcom Filters | IEC 320-C14 | Filtered (EMI RFI) - Commercial | CSA UL VDE | Receptacle Male Blades - Module | 10 A | 120 VAC | Panel Mount Snap-In | 10 A | Fuse Holder | Conversion Clip Voltage Selector | Quick Connect | 0.187 " | 4.7 mm | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | Switch On-Off |
