2842163 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

12P,2MM,BRK HDR,DRRT,2.8,0.38AU,

Part	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Fastening Type	Material Flammability Rating	Contact Finish - Mating	Current Rating (Amps)	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Mounting Type	Contact Length - Post [x]	Contact Length - Post	Insulation Color	Termination	Contact Material	Voltage Rating	Contact Shape	Insulation Material	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Connector Type	Number of Positions	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating	Contact Length - Mating	Number of Positions

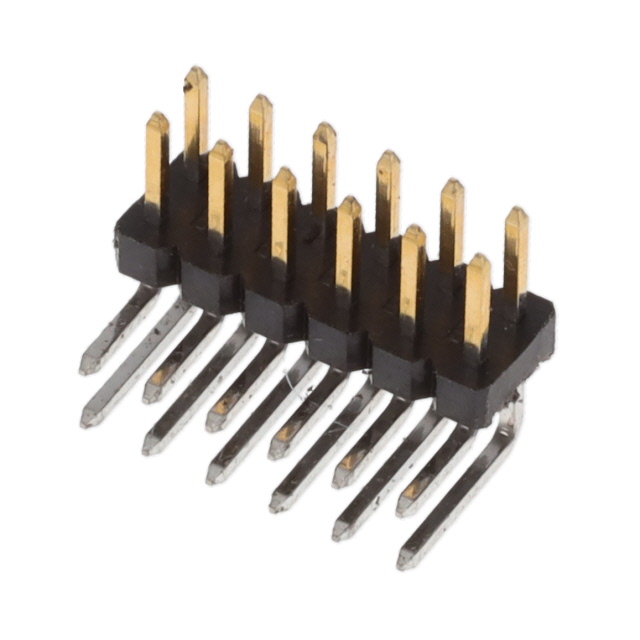

TE Connectivity Raychem Cable Protection 2842163-6	0.079 in	2 mm	Tin	Push-Pull	UL94 V-0	Gold	2 A	All	0.079 in	2 mm	15 µin	0.38 µm	2	Through Hole Right Angle	0.11 in	2.79 mm	Black	Solder	Copper Alloy	125 VAC	Square	Thermoplastic	Unshrouded	2 çm	78.7 çin	Male Pin	Breakaway Header	12	1.5 mm	0.059 "	125 °C	-40 °C	4 mm	0.157 in

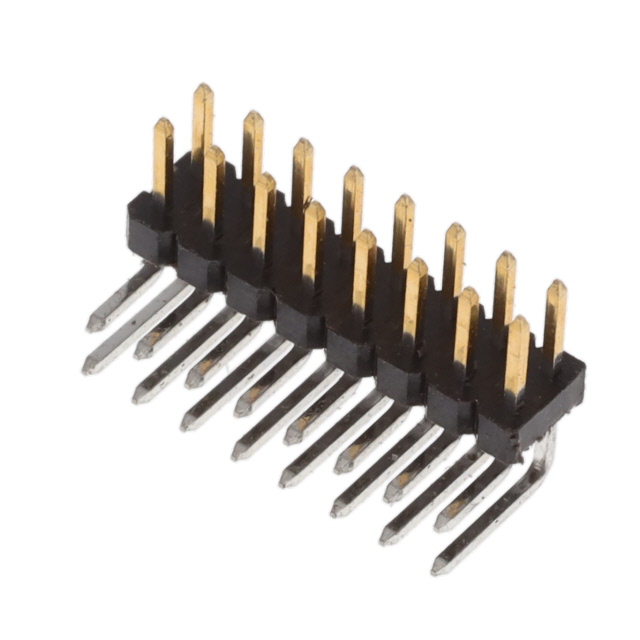

TE Connectivity Raychem Cable Protection 2842163-8	0.079 in	2 mm	Tin	Push-Pull	UL94 V-0	Gold	2 A	All	0.079 in	2 mm	15 µin	0.38 µm	2	Through Hole Right Angle	0.11 in	2.79 mm	Black	Solder	Copper Alloy	125 VAC	Square	Thermoplastic	Unshrouded	2 çm	78.7 çin	Male Pin	Breakaway Header		1.5 mm	0.059 "	125 °C	-40 °C	4 mm	0.157 in	16
TE Connectivity Raychem Cable Protection 1-2842163-0	0.079 in	2 mm	Tin	Push-Pull	UL94 V-0	Gold	2 A	All	0.079 in	2 mm	15 µin	0.38 µm	2	Through Hole Right Angle	0.11 in	2.79 mm	Black	Solder	Copper Alloy	125 VAC	Square	Thermoplastic	Unshrouded	2 çm	78.7 çin	Male Pin	Breakaway Header	20	1.5 mm	0.059 "	125 °C	-40 °C	4 mm	0.157 in

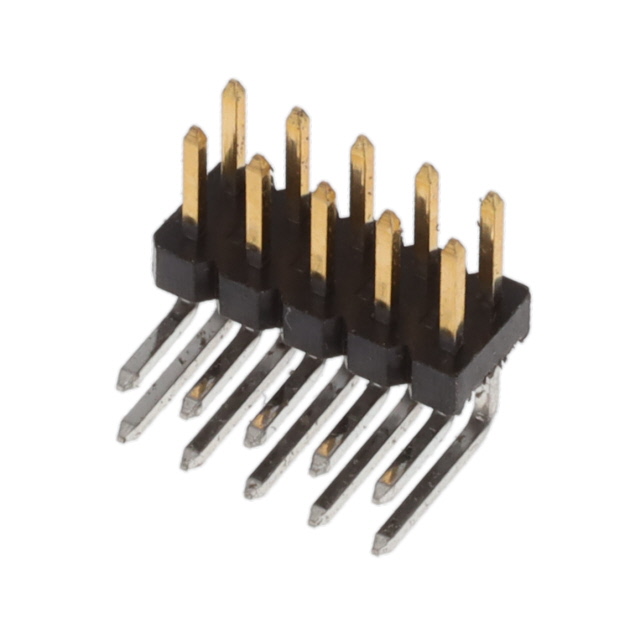

TE Connectivity Raychem Cable Protection 2842163-5	0.079 in	2 mm	Tin	Push-Pull	UL94 V-0	Gold	2 A	All	0.079 in	2 mm	15 µin	0.38 µm	2	Through Hole Right Angle	0.11 in	2.79 mm	Black	Solder	Copper Alloy	125 VAC	Square	Thermoplastic	Unshrouded	2 çm	78.7 çin	Male Pin	Breakaway Header	10	1.5 mm	0.059 "	125 °C	-40 °C	4 mm	0.157 in

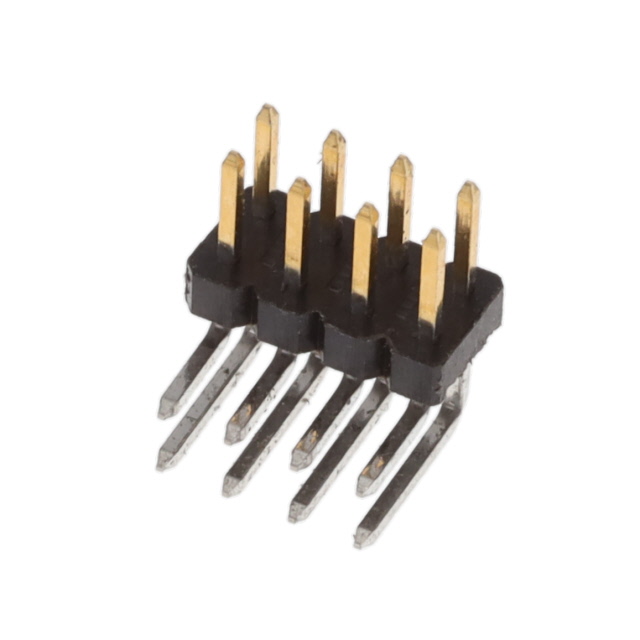

TE Connectivity Raychem Cable Protection 2842163-4	0.079 in	2 mm	Tin	Push-Pull	UL94 V-0	Gold	2 A	All	0.079 in	2 mm	15 µin	0.38 µm	2	Through Hole Right Angle	0.11 in	2.79 mm	Black	Solder	Copper Alloy	125 VAC	Square	Thermoplastic	Unshrouded	2 çm	78.7 çin	Male Pin	Breakaway Header	8	1.5 mm	0.059 "	125 °C	-40 °C	4 mm	0.157 in

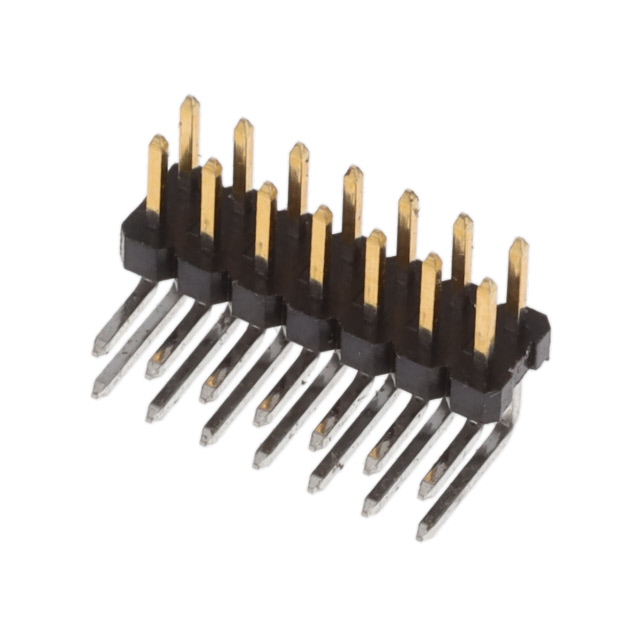

TE Connectivity Raychem Cable Protection 2842163-7	0.079 in	2 mm	Tin	Push-Pull	UL94 V-0	Gold	2 A	All	0.079 in	2 mm	15 µin	0.38 µm	2	Through Hole Right Angle	0.11 in	2.79 mm	Black	Solder	Copper Alloy	125 VAC	Square	Thermoplastic	Unshrouded	2 çm	78.7 çin	Male Pin	Breakaway Header	14	1.5 mm	0.059 "	125 °C	-40 °C	4 mm	0.157 in
TE Connectivity Raychem Cable Protection 2842163-3	0.079 in	2 mm	Tin	Push-Pull	UL94 V-0	Gold	2 A	All	0.079 in	2 mm	15 µin	0.38 µm	2	Through Hole Right Angle	0.11 in	2.79 mm	Black	Solder	Copper Alloy	125 VAC	Square	Thermoplastic	Unshrouded	2 çm	78.7 çin	Male Pin	Breakaway Header	6	1.5 mm	0.059 "	125 °C	-40 °C	4 mm	0.157 in

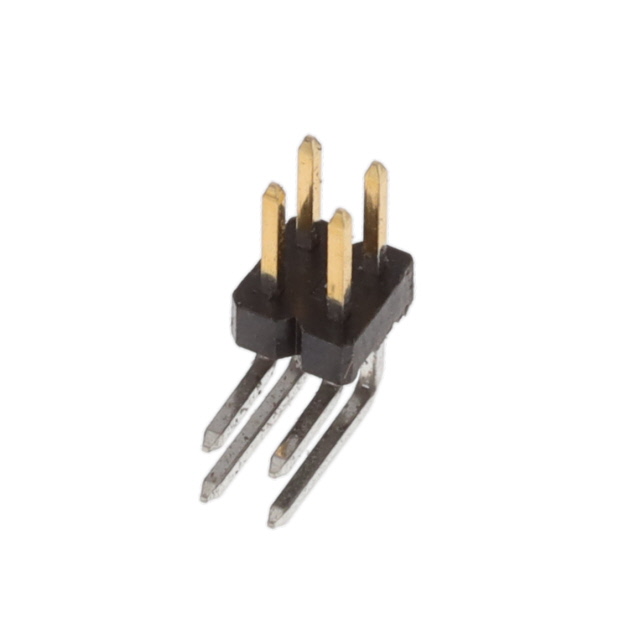

TE Connectivity Raychem Cable Protection 2842163-2	0.079 in	2 mm	Tin	Push-Pull	UL94 V-0	Gold	2 A	All	0.079 in	2 mm	15 µin	0.38 µm	2	Through Hole Right Angle	0.11 in	2.79 mm	Black	Solder	Copper Alloy	125 VAC	Square	Thermoplastic	Unshrouded	2 çm	78.7 çin	Male Pin	Breakaway Header	4	1.5 mm	0.059 "	125 °C	-40 °C	4 mm	0.157 in
