PMA15F Series

Catalog

SWITCHING POWER SUPPLIES 15W 5V 3A AC-DC POWER SUPPLY

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Isolation	Efficiency	Current - Output 1	Type	Number of Outputs	Voltage - Output 1	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency
Cosel USA, Inc. PMA15F-5	70 °C	-10 °C	Chassis Mount	2000 V	74 %	3 A	Open Frame	1	5 V	Medical	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	CE cURus TUV
Cosel USA, Inc. PMA15F-5-T1N	70 °C	-10 °C	Chassis Mount	2000 V	74 %	3 A	Enclosed	1	5 V	Medical	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	CE cURus TUV
Cosel USA, Inc. PMA15F-15-T	70 °C	-10 °C	Chassis Mount	2000 V	79 %	1 A	Open Frame	1	15 V	Medical	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	CE cURus TUV
Cosel USA, Inc. PMA15F-3R3-TN	70 °C	-10 °C	Chassis Mount	2000 V	67 %	3 A	Enclosed	1	3.3 V	Medical	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	CE cURus TUV
Cosel USA, Inc. PMA15F-3R3-J1	70 °C	-10 °C	Chassis Mount	2000 V	67 %	3 A	Open Frame	1	3.3 V	Medical	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	CE cURus TUV
Cosel USA, Inc. PMA15F-5-T1	70 °C	-10 °C	Chassis Mount	2000 V	74 %	3 A	Open Frame	1	5 V	Medical	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	CE cURus TUV

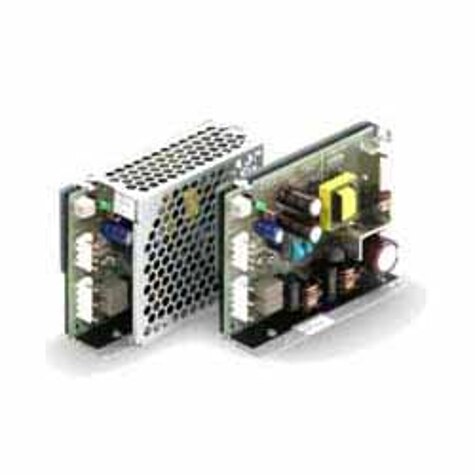

Cosel USA, Inc. PMA15F-15	70 °C	-10 °C	Chassis Mount	2000 V	79 %	1 A	Open Frame	1	15 V	Medical	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	CE cURus TUV

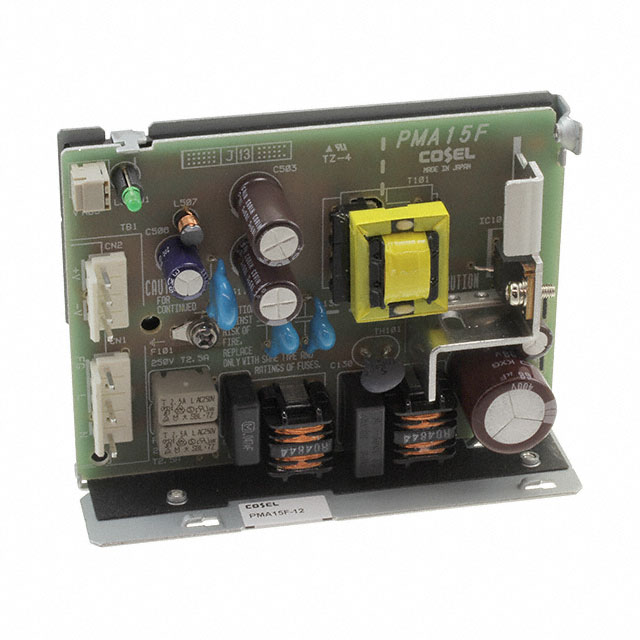

Cosel USA, Inc. PMA15F-12	70 °C	-10 °C	Chassis Mount	2000 V	78 %	1.3 A	Open Frame	1	12 V	Medical	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	CE cURus TUV
Cosel USA, Inc. PMA15F-12-T1	70 °C	-10 °C	Chassis Mount	2000 V	78 %	1.3 A	Open Frame	1	12 V	Medical	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	CE cURus TUV
Cosel USA, Inc. PMA15F-5-J1N	70 °C	-10 °C	Chassis Mount	2000 V	74 %	3 A	Enclosed	1	5 V	Medical	31 mm	3.07 in	78 mm	103.1 mm	1.22 in	4.06 in	CE cURus TUV
