NHD-3.12 Series

Catalog

OLED GRAPH MULTIFONT BLUE 3.12

Part	Graphics Color	Dot Pixels [x]	Dot Pixels [y]	Viewing Area [y]	Viewing Area [x]	Background Color	Display Type	Interface	Controller Type	Diagonal Screen Size	Diagonal Screen Size	Dot Size [y]	Dot Size [x]	Dot Pitch [custom]	Dot Pitch [custom]

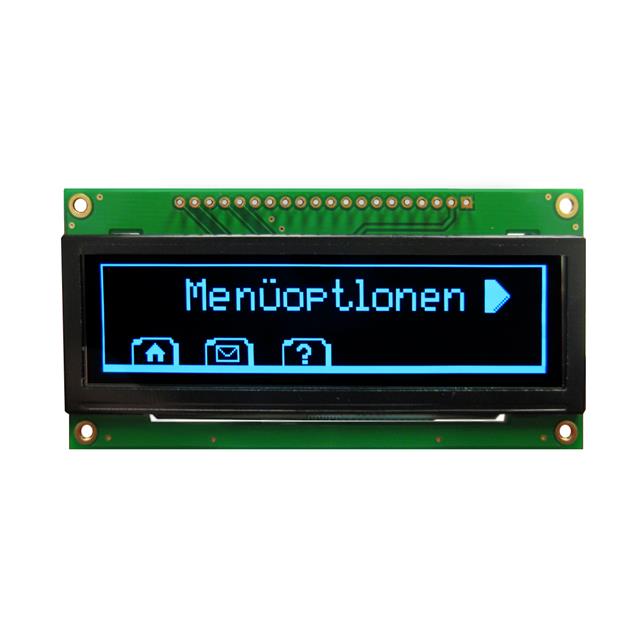

Newhaven Display Intl NHD-3.12-25664UMB3	Blue	256	64	22 mm	82 mm	Black (Blue - Inverted)	OLED - Passive Matrix	Parallel/Serial	SSD1322	3.12 in	79.25 mm
Newhaven Display Intl NHD-3.12-25664UMY3	Yellow	256	64	22 mm	82 mm	Black	OLED - Passive Matrix	Parallel/Serial	SSD1322	3.12 in	79.25 mm

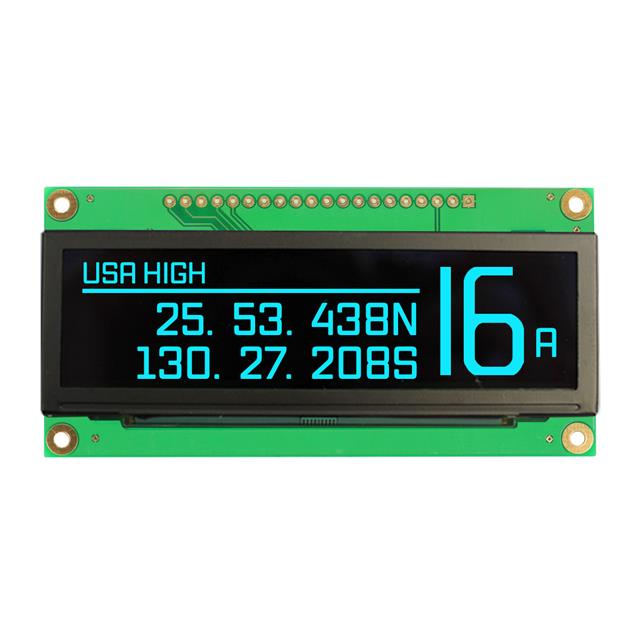

Newhaven Display Intl NHD-3.12-25664UCB2	Blue	256	64	22 mm	82 mm	Black	OLED - Passive Matrix	8-Bit Parallel SPI	SSD1322	3.12 in	79.25 mm	0.28 mm	0.28 mm	0.3 mm	0.3 mm

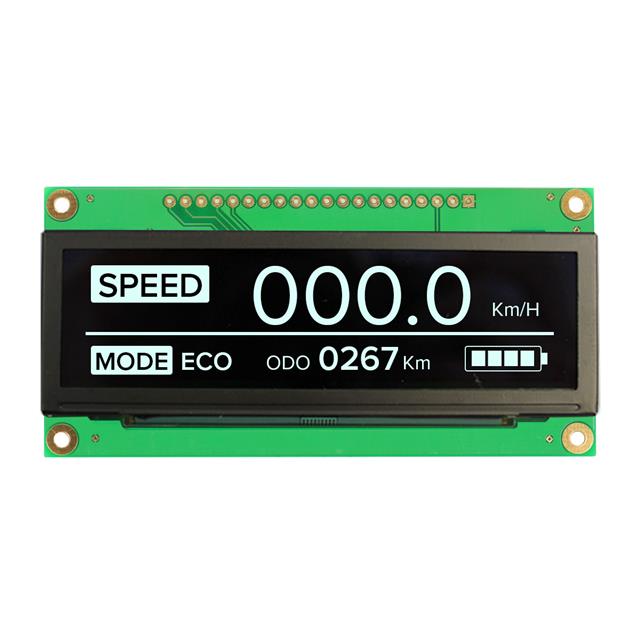

Newhaven Display Intl NHD-3.12-25664UCW2	White	256	64	22 mm	82 mm		OLED - Passive Matrix	Parallel Serial	SSD1322	3.12 in	79.25 mm

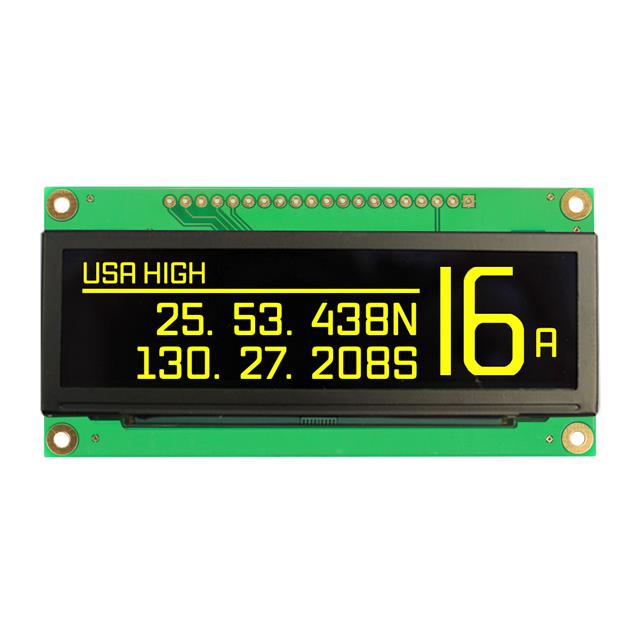

Newhaven Display Intl NHD-3.12-25664UCY2	Yellow	256	64	22 mm	82 mm	Black	OLED - Passive Matrix	8-Bit Parallel SPI	SSD1322	3.12 in	79.25 mm	0.28 mm	0.28 mm	0.3 mm	0.3 mm
